Specifications
Place of Origin :
Guangdong, China
Model Number :
CL-305CS
MOQ :
100
warranty :
3years
dimension :
245*150
power source :
Other
output power :
30/15/7.5/3.8W/8ohm
Shell Material :
ABS
the body material :
plastic
Radio function :
NO
Special Feature :
Waterproof
Operating Voltage :
8ohm
Installation :
Flush Mount
Impedance :
8ohm
Frequency response :
80-20KHz
Magnet Material :
Ferrite, Neodymium
Description

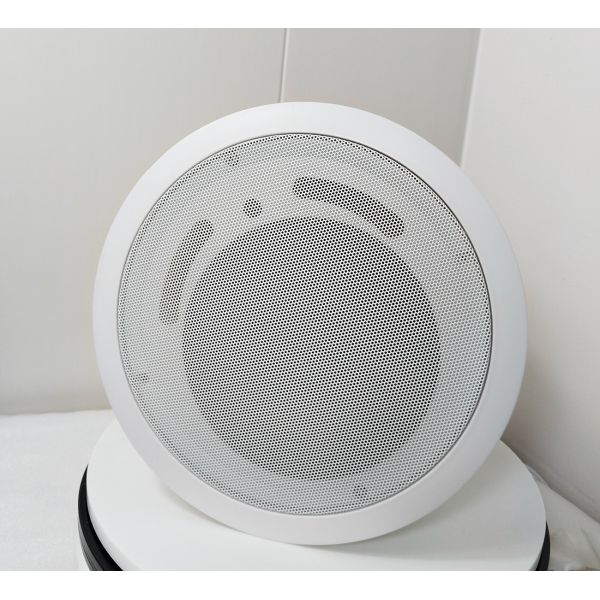

High Quality 5 Inch Coaxial Flush Mount Ceiling Speaker ABS White with Neodymium Magnet 8ohm Impedance
CL-305CS 5 Inch Coaxial Flush Mount Ceiling Speaker ABS White with Neodymium Magnet 8ohm Impedance
Product Overview
The CL-305CS is a high-performance 5-inch coaxial ceiling speaker designed for commercial applications including hotels, coffee shops, and bars. Combining advanced design with reliable performance and easy installation, it delivers exceptional audio quality for business environments.
Key Features
Structural and Design Features

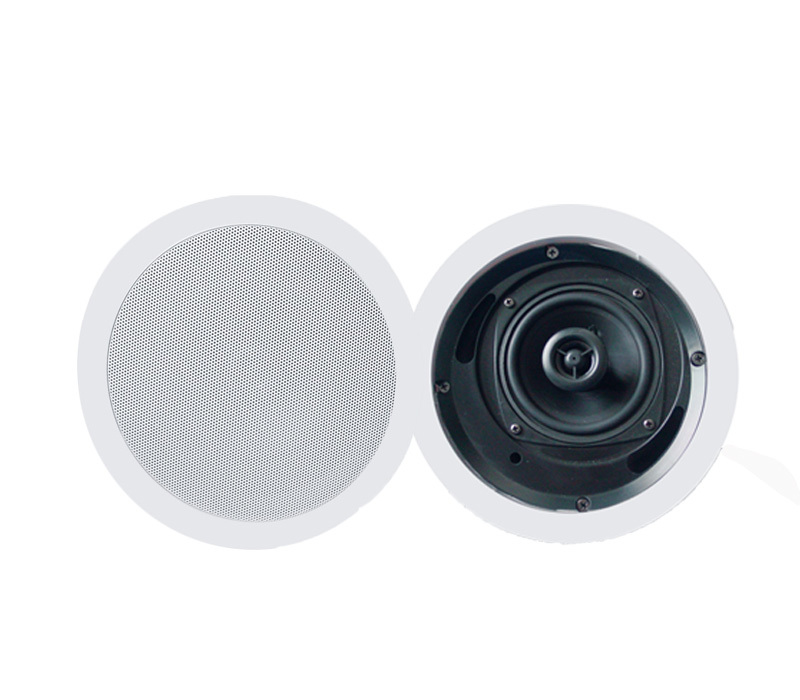

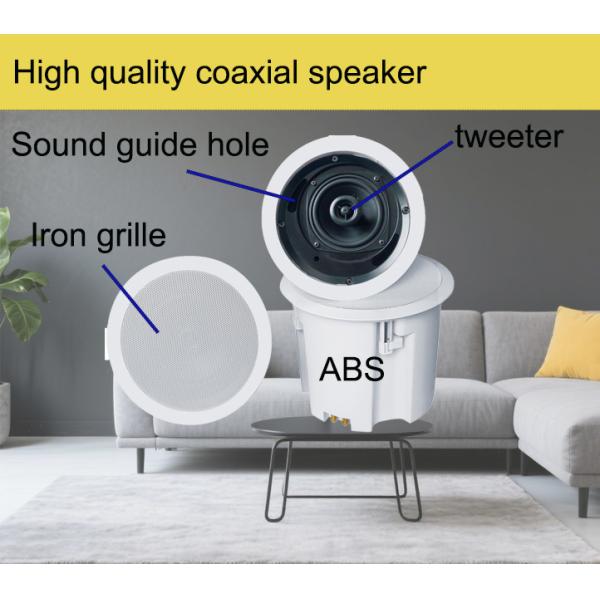

  • 5-inch coaxial speaker unit with metal grille, ABS baffle, and white ABS back cover for durability and aesthetic appeal
  • Phase-reflect design enhances stereo sound quality and creates immersive audio experiences
Performance Specifications
  • Power options: 30/15/7.5/3.8W with 8-ohm impedance, compatible with 100V/70V systems
  • 89dB sensitivity for efficient sound conversion and clear audio output
  • Frequency range: 80-20KHz for full-spectrum sound reproduction from deep bass to crisp highs
Installation and Dimensions

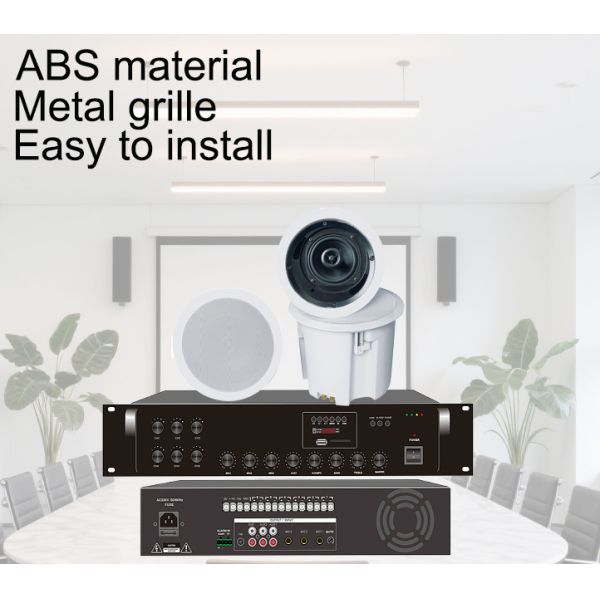

  • Flush-mount design for easy ceiling installation and space-saving integration

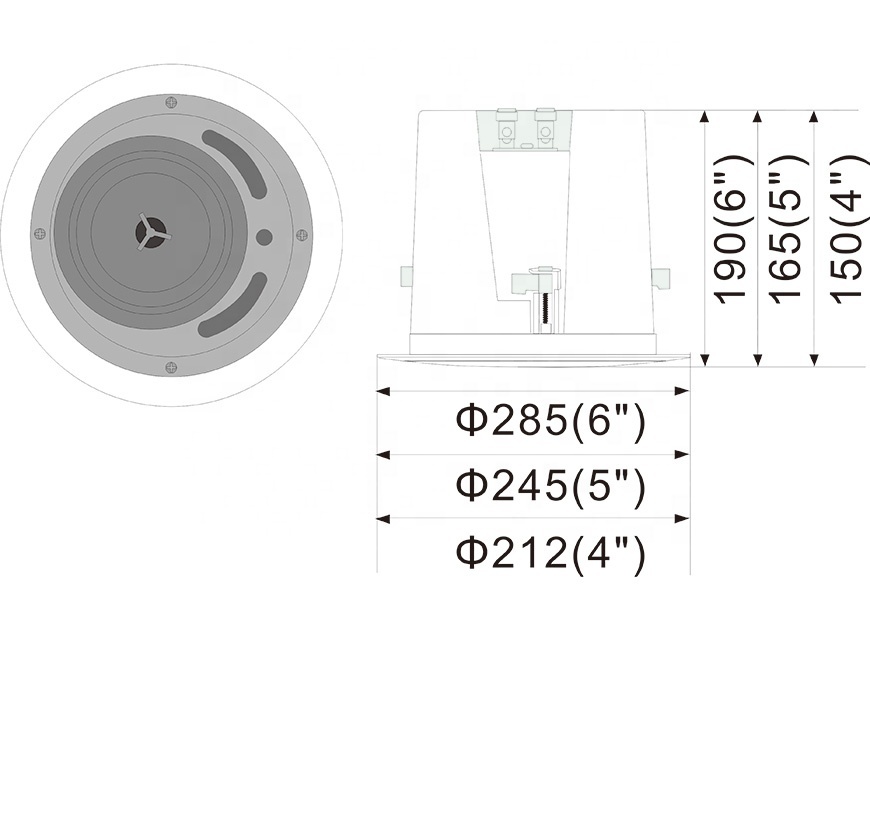

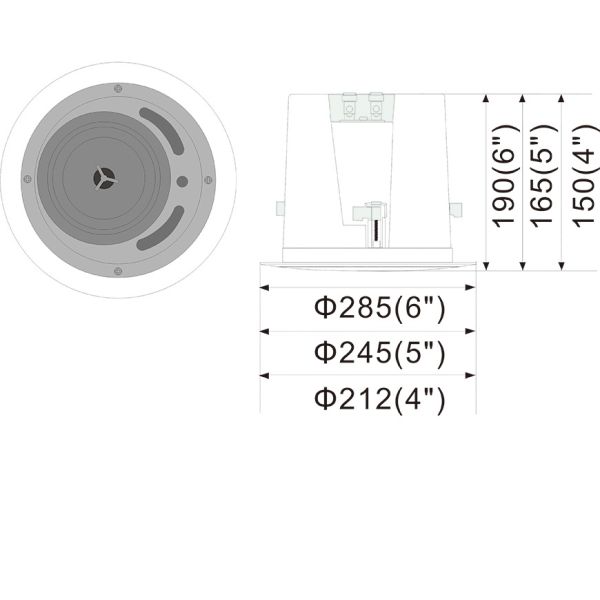

  • Product dimensions: 245×150mm (Mounting hole: 210mm)
  • Weight: 2kg - lightweight yet durable for commercial applications
Model Comparison
Model Speaker Size Power Voltage Sensitivity

Frequency

Response

Dimension

(mm)

 Material

Mounting

Hole
CL-304C 4" Coaxial 20W 8ohm 88DB 90-20KHz 220×165 ABS 180
CL-305C 5" Coaxial 30W 8ohm 89DB 80-20KHz 245×150 ABS 210
CL-306C 8" Coaxial 40W 8ohm 90DB 70-20KHz 285×190 ABS 250
CL-304CS 4" Coaxial 20/10/5/2.5W/8ohm 100V/70V 88DB 90-20KHz 220×165 ABS 180
CL-305CS 5" Coaxial 30/15/7.5/3.8W/8ohm 100V/70V 89DB 80-20KHz 245×150 ABS 210
CL-306CS 8" Coaxial 30/15/7.5/3.8W/8ohm 100V/70V 90DB 70-20KHz 285×190 ABS 250
