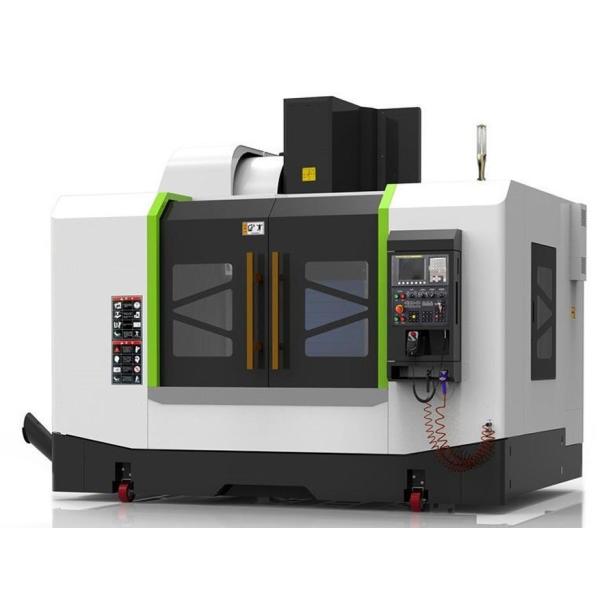

Automatic Vmc650 CNC Vertical Milling Machine with Fanuc Control System
Automatic Vmc650 CNC Vertical Milling Machine with Fanuc Control System
Automatic Vmc650 CNC Vertical Milling Machine with Fanuc Control System
Automatic Vmc650 CNC Vertical Milling Machine with Fanuc Control System
Automatic Vmc650 CNC Vertical Milling Machine with Fanuc Control System
Automatic Vmc650 CNC Vertical Milling Machine with Fanuc Control System
Automatic Vmc650 CNC Vertical Milling Machine with Fanuc Control System
Automatic Vmc650 CNC Vertical Milling Machine with Fanuc Control System
Automatic Vmc650 CNC Vertical Milling Machine with Fanuc Control System
Automatic Vmc650 CNC Vertical Milling Machine with Fanuc Control System
Automatic Vmc650 CNC Vertical Milling Machine with Fanuc Control System
Automatic Vmc650 CNC Vertical Milling Machine with Fanuc Control System
Specifications
Certification :
ISO 9001
Place of Origin :
China
Brand Name :
TOSUN
MOQ :
1 unit
Price :
Negotiable
Packaging Details :
Wooden Case
Delivery Time :
Peak Season Lead Time: within 15 workdays, Off Season Lead Time: within 15 workdays
Payment Terms :
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Supply Ability :
1000PCS/Year
Model NO. :
VMC650
Milling Cutter Structure :
Integral
Controlling Mode :
CNC
Automatic Grade :
Automatic
Precision :
High Precision
Condition :
New
Transport Package :
Wooden Case
Specification :
2670× 2078× 2000mm
Trademark :
TOSUN
Origin :
China
HS Code :
8457101000
After-sales Service :
Online and Video Support
Warranty :
1 Year
Type :
Worktable Milling Machine
Object :
Tool
Structure :
Bed type
Milling Cutter Type :
Vertical Milling Cutter
Customization :
Available | Customized Request
Description

Product Description

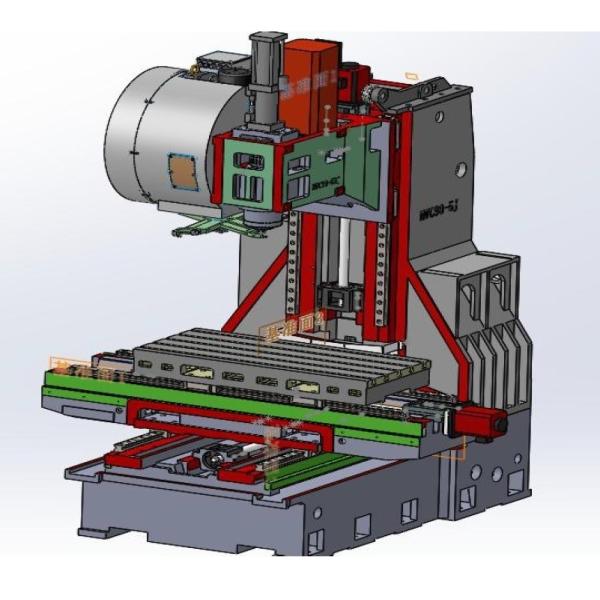

  1. The machine tool base, columns, spindle box, cross slide, and worktable are all made of high-strength lost foam casting technology. The internal metallographic structure is stable, ensuring the high stability of the basic parts. The casting structure has undergone machine tool dynamics analysis and finite element analysis to make its geometric structure more reasonable, and the appropriate matching with the reinforcing ribs ensures the high rigidity of the basic parts.
  2. Use high-rigidity and high-precision spindle from Taiwan KENTURN.
  3. Use high-precision and high-strength ball screws from Taiwan.
  4. The X, Y, and Z axes use Taiwan 45mm roller linear rails, and the slides are widened and enlarged. The roller heavy-duty linear rail can not only meet the customer's requirements for fast speed and high precision, but also can perform powerful cutting, while also increasing the service life.
  5. The machine is equipped with a sealed guide rail protective cover to effectively protect the guide rails and screws and extend their service life.
  6. The machine tool is equipped with three-dimensional full protection to ensure no vibration during strong chip cutting.
  7. Use Japanese FANUC CNC operating system, paired with an absolute servo motor, ensuring high stability, fast speed, smooth surface, and high precision.
  8. Double-pump automatic lubrication system: The guide rail lubrication uses a volume distributor with oil injection to supply the oil required for the guide rail regularly and quantitatively, reducing the waste of lubricating oil. The water tank is equipped with an oil-water separator to avoid environmental pollution.
  9. High-precision pitch compensation. At the same time, advanced ballbar is used to optimize the accuracy when processing circles and curved surfaces.

Product Parameters

Item Unit Description
Spindle Belt spindle specifications BT40-150
Speed r/min 50~8000
Spindle end face to worktable mm 120-670
Spindle center to column mm 625
Worktable Worktable size mm 900×460
T-slot number, width and spacing mm 5×18×100
Max. load kg 400
Guide rail Guide rail type Roller linear guide for X, Y, Z axis
Guide rail width for X, Y, Z axis mm 35/35/45
Roller guide screw X axis mm φ40×16 C3
Y axis mm φ40×16 C3
Z axis mm φ40×16 C3
Travel X axis mm 650
Y axis mm 450
Z axis mm 450
Fast moving speed X axis m/min 24
Y axis m/min 24
Z axis m/min 22
Cutting feed speed m/min 1-8000
Control system FANUC 0i-MF plus
Servo motor Spindle motor KW 7.5/11KW
X, Y axis servo motor KW 1.8/1.8
Z axis servo motor KW 3
Positioning accuracy for X, Y, Z axis mm 300/±0.005
Repeatability accuracy for X, Y, Z axis mm 300/±0.003
Air pressure MPa 0.6-0.8
Machine weight kg 5500
Machine size(L×W×H) mm 2670×2078×2000mm

Equipment Configurations
No. Name No. Name
1 Spindle pneumatic loose broach 8 Z-direction stainless steel cover
2 Handheld air gun 9 Anchor bolts and pads
3 Automatic lubrication system 10 Cooling horizontal water pump 270W
4 LED warning light 11 Rigid tapping
5 Electrical box dustproof device 12 RS-232 interface and USB function
6 24V work light 13 Power distribution box safety lock
7 XY guide rail stainless steel guard
