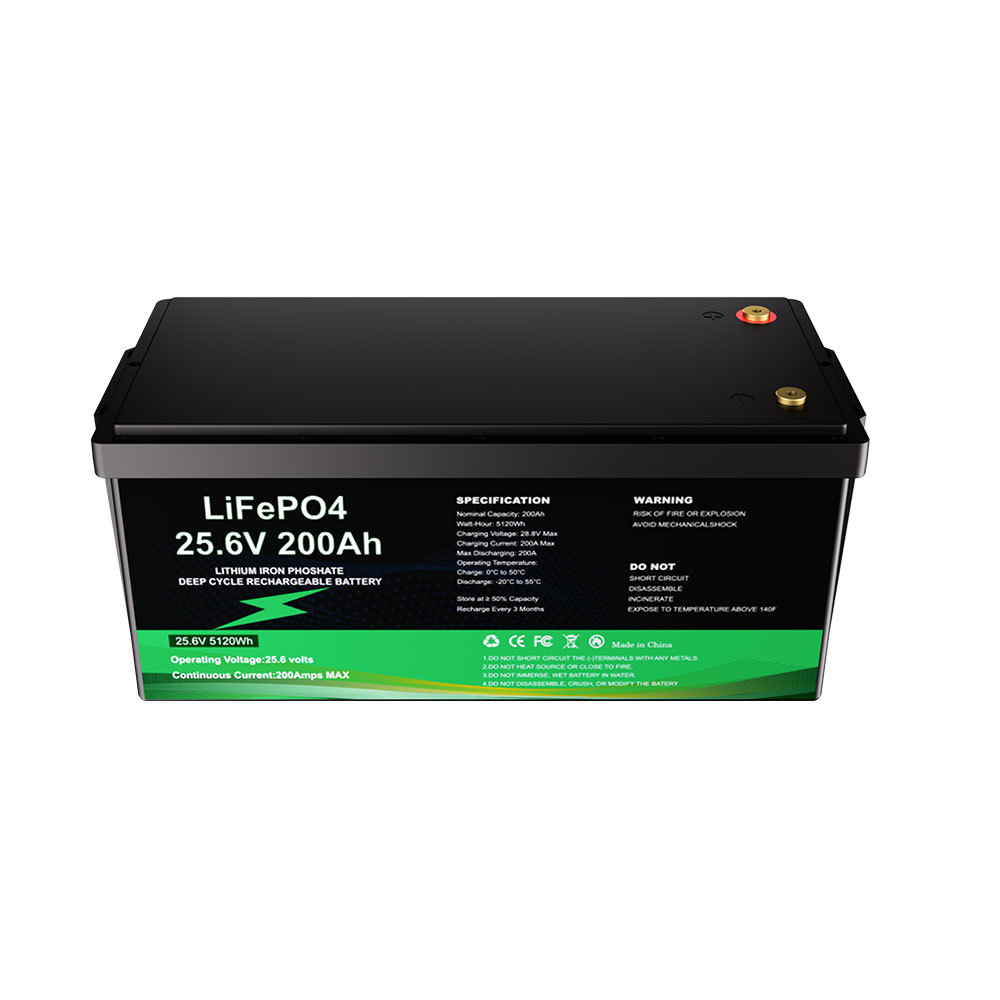

5.12kWh 25.6V 200Ah LiFePO4 Battery For Solar Emergency Backup
5.12kWh 25.6V 200Ah LiFePO4 Battery For Solar Emergency Backup
Specifications
Model Number :
PB-5KWH-25.6V-F
200A Heavy Duty Output :
Relentless discharge engine safely powers massive 5000W inverters directly from a single unit.
Payment Terms :
L/C,T/T,Western Union
35kg High Density Build :
Sheds over 80kg of dead vessel payload compared to equivalent 200Ah lead acid marine banks.
Price :
Negotiable
1 to 1 Lead Acid Swap :
Direct physical replacement for massive 24V marine battery banks utilizing standard M8 terminals.
Supply Ability :
5000 Units per Month
Instant Visual Telemetry :
Integrated top mounted display provides immediate visual feedback on remaining voltage status.
Brand Name :
Voltertech
5.12kWh Apex Capacity :
Monumental 200Ah core delivers the absolute maximum off grid endurance for 24V platforms.
MOQ :
2 Units
Delivery Time :
10-15 Days for Samples; 30-40 Days for Bulk Production
2S4P Matrix Scaling :
Expand your expedition microgrid up to 51.2V 800Ah by linking rugged modules together.
Certification :
MSDS , UN38.3
Native 24V Architecture :
Eliminates dangerous series wiring imbalances by providing pure highly efficient 25.6V power.
Place of Origin :
China
IP67 Waterproof Armor :
Fully sealed rugged enclosure survives total submersion and the harshest overlanding trails.
Packaging Details :
Heavy-Duty Wooden Case with Protective Foam
Description

5.12kWh 25.6V 200Ah LiFePO4 Battery for Solar and Emergency Backup

This 25.6V, 200Ah LiFePO4 battery provides 5.12kWh of nominal energy for solar and wind storage, emergency power, communication equipment and compatible UPS applications.

Its 200A battery platform supports projects requiring both a larger energy reserve and higher DC current capability.

5.12kWh Reserve for Essential Equipment

The battery can store energy for selected security, lighting, communication, refrigeration and monitoring loads. Actual backup time depends on consumption, conversion losses and retained reserve.

A compatible charger, solar controller or inverter is required. The battery does not contain AC power-conversion equipment.

200A Current and 5.12kW Rated Power

Rated charge and discharge current is 200A, with 205A listed for one second. Rated battery-side power is 5.12kW.

The charger, inverter, cables and protection equipment should be selected for the intended current rather than automatically operating at the maximum battery value.

5.12kWh 25.6V Battery Specifications

Nominal Rating 25.6V / 200Ah / 5.12kWh
Cell and BMS Configuration 8S1P / 8S200A BMS
Listed Operating Range 25.6–26.4V
Current Capability 200A Rated / 205A for 1 Second
Power Capability 5.12kW Rated / 5.24kW for 1 Second
Cycle Reference At Least 6000 Cycles at 80% DOD and 25°C
Expansion and Terminal Two Series / Four Parallel Listed / M8 Terminal
Dimensions and Weight 522 × 238 × 218mm / 35kg
Protection and Temperature IP67 / Charge 0°C to 50°C / Discharge -10°C to 60°C

Emergency Energy Battery FAQ

Can it supply emergency equipment directly?

DC equipment may require compatible voltage control, while AC equipment requires a separately selected inverter.

Is the 5.12kW rating an AC output value?

No. It is a battery-side power reference. AC output depends on the external inverter.

Can solar and AC charging both be used?

Either source may be used through compatible charging equipment designed for this battery platform.

Does it include communication with an inverter?

Communication mode is listed as unavailable, so inverter operation relies on compatible electrical settings.

What should be calculated before ordering?

Calculate daily energy use, peak current, required backup duration and available recharge time.

Send the priority-load list and charging equipment data to review the battery and inverter configuration.
