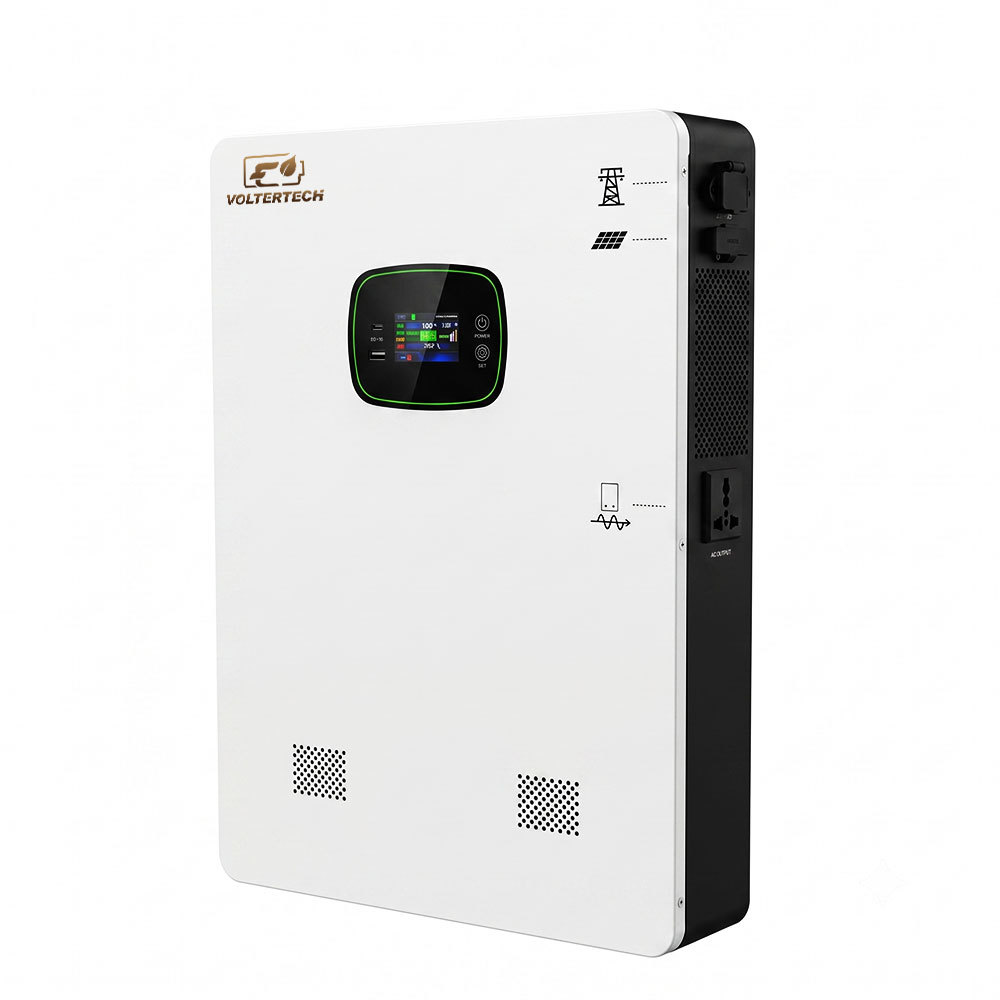

1000W 2009Wh Wall Mounted Residential Energy Storage System for Home Backup

Residential Backup Power for Essential Home Loads

This residential energy storage system combines a 2009.6Wh LiFePO4 battery, 1000W pure sine wave inverter, battery management system and MPPT solar controller in one slim wall-mounted enclosure.

It is designed to provide temporary backup power for selected household equipment such as lighting, routers, televisions, computers, security devices and communication equipment during grid interruptions.

The 90mm-deep structure helps preserve floor space, making the system suitable for apartments, houses, utility rooms and other protected indoor locations where a large floor-standing battery may not be practical.

Suitable Household Backup Applications

Internet and Communication

Provides stored electricity for compatible routers, network equipment, communication terminals and mobile-device charging during temporary outages.

Lighting and Home Security

Can support selected LED lighting, CCTV cameras, alarm systems and monitoring equipment within the rated output limit.

Home Office Equipment

Suitable for compatible computers, monitors, printers and communication devices used in a residential workspace.

Small Household Electronics

The pure sine wave inverter can supply selected televisions, fans and other compatible electronics, provided total continuous demand remains below 1000W.

Residential Power Specifications

Solar and Utility Charging for Daily Backup

The residential backup system can be recharged through a compatible AC source or photovoltaic panels. Maximum AC charging power is 800W, while maximum solar charging power is 550W.

The MPPT solar controller accepts photovoltaic input within a 13–55Vdc range. The connected array open-circuit voltage must remain below 56Vdc.

• Confirm panel operating voltage and open-circuit voltage before installation.
• Check solar connector type and polarity before connection.
• Maximum combined AC and solar charging power is 800W.
• Actual solar generation depends on panel size, sunlight and installation conditions.
• The system does not include a confirmed grid-export or electricity-selling function.

Residential Installation Checklist

• Install on a wall capable of safely supporting the 19kg system weight.
• Use mounting hardware appropriate for the wall material and structure.
• Select a dry indoor location protected from rain, moisture and condensation.
• Maintain suitable ventilation and clearance around the enclosure.
• Confirm household load power and appliance startup demand before connection.
• Confirm the required AC voltage, frequency and socket configuration before ordering.

Residential Energy Storage FAQ

Can this system supply an entire house?

No. It is designed for selected essential household loads with combined continuous demand below 1000W, rather than supplying a complete high-power home electrical system.

Which household devices are suitable?

Typical compatible loads may include LED lighting, routers, computers, televisions, CCTV equipment and communication devices. Actual compatibility depends on continuous and startup power.

Is it suitable for apartments?

The 90mm slim wall-mounted design is suitable for many apartments and compact utility areas, provided the wall, ventilation and installation clearances meet project requirements.

Can residential solar panels recharge it?

Yes. Compatible panels must operate within the 13–55Vdc MPPT range, remain below the 56Vdc open-circuit voltage limit and not exceed 550W of solar charging power.

Does it switch automatically during a blackout?

An automatic transfer or UPS switching time is not stated in the available specifications. The required backup connection method should be confirmed before project installation.

Can it be installed outside the house?

No outdoor weatherproof rating is specified. Install the system in a dry, ventilated and protected indoor location.

Residential ESS Supply Support

This wall mounted residential energy storage system is suitable for solar installers, home energy distributors, electrical contractors and project buyers requiring compact backup power for essential household loads.

Voltertech provides load confirmation, solar panel matching, voltage and socket selection, installation data, packaging information and quotation support according to residential project requirements.
