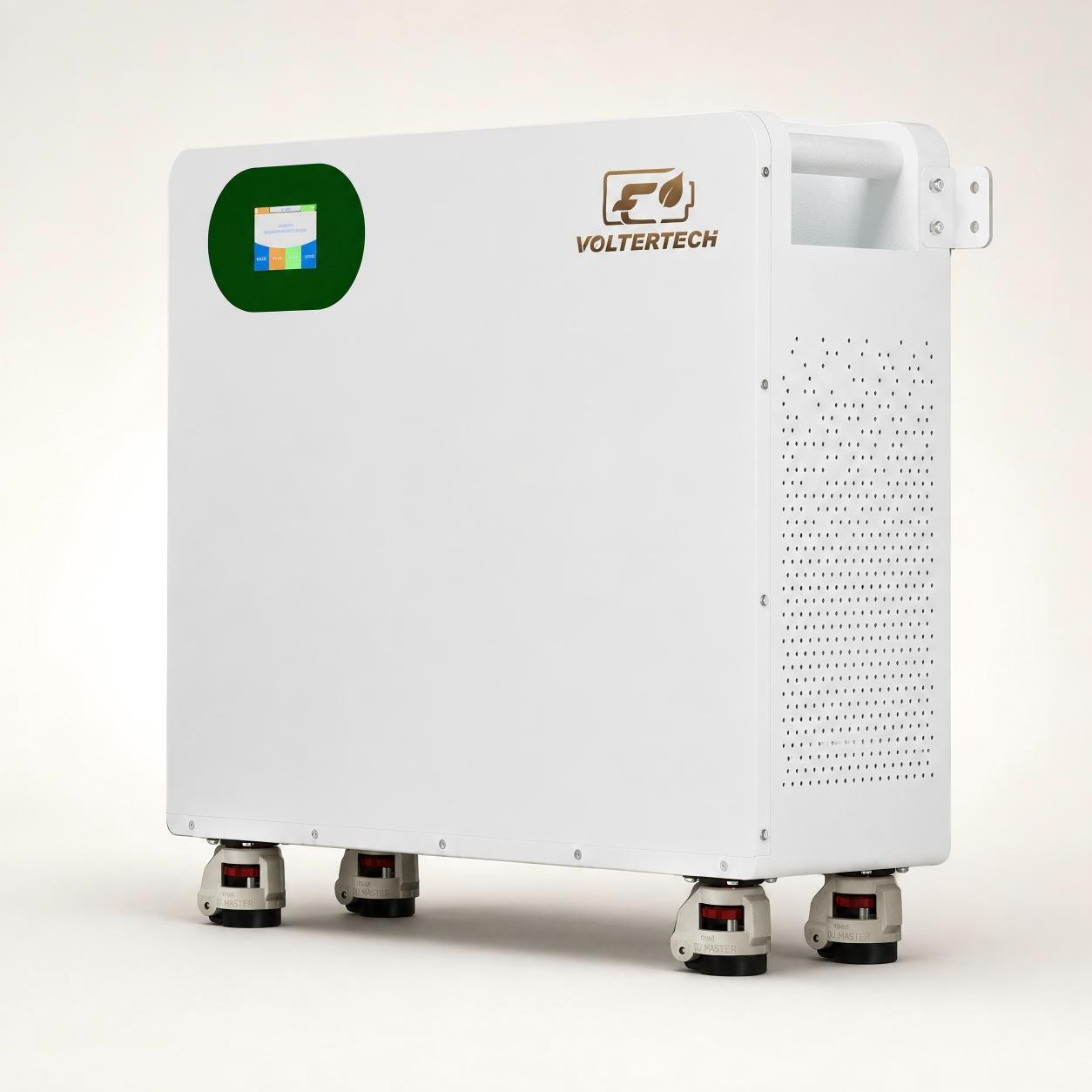

16.08kWh 51.2V 314Ah Smart LiFePO4 Home Energy Storage Battery with Touchscreen and Mobile App Monitoring
16.08kWh 51.2V 314Ah Smart LiFePO4 Home Energy Storage Battery with Touchscreen and Mobile App Monitoring
Specifications
Model Number :
BAT-16KWH-51.2V-S-W
Expansion Capability :
Up to 15 Units in Parallel
MOQ :
2 Units
Delivery Time :
10-15 days for sample orders (1-2 pcs), and bulk orders over 2 pcs are negotiable.
Mobility Design :
Heavy-Duty Lifting Casters
Payment Terms :
L/C,T/T,Western Union
User Interface :
Touchscreen + Mobile App Monitoring
Inverter Setup :
Direct Protocol Selection
Price :
Negotiable
Remote Connectivity :
Bluetooth / Wi-Fi
Supply Ability :
5000 Sets per Month
Product Positioning :
Smart Low-Voltage Energy Storage
Cell Monitoring :
Individual Cell Status Visibility
Place of Origin :
China
Certification :
CE , MSDS
Brand Name :
Voltertech
Typical Applications :
Home Storage / Commercial Backup / Renewable Integration
Packaging Details :
Heavy-Duty Wooden Case with Protective Foam
Description

16.08kWh 51.2V 314Ah Smart LiFePO4 Home Energy Storage Battery.

Built around a 51.2V 314Ah LiFePO4 battery platform, this low-voltage energy storage battery provides 16.08kWh nominal energy together with touchscreen control, wireless monitoring and inverter communication. Its smart interface and expandable architecture make system status and future capacity expansion easier to manage.

Battery Information Without Opening a Laptop

A 3.5-inch touchscreen is integrated directly into the battery. The product specification also provides Bluetooth for APP access and Wi-Fi for internet connectivity, giving users additional ways to view and manage battery information.

3.5-Inch Touchscreen View and operate battery information directly from the integrated display.
Bluetooth & Wi-Fi Bluetooth supports APP access while Wi-Fi provides internet connectivity.
Cell-Level Visibility The product design allows individual cell voltage and status information to be monitored.
Direct Protocol Selection Supported inverter protocol libraries can be selected directly without requiring a PC.

16.08kWh Capacity with 314Ah LiFePO4 Cells

The battery is rated at 51.2V nominal voltage and 314Ah nominal capacity, providing 16076.8Wh of nominal energy. LiFePO4 chemistry is used, while the specified cycle life is 6000 cycles at 25°C and 100% depth of discharge.

The technical specification lists a 15-year design life and a 5-year warranty duration. Actual battery life depends on operating conditions, temperature, charging strategy and system use.

Expand from One Battery to a Larger Storage System

The system supports up to 15 battery units in parallel. This allows a project to start with a single 16.08kWh unit and increase nominal energy capacity when additional storage is required.

15 Units
Parallel Expansion Up to 15 units can be configured in parallel according to the product specification.

Designed for Easier Installation and Movement

The enclosure uses an automotive-grade steel band strapping design, while industrial lifting casters are provided to make positioning and movement easier during installation. The enclosure protection rating is IP65.

The product specification identifies home energy storage, commercial backup power and renewable energy integration as application scenarios.

Core Technical Specifications

Swipe left or right to view the complete specification table.

ParameterSpecification
Battery ChemistryLiFePO4
Nominal Energy16076.8Wh / Approx. 16.08kWh
Nominal Voltage51.2V
Nominal Capacity314Ah
Recommended Charge Current≤100A
Maximum Continuous Discharge Current≤200A
Recommended Charge Voltage57.6V
CommunicationCAN / RS485 / RS232
Wireless CommunicationBluetooth / Wi-Fi
Display3.5-Inch Touchscreen
Parallel ExpansionUp to 15 Units
Cycle Life6000 Cycles (25°C, 100% DOD)
Design Life15 Years
Warranty5 Years
Enclosure ProtectionIP65
Dimensions490 × 276 × 905mm
Unit Weight118kg

Inverter Communication and Protocol Matching

CAN, RS485 and RS232 communication interfaces are specified for system integration. The parameter sheet also lists compatibility with multiple inverter brands and provides direct inverter protocol selection.

Because communication requirements can differ between inverter models and firmware versions, the exact inverter brand and model should be confirmed before ordering.

Operating Environment and Certification

The specified discharge temperature range is -30°C to +60°C, while charging is specified from 0°C to +60°C. The enclosure protection rating is IP65.

The technical documentation lists UN38.3 and IEC62619 certifications.

Frequently Asked Questions

Q1. Is a 16kWh LiFePO4 battery suitable for home energy storage?

It depends on household electricity consumption, required backup time and connected loads. This battery provides approximately 16.08kWh of nominal energy, so actual system sizing should be based on the home's real energy requirements.

Q2. Can I monitor this 16kWh battery from a phone?

The specification includes Bluetooth for APP access and Wi-Fi internet connectivity. Available monitoring functions should be used according to the supplied battery software and system configuration.

Q3. Can I see individual battery cell information?

The product specification includes cell-level visibility for monitoring individual cell voltage and status, helping users view more detailed battery information.

Q4. Will this 51.2V 314Ah battery communicate with my inverter?

The battery supports CAN, RS485 and RS232 communication and the parameter sheet lists compatibility with multiple inverter brands. The exact inverter brand and model should be provided so protocol compatibility can be checked before ordering.

Q5. Can multiple 16.08kWh batteries be connected together?

Yes. The product specification supports up to 15 units in parallel, allowing the nominal storage capacity to be expanded for larger energy storage requirements.

Q6. Is this battery suitable for outdoor installation?

The enclosure is rated IP65. Final installation should still follow the specified operating temperature range and the installation requirements for the complete energy storage system.

Q7. What information should I provide before ordering a 16kWh solar battery?

Provide the inverter brand and exact model, system voltage, typical load, required backup duration and planned number of battery units. This information allows battery communication and system configuration to be checked before ordering.

Check Compatibility Before You Build the System

Send us your inverter model, load requirement and required storage capacity. We can check the communication protocol and battery quantity for your energy storage configuration.

Check Battery & Inverter Compatibility
