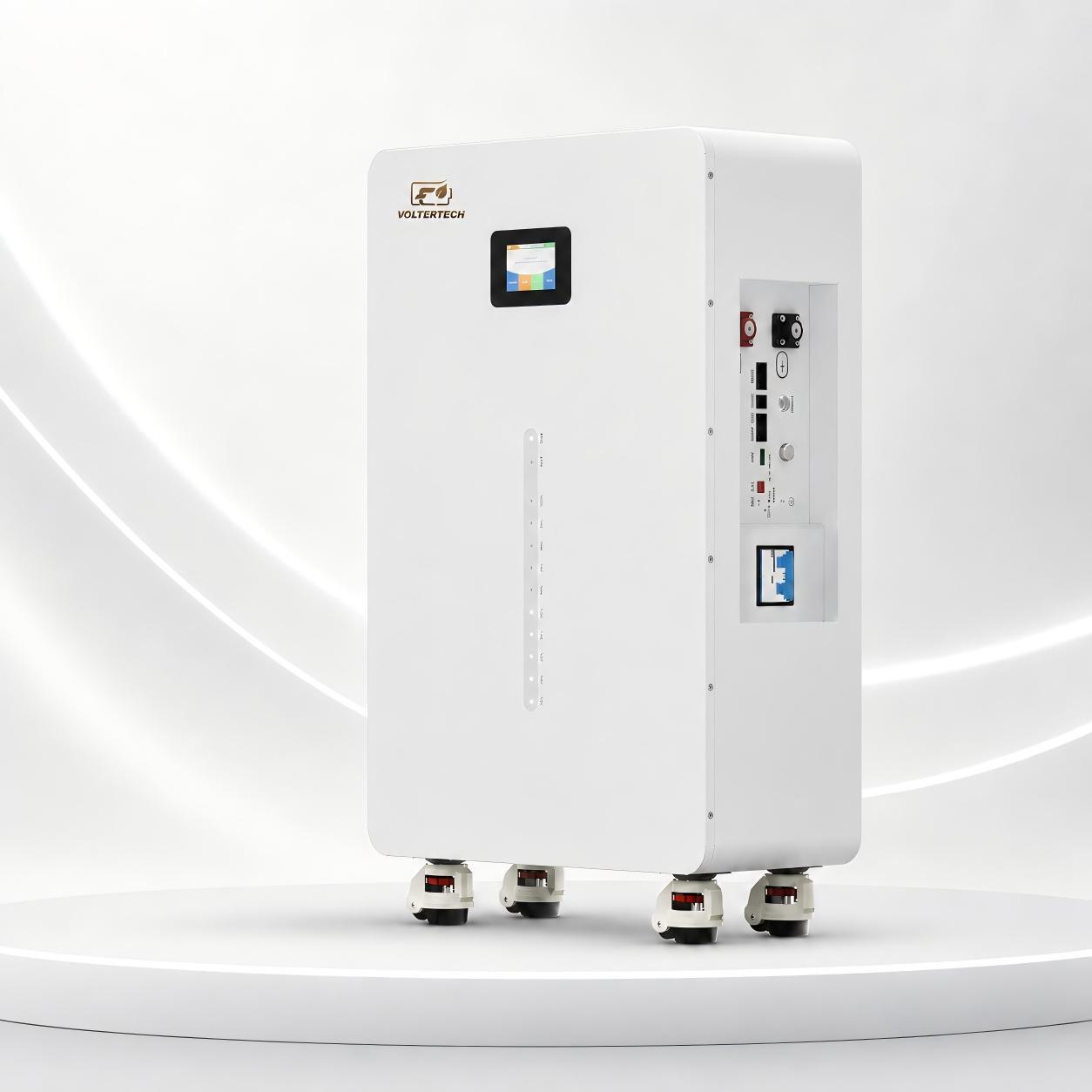

16.07kWh 51.2V 314Ah Modular LiFePO4 Solar Storage Battery with 8000 Cycles and Up to 15 Units in Parallel
16.07kWh 51.2V 314Ah Modular LiFePO4 Solar Storage Battery with 8000 Cycles and Up to 15 Units in Parallel
Specifications
Installation Concept :
Flexible Bracket Installation
Place of Origin :
China
Certification :
CE , MSDS
Model Number :
BAT-16KWH-51.2V-H-W
Additional Use :
Office / Remote Energy Storage
MOQ :
2 Units
Delivery Time :
10-15 days for sample orders (1-2 pcs), and bulk orders over 2 pcs are negotiable.
Application Focus :
Solar Storage & Household Electricity
Payment Terms :
L/C,T/T,Western Union
System Architecture :
Modular Battery Storage
Monitoring Support :
Remote Update & Battery Monitoring
Price :
Negotiable
Capacity Expansion :
Up to 15 Battery Modules
Supply Ability :
5000 Sets per Month
Product Positioning :
Expandable Low-Voltage Energy Storage
Brand Name :
Voltertech
Target Buyers :
Solar Installers / ESS Distributors / Integrators
Packaging Details :
Heavy-Duty Wooden Case with Protective Foam
Description

16.07kWh 51.2V 314Ah Modular LiFePO4 Solar Storage Battery.

Designed around an expandable low-voltage battery architecture, this LiFePO4 battery provides 16.07kWh nominal energy from a 51.2V 314Ah platform. The system supports CAN and RS485 communication and can be expanded with up to 15 battery units in parallel when additional storage capacity is required.

16.07kWh
Nominal Energy per Unit
51.2V / 314Ah
Low-Voltage LiFePO4 Platform
8,000 Cycles
Specified Cycle Life

Build the Storage Capacity Around Your Actual Energy Demand

A modular battery system allows storage capacity to be selected according to the project rather than relying on a fixed battery configuration. One battery provides 16.07kWh nominal energy, while additional compatible units can be added when greater storage capacity is required.

Up to 15 Units in Parallel The product specification supports parallel connection of up to 15 battery units, providing a flexible path for residential or other low-voltage energy storage projects that may require future capacity expansion.

51.2V 314Ah LiFePO4 Battery Platform

The battery uses LiFePO4 chemistry with a nominal voltage of 51.2V and nominal capacity of 314Ah. This combination provides 16.07kWh of nominal energy in each battery unit.

CAN and RS485 communication interfaces are provided for connection with compatible inverter systems. The exact inverter model and communication protocol should be checked before ordering.

The technical specification lists 8,000 cycles at 25°C and 100% depth of discharge, together with a specified service life of 10 years.

Designed for Modular Installation and Expansion

Flexible Expansion Battery capacity can be increased by adding compatible units according to the system requirements.
Flexible Brackets The product information specifies stackable installation with flexible brackets.
Battery Monitoring Remote update and monitoring functions are included in the supplied product information.
Thermostatic Control Thermostatic control is listed among the battery product characteristics.

Core Technical Specifications

Swipe left or right to view the complete specification table.

Parameter Specification
Battery Chemistry LiFePO4
Nominal Energy 16.07kWh
Nominal Voltage 51.2V
Nominal Capacity 314Ah
Recommended Charge Voltage 57.6V
Communication CAN / RS485
Parallel Expansion Up to 15 Units
Cycle Life 8,000 Cycles (25°C, 100% DOD)
Specified Service Life 10 Years
Enclosure Protection IP20
Dimensions 500 × 235 × 820mm
Approx. Weight 120kg
Discharge Temperature -20°C to +55°C
Charge Temperature 0°C to +45°C
Storage Temperature -5°C to +35°C

Solar Storage and Low-Voltage Energy Applications

Solar storage and household electricity are listed among the intended application scenarios in the product information. Remote or nomadic farm applications and central office use are also included.

Because the enclosure protection rating is IP20, the installation location should provide environmental protection appropriate to the specified enclosure rating and operating conditions.

Check Inverter Communication Before System Installation

The battery provides CAN and RS485 communication interfaces for inverter integration. Communication compatibility can differ between inverter brands, models and protocol versions.

Providing the exact inverter brand and model before ordering allows the communication protocol and battery configuration to be checked in advance.

Frequently Asked Questions

Q1. Is a 16kWh battery enough for a home solar system?

One battery provides 16.07kWh of nominal energy. Whether this is sufficient depends on household electricity consumption, the loads that need to be powered and the required backup duration. Actual system sizing should therefore be based on the home's energy usage rather than battery capacity alone.

Q2. How long can a 16kWh LiFePO4 battery power a home?

Operating time depends on the actual electrical load. A home with lower continuous consumption will receive a longer backup duration than a site with higher loads. Inverter efficiency, battery operating limits and system settings will also affect actual runtime.

Q3. Can I connect multiple 16kWh batteries in parallel?

Yes. The product specification supports up to 15 battery units in parallel, allowing storage capacity to be increased when one 16.07kWh battery is not sufficient for the project.

Q4. Can this 51.2V 314Ah battery work with a solar inverter?

The battery provides CAN and RS485 communication for inverter integration. Compatibility depends on the inverter model and communication protocol, so the exact inverter brand and model should be confirmed before ordering.

Q5. Can this 16kWh LiFePO4 battery be used for solar energy storage?

Yes. Solar storage is specifically listed among the intended application scenarios in the supplied product information. The complete battery and inverter configuration should be selected according to the solar system design and required storage capacity.

Q6. How many cycles does this 51.2V 314Ah LiFePO4 battery provide?

The technical specification lists 8,000 cycles at 25°C and 100% depth of discharge, together with a specified service life of 10 years.

Q7. Can this 16kWh battery be installed outdoors?

The enclosure protection rating is IP20. The installation environment should therefore provide protection appropriate to the specified enclosure rating and remain within the listed operating temperature conditions.

Q8. What size inverter should I use with a 51.2V 314Ah battery?

The inverter should first match the battery's 51.2V low-voltage architecture and supported communication interface. The exact inverter power and model should be selected according to the system load and project design. Providing the inverter model before ordering allows compatibility to be checked.

Q9. What information should I provide before ordering a 16kWh solar battery system?

Provide the inverter brand and model, typical electrical load, required backup duration, planned battery quantity and solar system information. These details help determine the appropriate battery configuration and check inverter communication compatibility.

Plan the Battery Capacity Around Your Energy Requirements

Send us your inverter model, required storage capacity, typical load and expected backup duration. We can check the battery quantity and communication compatibility for your energy storage configuration.
