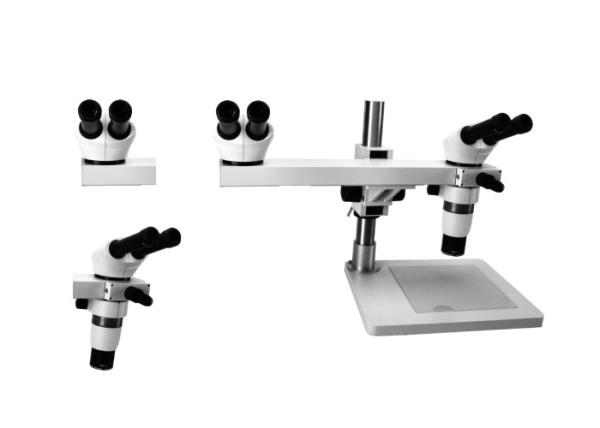

DVS-0865 Zoom Stereo Microscope Binocular Head 215mm Focusing Range
DVS-0865 Zoom Stereo Microscope Binocular Head 215mm Focusing Range
Specifications
Brand Name :
Sinowon
Model Number :
DVS-0865
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Payment Terms :
T/T in advance
Supply Ability :
100 sets per month
Delivery Time :
10 days
Packaging Details :
plywood
Pointer :
Parallel optical zoom system
Zoom Objective :
0.8X～5X
Focusing Range :
215mm
Base Stage :
420mm×350mm
Toughened glass :
250mmx250mm
Optional Accessories :
Micrometter
Description

DVS-0865 Zoom Stereo Microscope Binocular Head 215mm Focusing Range

Specification:

DVS-0850

Optical System

Parallel optical zoom system

Zoom Objective

0.8X～6.5X

Viewing Head

Binocular head, 20°inclined,Interpupilary distangce 55-75mm

Optional Tilting binocular eyepiece tube, 0-35°inclined, Interpupilary distangce 55-75mm

Eyepiece

Eyepiece for Main Viewing Head 10X/Φ22

Eyepiece for Side Viewing Head 10X/Φ22

Pointer

Red and Green LED

Illumination

Optional Ring illumination(LED,fluorescent)

Working Distance

78mm

Focusing Range

215mm

Base Stage

420mm×350mm

Toughened glass
stage

250mmx250mm

Objective:

Objective

Wd:78mm 1X Plan achromatic objective

Optional Wd:276mm 0.3X Achromatic objective

Optional Wd:195mm 0.5X Achromatic objective

Optional Wd:126mm 0.5X Plan apochromatic objective

Optional WD:32.5mm 2X Plan achromatic objective

Optional Accessories:

* Micrometter

* Iris diaphragm

* LCD Attachment

* Coaxial illumination

* Beamsplitter(one port)

* Beamsplitter(two ports)

* Epi-fluorescent attachment

* Photography & video attachment
