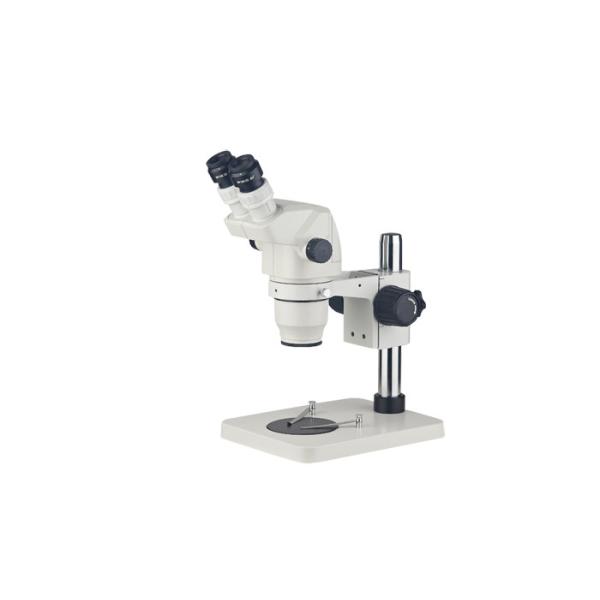

Stereoscopic Zoom Microscope Systems Trinocular Observe Head 22mm FOV
Stereoscopic Zoom Microscope Systems Trinocular Observe Head 22mm FOV
Specifications
Brand Name :
Sinowon
Model Number :
Trioncular Zoom A3T
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Payment Terms :
T/T in advance
Supply Ability :
100 sets per month
Delivery Time :
10 days
Packaging Details :
plywood
Working Distance :
105mm
Eyepiece :
High eye-point and wide-field eyepiece WF10X/22mm
Magnification :
6.7x~45x
Microscope Holder :
Focus adjustment range 50mmm
Auxiliary Objective :
0.5X/177mm,1.5X/47mm
Microscope Head :
Trinocular Observe Head
Description


Stereoscopic Zoom Microscope Systems Trinocular Observe Head 22mm FOV


Characteristics:
Large field of view(22mm), high diopter. Convenient for maintence , clearance and adjustment. This instrument is widely used for medical service, agriculture, geology, electronic precision mechanical industry and department, especially suitable for LC bare chip inspection, LCD printing paste inspection, LED production inspection, PCB inspection, press and electroplating, electronic parts inspection etc.


Application:

* LC bare chip inspection,
* LCD printing paste inspection,
* LED production inspection,
* PCB inspection,
* Press and electroplating,
* Electronic parts inspection etc.

Specification:

Model

Trioncular Zoom A3T

Code#

411-132

Objective

0.67x~4.5x Zoom Objective, Zoom Ration 6.7x

Eyepiece

High eye-point and wide-field eyepiece WF10X/22mm

Optional WF15X/16mm,WF20X/12mm,WF25X/9mm and object micrometer is available

Magnification

6.7x~45x,it can extend to 3.35x~180x

Zoom Driver

Horizontal Axial Driver Control Knobs

Working Distance

105mm(effective distance),it can extend to 26mm~177mm

Microscope Head

Trinocular Observe Head with 45°incline and 360°rotatable

Interpupillary distance adjustment range 54~76mm with bilateral ±6 diopter

Microscope Holder

Focus adjustment range 50mmm,focusing knobs elasticity adjustable

Drawtube diameter 76mm

Microscope Stand

Pillar diameter 32mm and high 240mm

Black & white working board diameter 95mm

Auxiliary Objective

0.5X/177mm,1.5X/47mm and 2X/26mm optional



Optical Specification:

Eyepiece

Main Body

Auxiliary Objective

0.5x

1x

1.5X

2X

0.65x~4.5x

(#416-312)

(#416-322)

(#416-332)

(#416-342)

10X

Total Magnification

3.4x~22.5x

6.7x~45x

10.1x~67.5x

13.4x~90x

Field of view

65.7~9.8mm

32.8~4.9mm

21.9~3.3mm

16.4~2.4mm

15X

Total Magnification

5.0x~33.8x

10.1x~67.5x

15.1x~101.3x

20.1x~135x

Field of view

47.8~ 7.1mm

23.9~3.6mm

15.9~2.4mm

11.9~1.8mm

20X

Total Magnification

6.7x~45x

13.4x~90x

20.1x~135x

26.8x~180x

Field of view

35.8~ 5.3mm

17.9~2.7mm

11.9~1.8mm

9~1.3mm

30X

Total Magnification

8.4x~56.3x

16.8x~112.5x

25.1x~168.8x

33.5x~225x

Field of view

26.9~ 4mm

Φ13.4~2mm

9~1.3mm

6.7~1.0mm.3

Working Distance(mm)

177

105

47

26
