AI Vision Inspection Machine for Eye Dropper Caps with 0.1 mm Precision 99.9% Accuracy and AI Deep Learning Algorithms
AI Vision Inspection Machine for Eye Dropper Caps with 0.1 mm Precision 99.9% Accuracy and AI Deep Learning Algorithms
Specifications
Brand Name :
KEYE
Model Number :
KVIS-C-CC08S
Certification :
ISO/CE
Place of Origin :
China
MOQ :
1 SET
Price :
USD20000~USD50000
Payment Terms :
T/T
Supply Ability :
1 Set Per 4 Weeks
Delivery Time :
6 To 8 Weeks
Packaging Details :
Fumigation-Free Wood
Defect Detection :
Black spot, color difference, impurity, thread, pressing ring, broken ring, notch, batch edge, burr, flash, deformation, dimension, gasket, inner plug, die number, etc.
Inspection Objects :
Plastic, metal, and glass bottle caps
Image Processing Software :
AI Deep Learning Algorithms
Speed :
300 pcs/min (customized)
Accuracy :
99.9%
Precision :
0.1 mm
Camera Type :
Color CCD
Lighting Type :
LED
Description

AI Vision Inspection Machine | Eye Dropper Caps

AI Deep Learning Algorithms | Full Automated | COULD Remote Service


PRODUCT DESCRIPTION

Product Name

Full Automatic Cap Vision Inspection Machine

Inspection Defects

Black spot, color difference, impurity, thread, pressing ring, broken ring, notch, batch edge, burr, flash, deformation, dimension, gasket, inner plug, die number, etc.

Detection Area

Cap concave&top, bottom, outer sidewall

Voltage and current

Adapt to national standard

Compressed air

0.5Mpa - 0.8Mpa

Maximum Speed

2500pcs/min

Precision

0.1mm*0.1mm

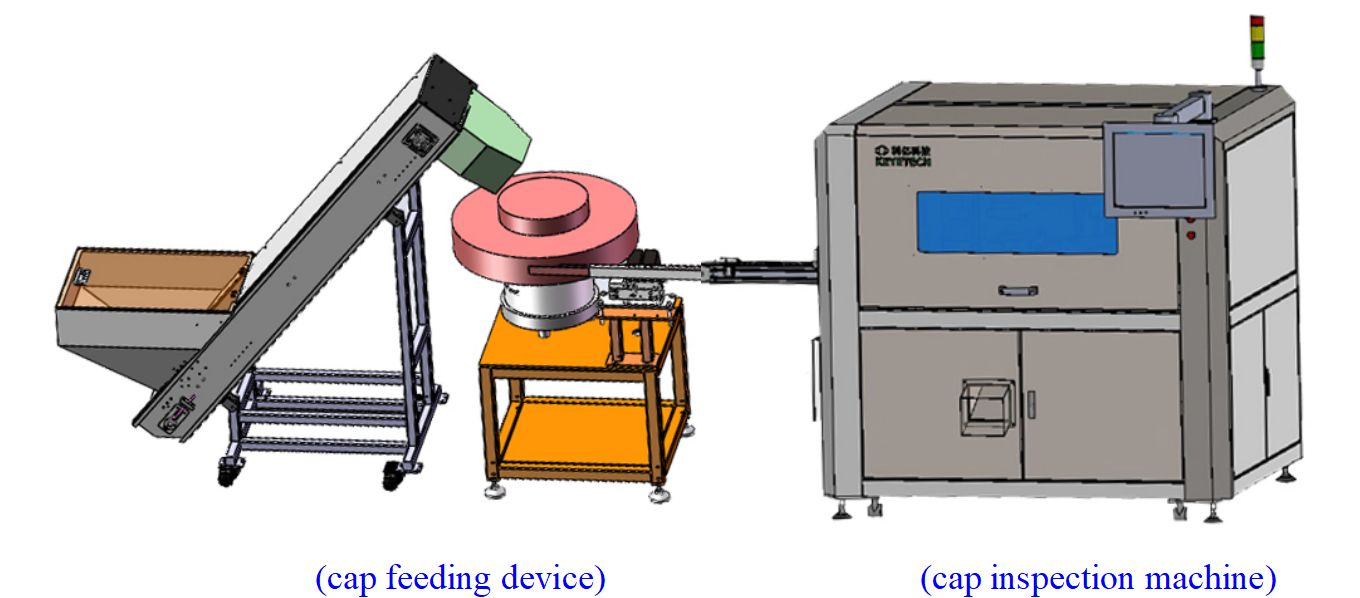

Size (including cap feeder)

3700*1300*1785mm

Power

5000 - 7000w

Accuracy

99.9%

Weight

350kg




Inspection Area

cap outer sidewall, top injection point and top flat, cap concave side, inside thread damage. (customzied solution available)

AI Vision Inspection Machine for Eye Dropper Caps with 0.1 mm Precision 99.9% Accuracy and AI Deep Learning Algorithms

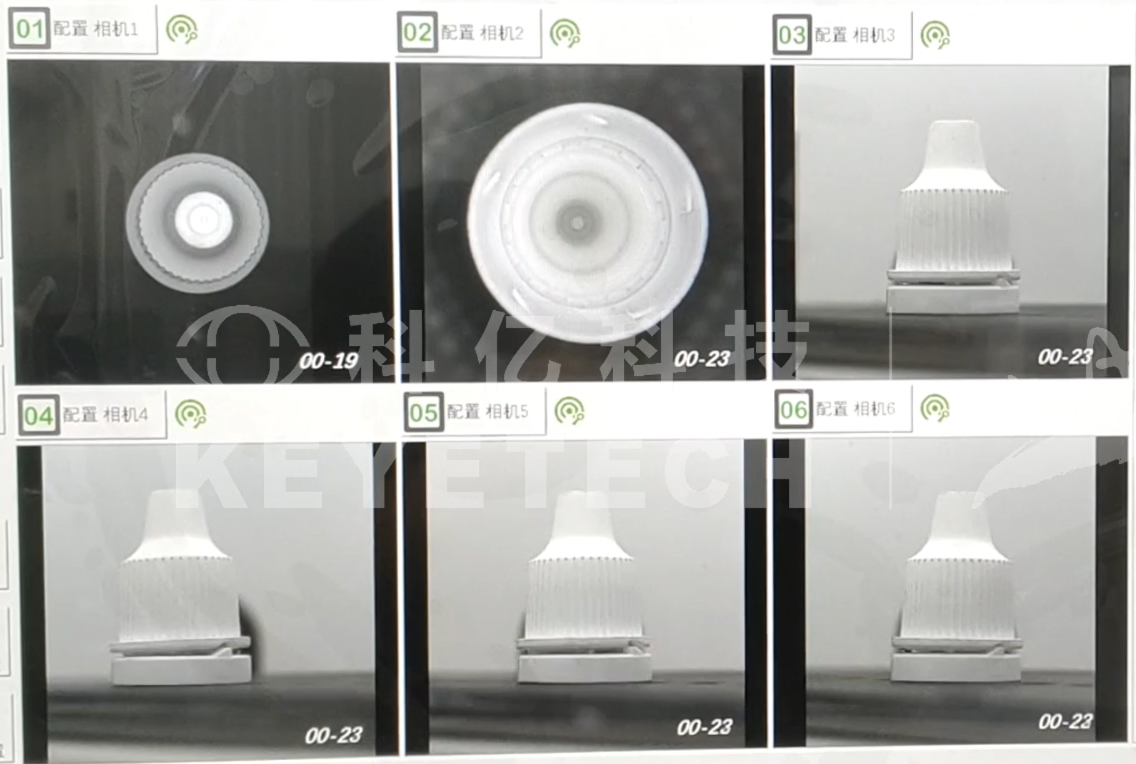

Defects Detection - Caps Vision Inspection Machine

Black spot, color difference, impurity, thread, pressing ring, broken ring, notch, batch edge, burr, flash, deformation, dimension, gasket, inner plug, die number, etc.

AI Vision Inspection Machine for Eye Dropper Caps with 0.1 mm Precision 99.9% Accuracy and AI Deep Learning Algorithms

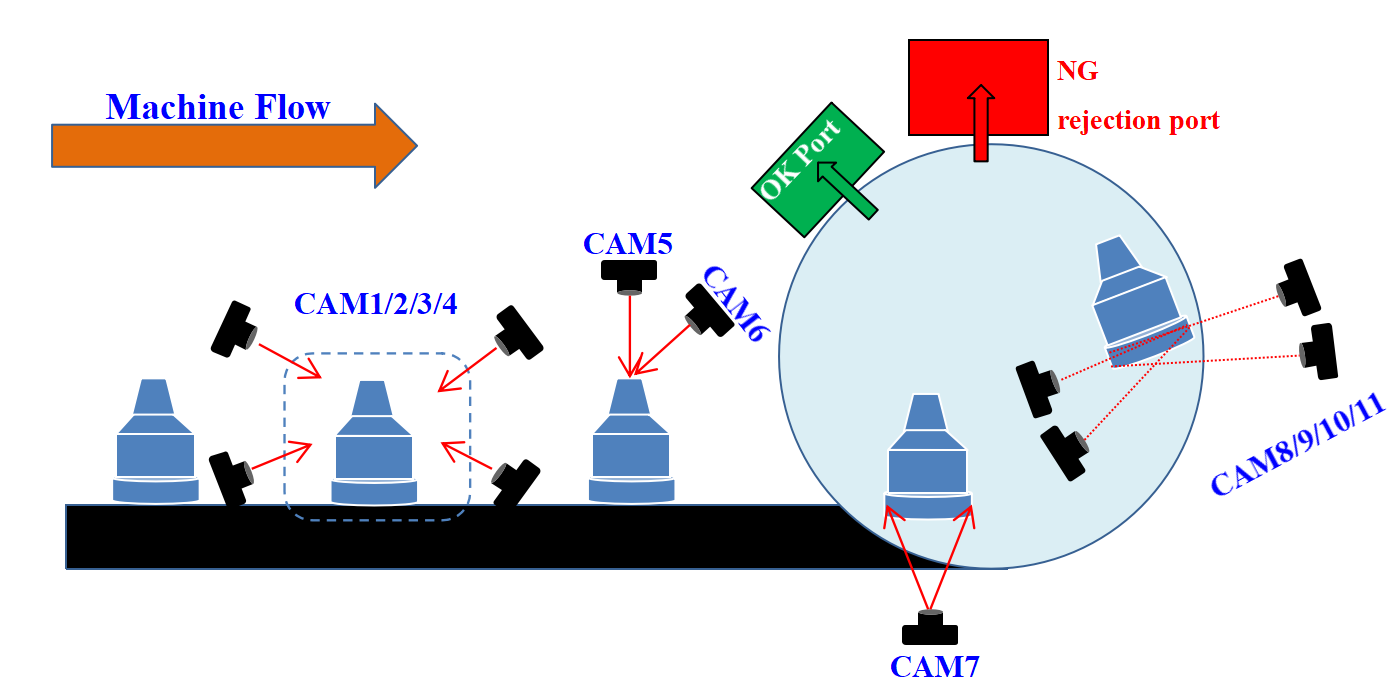

Inspection Theory

KeyeTech caps vision inspection equipment detects appearance defects. Products transfer to a workstation via feeding devices. High-pixel images from customized industrial cameras & LED light sources uploads to KVIS-COULD AI Platform. AI algorithms analyzes, sorts "NG" and "OK" products, rejects defective products online via pneumatics. Software offers sample comparison standards for customers to select the most suitable standard for accuracy and defect rates.


After-Sale Service

l Equipment installation and adjustment service: After the equipment is delivered, engineer is dispatched according to the customer's requested date (within 7 days after machine's arrival) to be responsible for the on-site commissioning. The time is subject to the actual situation. Engineer will be in charge of installation, adjustment and training.

l Free daily maintenance services: Our company provides free remote operation and maintenance online services in Keye Tech AI COULD platform, particularly for the system updating, algorithm setting, software adjustment, etc.

l Offline Training Class: Our company have regular offline training plan every year including mechanics and software & algorithms, so domestic and foreign clients can send their engineers to participate (at their own expense).


About US | Keye Tech

Anhui Keye Intelligent Technology Co., Ltd. is a Chinese national high-tech enterprise specializing in the application of AI technology in vision inspection industry. As a leading manufacturer & solution provider with over 15 years experiences, we provide the most advanced AI vision inspection machine and customized solutions of AI visual inspection system. We have 60+ R&D researchers from top domestic optical research institutes and a core doctoral team from the USTC, covering the entire technology chain of optics, electrics, mechanics, algorithm and software. Our products can be applied in beverage, pharmacy, dairy, wine, textile, new energy, agriculture and other packaging industries.


AI Vision Inspection Machine for Eye Dropper Caps with 0.1 mm Precision 99.9% Accuracy and AI Deep Learning Algorithms


Application: caps, bottles, cups, preforms, label & IML and customized products...

AI Vision Inspection Machine for Eye Dropper Caps with 0.1 mm Precision 99.9% Accuracy and AI Deep Learning Algorithms


AI Visual Inspection Machine - Customers' Factory On-Site

AI Vision Inspection Machine for Eye Dropper Caps with 0.1 mm Precision 99.9% Accuracy and AI Deep Learning Algorithms


Cooperated Brands

Trusted by 2,000+ brands worldwide, including Coca-Cola, P&G, Unilever, ALPLA, MENSHEN, Shriji Polymer, Berry Global, Aptar, LAMIPAK, TPAC, PACT Group, etc. From the U.S., France, Japan, and South Korea to tropical Thailand, India, Turkey, Vietnam, and even Russia, Pakistan, Algeria, Keye Tech’s equipment has now reached over 30 countries.

AI Vision Inspection Machine for Eye Dropper Caps with 0.1 mm Precision 99.9% Accuracy and AI Deep Learning Algorithms


Why 2000+ Brands Choose US?

l No.1 in Domestic Market Share & Technology

l 50+ patents, a 220+ team dedicated to excellence

l 60+ R&D professionals, USTC core doctoral experts, leaping technical edge

l 40+ aftersales technicians available 24h to support your operations

AI Vision Inspection Machine for Eye Dropper Caps with 0.1 mm Precision 99.9% Accuracy and AI Deep Learning Algorithms


Customiziable Solution based on request INQUIRY NOW!

Keye has a mature standardized new product R&D system, strong research and development capabilities, and follows the principle of "everything can be inspected". We have provided highly customized personalized products for industry-leading clients, such as CATL lithium battery, Maotai wine bottle, Chemi-con capacitors,AI Vision Inspection Machine for Eye Dropper Caps with 0.1 mm Precision 99.9% Accuracy and AI Deep Learning Algorithms
