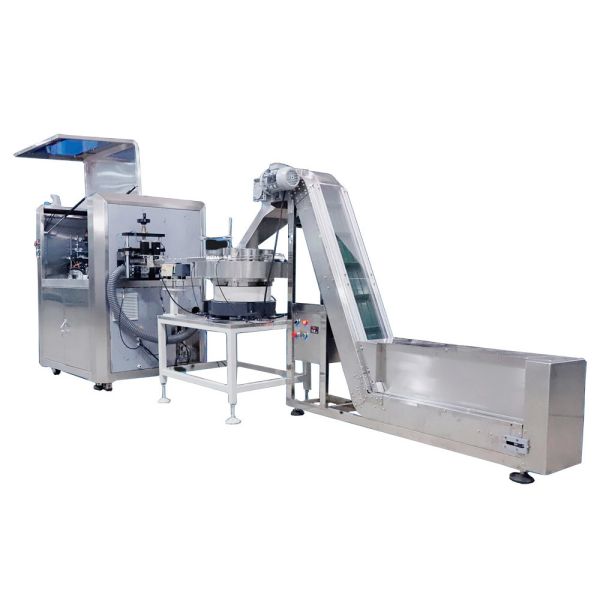

Eye Dropper Nozzles AI Vision Inspection Machine High Speed 0.1 Mm Precision Full Automated Latest AI Algorithms
Eye Dropper Nozzles AI Vision Inspection Machine High Speed 0.1 Mm Precision Full Automated Latest AI Algorithms
Specifications
Brand Name :
KEYE
Model Number :
KVIS-C-CC08S
Certification :
ISO/CE
Place of Origin :
China
MOQ :
1 SET
Price :
USD20000~USD50000
Payment Terms :
T/T
Supply Ability :
1 Set Per 4 Weeks
Delivery Time :
6 To 8 Weeks
Packaging Details :
Fumigation-Free Wood
Defect Detection :
Black spot, color difference, impurity, thread, pressing ring, broken ring, notch, batch edge, burr, flash, deformation, dimension, gasket, inner plug, die number, etc.
Inspection Objects :
Plastic, metal, and glass bottle caps
Image Processing Software :
AI Deep Learning Algorithms
Speed :
300 pcs/min (customized)
Accuracy :
99.9%
Precision :
0.1 mm
Camera Type :
Color CCD
Lighting Type :
LED
Description

AI Vision Inspection Machine | Eye Dropper Nozzles

AI Deep Learning Algorithms | Full Automated | COULD Remote Service


PRODUCT DESCRIPTION

Product Name

Full Automatic Cap Vision Inspection Machine

Inspection Defects

Black spot, color difference, impurity, thread, pressing ring, broken ring, notch, batch edge, burr, flash, deformation, dimension, gasket, inner plug, die number, etc.

Detection Area

Cap concave&top, bottom, outer sidewall

Voltage and current

Adapt to national standard

Compressed air

0.5Mpa - 0.8Mpa

Maximum Speed

2500pcs/min

Precision

0.1mm*0.1mm

Size (including cap feeder)

3700*1300*1785mm

Power

5000 - 7000w

Accuracy

99.9%

Weight

350kg

Eye Dropper Nozzles AI Vision Inspection System (Offline)

Elevate your dropper quality with Keye AI vision inspection solution!

Vibration Feeder & Glass Turntable Conveyor: Stable operation, efficient inspection — a steady convey for high-speed checks

Eye Dropper Nozzles AI Vision Inspection Machine High Speed 0.1 Mm Precision Full Automated Latest AI Algorithms

Eye Dropper Nozzles AI Vision Inspection Machine High Speed 0.1 Mm Precision Full Automated Latest AI Algorithms


8-Camera All Around Inspection: Nozzle outer sidewall, top flat, step surface, upper&below drop hole, bottom concave — cover every critical area

AI HD Vision: Precise micro-defect detection — catches tiny flaws that manual checks miss

Eye Dropper Nozzles AI Vision Inspection Machine High Speed 0.1 Mm Precision Full Automated Latest AI Algorithms


Real-time Data Visualization: Clear product imaging — track inspection results instantly

Eye Dropper Nozzles AI Vision Inspection Machine High Speed 0.1 Mm Precision Full Automated Latest AI Algorithms


Smart Sorting: NG defective product inline rejection, good product counting and boxing

Eye Dropper Nozzles AI Vision Inspection Machine High Speed 0.1 Mm Precision Full Automated Latest AI Algorithms


AI Vision for eye dropper quality — safeguard your products with cutting-edge AI technology!

Eye Dropper Nozzles AI Vision Inspection Machine High Speed 0.1 Mm Precision Full Automated Latest AI Algorithms


Inspection Theory

KeyeTech caps vision inspection equipment detects appearance defects. Products transfer to a workstation via feeding devices. High-pixel images from customized industrial cameras & LED light sources uploads to KVIS-COULD AI Platform. AI algorithms analyzes, sorts "NG" and "OK" products, rejects defective products online via pneumatics. Software offers sample comparison standards for customers to select the most suitable standard for accuracy and defect rates.


After-Sale Service

l Equipment installation and adjustment service: After the equipment is delivered, engineer is dispatched according to the customer's requested date (within 7 days after machine's arrival) to be responsible for the on-site commissioning. The time is subject to the actual situation. Engineer will be in charge of installation, adjustment and training.

l Free daily maintenance services: Our company provides free remote operation and maintenance online services in Keye Tech AI COULD platform, particularly for the system updating, algorithm setting, software adjustment, etc.

l Offline Training Class: Our company have regular offline training plan every year including mechanics and software & algorithms, so domestic and foreign clients can send their engineers to participate (at their own expense).


About US | Keye Tech

Anhui Keye Intelligent Technology Co., Ltd. is a Chinese national high-tech enterprise specializing in the application of AI technology in vision inspection industry. As a leading manufacturer & solution provider with over 15 years experiences, we provide the most advanced AI vision inspection machine and customized solutions of AI visual inspection system. We have 60+ R&D researchers from top domestic optical research institutes and a core doctoral team from the USTC, covering the entire technology chain of optics, electrics, mechanics, algorithm and software. Our products can be applied in beverage, pharmacy, dairy, wine, textile, new energy, agriculture and other packaging industries.

Eye Dropper Nozzles AI Vision Inspection Machine High Speed 0.1 Mm Precision Full Automated Latest AI Algorithms


Application: caps, bottles, cups, preforms, label & IML and customized products...

Eye Dropper Nozzles AI Vision Inspection Machine High Speed 0.1 Mm Precision Full Automated Latest AI Algorithms


AI Visual Inspection Machine - Customers' Factory On-Site

Eye Dropper Nozzles AI Vision Inspection Machine High Speed 0.1 Mm Precision Full Automated Latest AI Algorithms


Cooperated Brands

Trusted by 2,000+ brands worldwide, including Coca-Cola, P&G, Unilever, ALPLA, MENSHEN, Shriji Polymer, Berry Global, Aptar, LAMIPAK, TPAC, PACT Group, etc. From the U.S., France, Japan, and South Korea to tropical Thailand, India, Turkey, Vietnam, and even Russia, Pakistan, Algeria, Keye Tech’s equipment has now reached over 30 countries.

Eye Dropper Nozzles AI Vision Inspection Machine High Speed 0.1 Mm Precision Full Automated Latest AI Algorithms


Why 2000+ Brands Choose US?

l No.1 in Domestic Market Share & Technology

l 50+ patents, a 220+ team dedicated to excellence

l 60+ R&D professionals, USTC core doctoral experts, leaping technical edge

l 40+ aftersales technicians available 24h to support your operations

Eye Dropper Nozzles AI Vision Inspection Machine High Speed 0.1 Mm Precision Full Automated Latest AI Algorithms


Customiziable Solution based on request INQUIRY NOW!

Keye has a mature standardized new product R&D system, strong research and development capabilities, and follows the principle of "everything can be inspected". We have provided highly customized personalized products for industry-leading clients, such as CATL lithium battery, Maotai wine bottle, Chemi-con capacitors,
