CMM Machine Tool Holder Flexible Fixture Kits for Precision Measurement
CMM Machine Tool Holder Flexible Fixture Kits for Precision Measurement
CMM Machine Tool Holder Flexible Fixture Kits for Precision Measurement
CMM Machine Tool Holder Flexible Fixture Kits for Precision Measurement
CMM Machine Tool Holder Flexible Fixture Kits for Precision Measurement
CMM Machine Tool Holder Flexible Fixture Kits for Precision Measurement
Specifications
Brand Name :
MEAXPERT
Model Number :
VMM Fixturing Kits 112pcs
Place of Origin :
China
MOQ :
≥1
Price :
US$355.00-415.00
Payment Terms :
L/C,T/T
Delivery Time :
15days
Packaging Details :
Aluminum Alloy Box
After-sales service :
Online Service
Color :
Gold
G.W. :
20kg
Packaging :
Aluminum Alloy Box
Other Options :
112
Use :
VMM
Description
Product Description
Vision Measurement Machine Fixtures
The VMM fixtures are widely used in varies industries such as electronics, aerospace, automotive, plastic or medical care. It can be introduced to all sizes and models of VMM. They are the tools which make your measuring process flexible,repeatable, and standardized. All components are made by precision manufacturing process and with anodise coating. Each part is with laser marking coding, so all the combination of the components can be repeatable for the subsequent inspections. Which helps to eliminate the variation of different parts or operators, and increasing the measuring accuracy and repeatability.
CMM Machine Tool Holder Flexible Fixture Kits for Precision Measurement
CMM Machine Tool Holder Flexible Fixture Kits for Precision Measurement
CMM Machine Tool Holder Flexible Fixture Kits for Precision Measurement
Base Plate size
Details Description
Modular Fixtures-VMM
Base Plate Size
300*200mm, M4 Thread holes
400*300mm, M4 Thread holes
300*300mm, M4 Thread holes
400*400mm, M4 Thread holes
Other customized sizes
The VMM fixtures are designed as a complete components kit. We have studied most of the VMM measuring application from our experience of VMM users, and have taken reference to different types of parts, to develop the fixtures kit components.
The kit is including supporting, pressing, and holding components, which allow the user to manage the fixturing easily and no special tools as required. Regardless of shapes or materials, user can easily find the fixturing solution during measuring process.

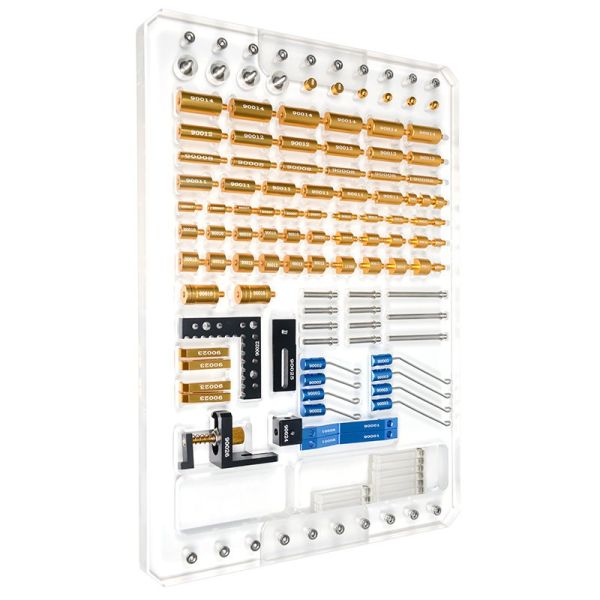

Specification
Product Name
Mark
QTY
Tenshion clamp
90001
4
Short Wire tension clamp
90002
4
Long Wire tension clamp
90003
4
Short tension clamp support
90004
8
Long tension clamp support
90005
3

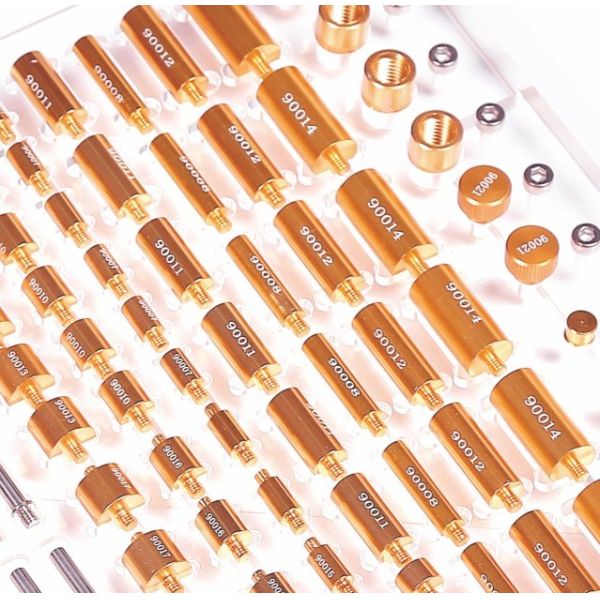

6*5mm standoff
90006
3
6*10mm standoff
90007
6
6*25mm standoff
90008
6
9*5mm standoff
90009
3
9*10mm standoff
900010
6
9*20mm standoff
900011
6
9*25mm standoff
900012
6
12*10mm standoff
900013
6
12*25mm standoff
900014
6
6*10mm Flat standoff
900015
4
9*10mm Flat standoff
900016
4
12*10mm Flat standoff
900017
4
9mm adjustable standoff
900018
2
6mm ball type standoff
900019
2
Muti direction adaptor
900020
2
Tension sopport screw
900021
2
L blcoks
900022
1
Ajustable slide
900023
4
Direction switching block
900024
1
Direction switching block base
900025
1
Tension sopport
900026
1
M4-M8 adaptor
900027
4
Transparent adjustable slide
900028
8
M3 srew driver
900029
1
Components packing


M4*10 screws (20 pcs)


Packing Suitcase

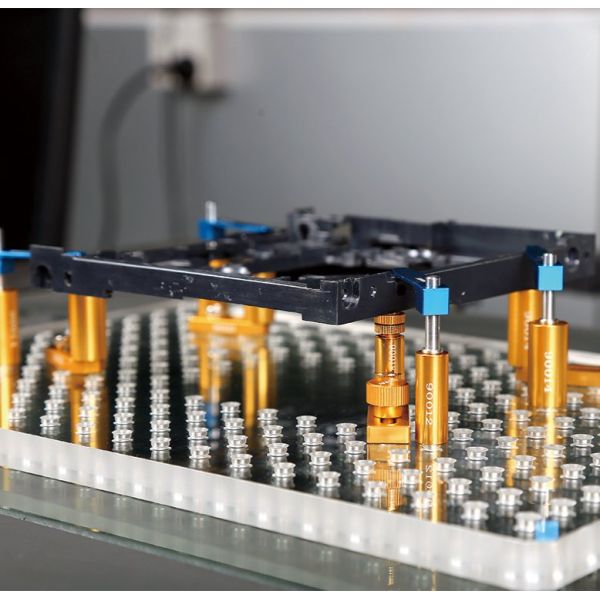

Product Application
CMM Machine Tool Holder Flexible Fixture Kits for Precision Measurement
CMM Machine Tool Holder Flexible Fixture Kits for Precision Measurement
CMM Machine Tool Holder Flexible Fixture Kits for Precision Measurement
Aerospace Industry
Automotive Industry
Electronics Industry
