Specifications
Brand Name :
MEAXPERT
Model Number :
VMM Fixturing Kits 112pcs
Place of Origin :
China
MOQ :
≥1
Price :
US$350.00-410.00
Payment Terms :
L/C,T/T
Delivery Time :
15days
Packaging Details :
Aluminum Alloy Box
After-sales service :
Online Service
Packaging :
Aluminum Alloy Box
G.W. :
20kg
Use :
VMM
Other Options :
112
Color :
Gold
Description
Bridge CMM Compatible Holding Fixture - Surface Plate Fixture for Inspection Gauges
Product Overview

Vision Measurement Machine (VMM) fixtures are precision tools designed for flexible, repeatable, and standardized measuring processes across various industries including electronics, aerospace, automotive, plastics, and medical care. Compatible with all sizes and models of VMM systems, these fixtures eliminate variation between parts and operators while increasing measurement accuracy and repeatability.

Precision Reference Platform Fixture Stable Workholding for VMM Metrology Precision Reference Platform Fixture Stable Workholding for VMM Metrology Precision Reference Platform Fixture Stable Workholding for VMM Metrology
Base Plate Specifications
  • 300×200mm with M4 thread holes
  • 400×300mm with M4 thread holes
  • 300×300mm with M4 thread holes
  • 400×400mm with M4 thread holes
  • Custom sizes available upon request
Modular Fixture System

Our comprehensive VMM fixture kit includes supporting, pressing, and holding components developed through extensive study of VMM measuring applications. The modular design allows easy fixturing management without special tools, providing solutions for parts of any shape or material.

Component Specifications
Product Name Mark Quantity
Tension clamp900014

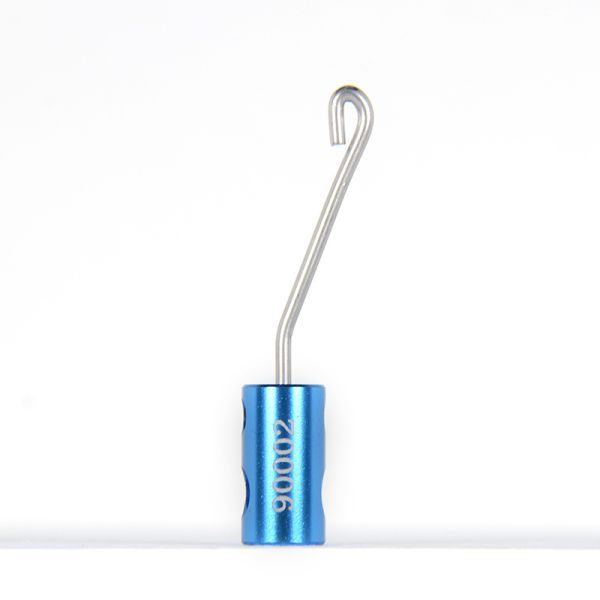

Short Wire tension clamp900024
Long Wire tension clamp900034
Short tension clamp support900048
Long tension clamp support900053
6×5mm standoff900063
6×10mm standoff900076
6×25mm standoff900086
9×5mm standoff900093
9×10mm standoff9000106
9×20mm standoff9000116
9×25mm standoff9000126
12×10mm standoff9000136
12×25mm standoff9000146
6×10mm Flat standoff9000154
9×10mm Flat standoff9000164
12×10mm Flat standoff9000174
9mm adjustable standoff9000182
6mm ball type standoff9000192
Multi-direction adaptor9000202
Tension support screw9000212
L blocks9000221
Adjustable slide9000234
Direction switching block9000241
Direction switching block base9000251
Tension support9000261
M4-M8 adaptor9000274
Transparent adjustable slide9000288
M3 screw driver9000291
Components packing
M4×10 screws (20 pcs)
Packing Suitcase
Industry Applications
Precision Reference Platform Fixture Stable Workholding for VMM Metrology Precision Reference Platform Fixture Stable Workholding for VMM Metrology Precision Reference Platform Fixture Stable Workholding for VMM Metrology
Aerospace Industry
Automotive Industry
Electronics Industry
About MEAXPERT (MXP)

MEAXPERT (MXP) is a collective of passionate metrology professionals with over a decade of industry experience. Our mission is to develop vision measurement systems that are accurate, reliable, fast, and affordable.

Our Mission

We believe in simplicity and transparency, offering clear pricing and terms for both our vision measurement systems and services. When you choose Meaxpert, you choose clarity and efficiency.

Innovation and Development

We heavily invest in technology R&D with dedicated software and hardware teams. Our hardware undergoes continuous improvement for enhanced stability, efficiency, and ease of use, while our software includes specialized modules tailored to various industry needs.

Commitment to Quality

We pursue perfection through meticulous attention to detail, from surface finishing to individual components. Our quality commitment includes rigorous material inspections, stringent process control, thorough reliability testing, and precise calibration before shipment.
