Semi Automatic Coordinate Measuring Device With High Accuracy Linear Guideways
Semi Automatic Coordinate Measuring Device With High Accuracy Linear Guideways
Specifications
Brand Name :
MEAXPERT
Model Number :
PL-3
Place of Origin :
China
MOQ :
≥1
Price :
US$3,800.00-4,500.00
Payment Terms :
L/C,D/P,T/T,Western Union,Money Gram
Delivery Time :
30days
Packaging Details :
Wooden Case
After-sales service :
Online Service
Mode of operation :
CNC
Weight(Kg) :
200
Measuring Range(mm)(X/Y/Z) :
300*200*200
Linear Scale Resolution :
0.5um
Lens :
Manual Dented Zoom Lens 0.7-4.5X (Optional Manual
Driving System :
X/Y/Z Axis Manual Control
Description

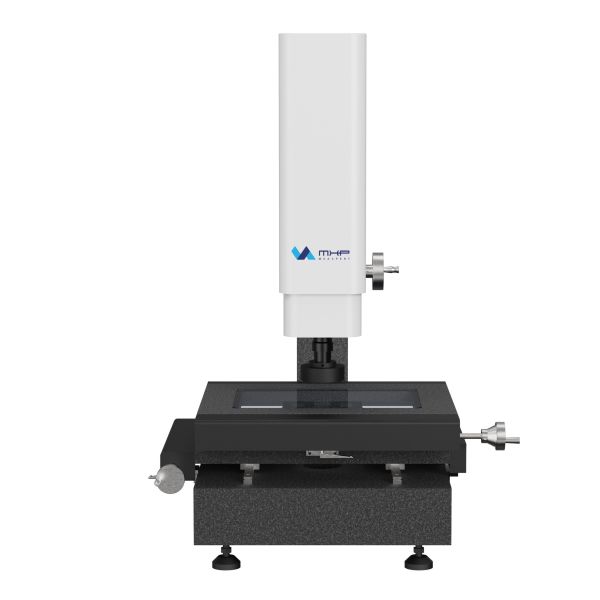

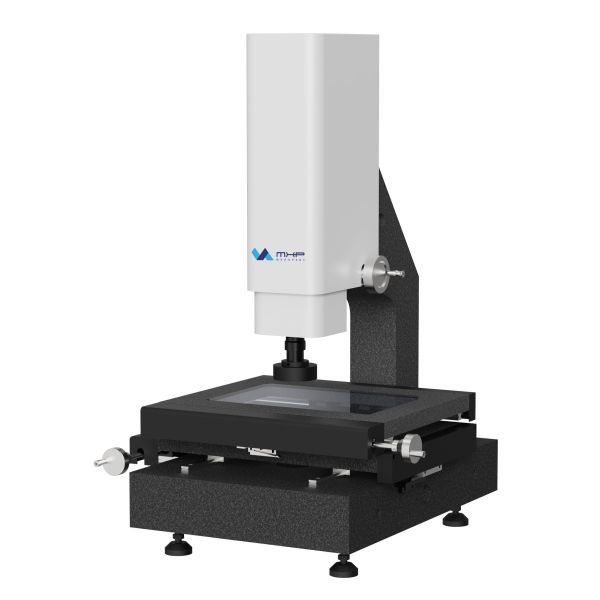

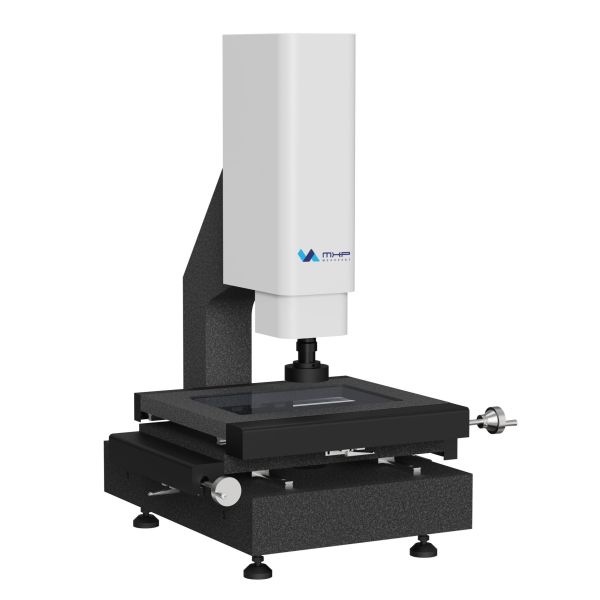

Semi-Automatic Coordinate Measuring Device with High Resolution and Repeatability
The PLUTO Series semi-automatic vision measuring machine delivers exceptional precision with high-accuracy linear guideways, providing superior dynamic performance and user experience.
Advanced Measuring Capabilities
Equipped with 3-axis 0.0005mm high-resolution linear transducers and powerful programmable measuring software, this system enables comprehensive 2D and 3D measurement functions in a single machine.
The software automatically calculates offset between optical lens and touch probe, ensuring all measurement results remain within a unified coordinate system. Results can be exported as 3D drawings for reverse engineering applications.
Semi Automatic Coordinate Measuring Device With High Accuracy Linear Guideways Semi Automatic Coordinate Measuring Device With High Accuracy Linear Guideways Semi Automatic Coordinate Measuring Device With High Accuracy Linear Guideways
Technical Specifications
Item PL-2 PL-3 PL-4
Dimension (mm) (X/Y/Z) 540/540/860 665/670/915 724/855/915
Measuring range (mm) (X/Y/Z) 200/100/150 300/200/200 400/300/200
Measuring accuracy (μm) 2.5 + L/100 2.5 + L/100 2.5 + L/100
Repeatability (μm) 2.5 2.5 2.5
Weight (kg) 150 200 255
Image and Measuring: CCD, 1.3M pixel digital camera
Lens: Manual dented zoom lens 0.7-4.5X
Magnification: 18-195X (Reference value - actual magnification varies with camera and lens combinations)
Field of View: 8.1~1.3mm (Reference value - actual FOV varies with camera and lens combinations)
Working Distance: 80mm
Linear Scale Resolution: 0.5μm
Driving System: X and Y axis manual control
Illumination: Programmable LED 8-section ring surface light, LED bottom parallel light (Optional coaxial light)
Industry Applications
Semi Automatic Coordinate Measuring Device With High Accuracy Linear Guideways Semi Automatic Coordinate Measuring Device With High Accuracy Linear Guideways Semi Automatic Coordinate Measuring Device With High Accuracy Linear Guideways
  • Aerospace Industry
  • Automotive Industry
  • Electronics Industry
About MEAXPERT (MXP)
MEAXPERT (MXP) comprises passionate metrology professionals with over a decade of industry experience, dedicated to developing accurate, reliable, fast, and affordable vision measurement systems.
Our Mission
We believe in simplicity and transparency, offering clear pricing and terms for both vision measurement systems and services without lengthy negotiations. Choosing Meaxpert means choosing clarity and efficiency.
Innovation and Development
Substantial investment in technology R&D supported by dedicated software and hardware teams ensures continuous improvement in stability, efficiency, and usability. Our specialized software modules address unique needs across various sub-industries, simplifying applications and tackling industry talent shortages.
Commitment to Quality
We pursue perfection through meticulous attention to detail—from surface finishing to individual components. Our quality commitment includes rigorous material inspections, stringent process control, thorough reliability testing, and precise calibration before shipment.
