Automated Large Scale Stitching Vision Measurement System Floor Type
Automated Large Scale Stitching Vision Measurement System Floor Type
Specifications
Brand Name :
MEAXPERT
Model Number :
Venus
Place of Origin :
China
MOQ :
≥1
Price :
US$18,000.00-22,000.00
Payment Terms :
Western Union,T/T,D/P,L/C,Money Gram
Delivery Time :
30days
Packaging Details :
Wooden Case
After-sales service :
Online Service
Warranty period :
12 Months
Mode of operation :
CNC
Weight(Kg) :
610
Measuring Range(mm)(X/Y/Z) :
600 x 400 x 200
Lens :
Dual Telecentric Large-FOV Optical Lens + 0.7-4.5X Fully Automatic Zoom Lens
Measurement Accuracy :
Large Field of View Measurement: ≦ 3um； Small Field of View Image Measurement: ≦ 2.5um ;Stitched Image Measurement: ≦ 3um
Description
Product Description
Advanced Stitching Vision Technology
Inspired by the celestial continuity of Venus, our VENUS Series stitching measurement systems bridge measurement gaps with seamless data fusion technology. These systems utilize multi-CCD synchronization to capture and precisely stitch localized images from different workpiece regions, creating complete and coherent profiles for accurate segment-based measurement.
This advanced stitching capability eliminates measurement blind spots common with traditional single-field systems when inspecting large workpieces, ensuring dimensional accuracy across entire surfaces.

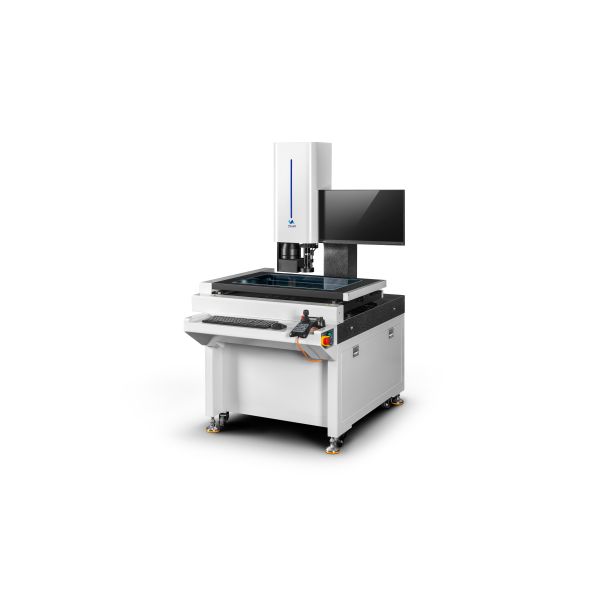

Automated Large Scale Stitching Vision Measurement System Floor Type Automated Large Scale Stitching Vision Measurement System Floor Type Automated Large Scale Stitching Vision Measurement System Floor Type

Specification
Model Venus 500
Measuring Range (X*Y*Z) (mm) 600 x 400 x 200
Effective Range (X*Y*Z) (mm) 500 x 400 x 200
Overall Dimensions (X*Y*Z) (mm) 1000 x 1320 x 1790
Weight (kg) 610
Stage Movement Fully automatic
Optical Lens Configuration Dual Telecentric Large-FOV Optical Lens + 0.7-4.5X Fully Automatic Zoom Lens
Field of View (FOV) Large FOV: 4mm x 4mm
Auto-Focus Zoom Lens FOV Range: ~0.5mm x 0.5mm to ~1.3mm x 1.3mm
Image Sensor Large-FOV Lens: HIKVISION 20 Megapixel Digital Camera
Zoom Lens: HIKVISION 1.3 Megapixel Digital Camera
Measurement Accuracy Large-FOV Measurement: ≤ 3 µm
Zoom Lens (High Mag) Measurement: ≤ 2.5 µm
Stitched Image Measurement: ≤ 3 µm
System Measurement Accuracy ≤ 3 µm
Surface Light Source For Large-FOV Lens: Coaxial LED Light. Optional: LED Ring Light.
For Auto-Focus Zoom Lens: Optional Coaxial Light or 8-Segment LED Ring Light.
Contour Light Source Dome Light / Flat LED Light
Software FlashPro Ultra-High-Speed Inspection Vision Software

Product Application

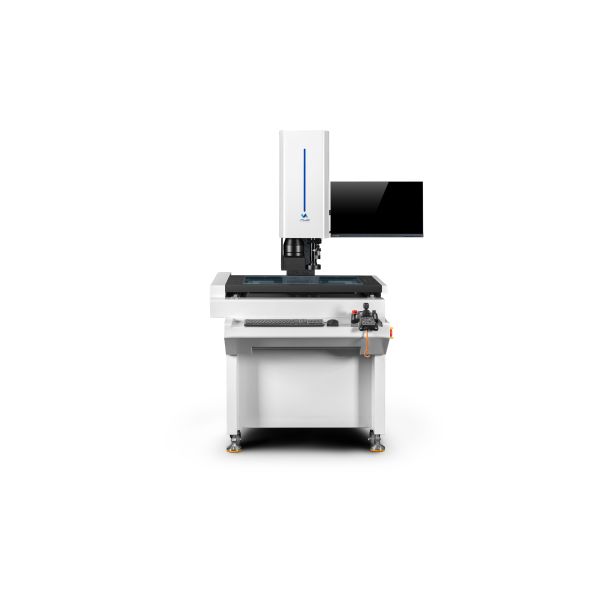

Automated Large Scale Stitching Vision Measurement System Floor Type Automated Large Scale Stitching Vision Measurement System Floor Type Automated Large Scale Stitching Vision Measurement System Floor Type
Aerospace Industry
Precision measurement for aircraft components and assemblies
Automotive Industry
Quality control for automotive parts and assemblies
Electronics Industry
High-accuracy inspection of electronic components

About MEAXPERT (MXP)
MEAXPERT (MXP) is a collective of passionate professionals in the Metrology Industry, each bringing over a decade of experience to the table. Our mission is to develop vision measurement systems that are accurate, reliable, fast, and affordable.
Our Mission
We believe in simplicity and transparency, offering clear pricing and terms for both our vision measurement systems and services to eliminate lengthy negotiations.
Innovation and Development
Supported by dedicated software and hardware teams, we continuously improve system stability, efficiency, and ease of use through weekly R&D meetings and specialized module development.
Commitment to Quality
We pursue perfection through meticulous attention to every detail, from rigorous material inspections and stringent process control to thorough reliability testing and precise calibration.
