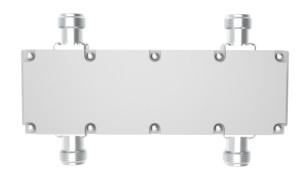

600-4200MHz 2in 2out N Female Hybrid Coupler For Connections
600-4200MHz 2in 2out N Female Hybrid Coupler For Connections
Specifications
Brand Name :
Vinncom
Model Number :
VN-HC2x2-0642-ON-xxx
Certification :
ISO 9000 ROHS
Place of Origin :
China
MOQ :
5 pcs
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Connector Type :
N Female
Frequency Range :
600-4200MHz
Operating Temperature :
-40°C~+80°C
VSWR :
≤1.25
Description

600-4200MHz 2in 2out N Female Hybrid Coupler

  • High isolation
  • Portable for installation
  • Low PIM -165dBc@43dBm*2

VN-HC2x2-0642-ON-xxx.pdf

Part Number VN-HC2x2-0642-ON-xxx
Operating Frequency ( MHz ) 600-4200
Impedance ( Ohm ) 50
VSWR 1.25
Coupling (dB) 3
Insertion Loss (dB) ±1
Isolation (dB) 24
IM3 (dBc @ 2×43dBm)@ -150/-153/-163/-165
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface N Female
Handling Power (Watt, max) 300
Peak Power (Watt, max) 1200
Dimension (mm)(L×W×H, excl connector) 155.6*44*38
Packing Dimensions (mm,L×W×H) 170*100*40
Packing Carton Size (mm,L×W×H) 520*360*105
ROHS Compliance Yes
