2in 2out 350-520MHz RF Antenna Hybrid Coupler Din Female 50 Ohm IP65 -40~+80℃
2in 2out 350-520MHz RF Antenna Hybrid Coupler Din Female 50 Ohm IP65 -40~+80℃
2in 2out 350-520MHz RF Antenna Hybrid Coupler Din Female 50 Ohm IP65 -40~+80℃
2in 2out 350-520MHz RF Antenna Hybrid Coupler Din Female 50 Ohm IP65 -40~+80℃
Specifications
Brand Name :
Vinncom
Model Number :
VN-HC2x2-035052-OD-xxx
Certification :
ISO 9000 ROHS
Place of Origin :
China
MOQ :
5 pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Connector Type :
DIN Female
Impedance :
50Ω
Operating Temperature :
-40℃~+85℃
Power :
≤20W
Storage Temperature :
-55℃~+85℃
Type :
Hybrid
VSWR :
≤1.25
Description

350-520MHz 2in 2out Din Female Hybrid Coupler

  • High isolation
  • Good returen loss
  • Good VSWR at all ports

Part Number VN-HC2x2-035052-OD-xxx
Operating Frequency ( MHz ) 350-520
Impedance ( Ohm ) 50
VSWR ≤1.25
Coupling (dB) 3.0±0.4
Insertion Loss (dB) 3.4
Isolation (dB) ≥25
IM3 (dBc @ 2×43dBm)@xxx -140 / -150 / -155 / -160/-165
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface DIN Female
Handling Power (Watt, max) 500
Peak Power (Watt, max) 1500

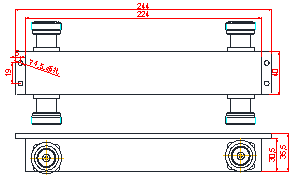

Dimension (mm)(L×W×H, excl connector) 244 × 40 × 35.5
ROHS Compliance Yes
2in 2out 350-520MHz RF Antenna Hybrid Coupler Din Female 50 Ohm IP65 -40~+80℃2in 2out 350-520MHz RF Antenna Hybrid Coupler Din Female 50 Ohm IP65 -40~+80℃
