1-6GHz 90° Hybrid Coupler
1-6GHz 90° Hybrid Coupler
Specifications
Brand Name :
Vinncom
Model Number :
VN-HC90°-1G-18G-SMAF
Certification :
ROHS ISO9000
Place of Origin :
CHINA
MOQ :
5 pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
500pcs per day
Application :
As same band combiner
Hight isolation :
20
LOW VSWR :
1.8
Connector :
SMA Female
OEM/ODM :
Acceptable
Color :
Customized
Description

1-18GHz 90° Hybrid Coupler

  • Wider frequency range
  • Portable for installation
  • Good returen loss

Part Number VN-HC90°-1G-18G-SMAF
Operating Frequency ( MHz ) 1000-18000
Phase Difference ( Ohm ) 90°
Nominal Split (dB) 3.01
Insertion Loss (dB) ≤2.0
VSWR ≤1.8:1
Amplitude Balance(dB) ≤±1.0
Phase Balance(°) ≤±10
Isolation(dB) ≥16
Impedance 50
Net Weight(KG) 0.09
Connectors SMA-F
Power (Watt, max) 20

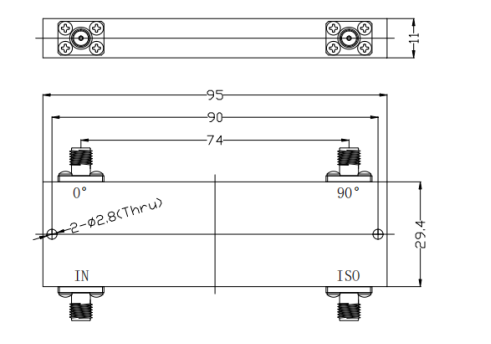

Dimension (mm)(L×W×H, excl connector) 95*29.4*11
ROHS Compliance Yes
1-6GHz 90° Hybrid Coupler
