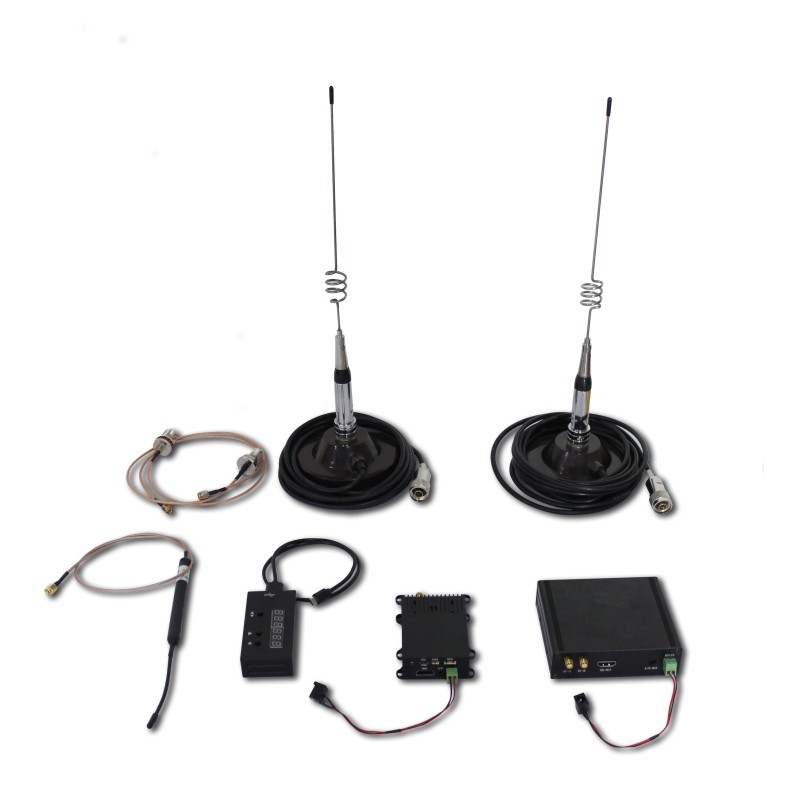

Drone Video Transmitter & Receiver Compatible Portable
Drone Video Transmitter & Receiver Compatible Portable
Drone Video Transmitter & Receiver Compatible Portable
Drone Video Transmitter & Receiver Compatible Portable
Specifications
Frequency :
300MHz-2.7GHz
Application :
UAV Drone video transmission module
Supply Ability :
1000pcs/Month
Brand Name :
OEM / LinkAV
Certification :
CE
Place of Origin :
Shenzhen China
MOQ :
1
Price :
USD, RMB
Delivery Time :
Negotiable
Packaging Details :
Brown Carton
Model Number :
MANET1614-W
Encryption :
AES256
Video Input :
HDMI & CVBS
Payment Terms :
T/T,PayPal,L/C,D/A,D/P,Western Union,
Latency :
60-100ms
Description

Introduction


The MANET1614-W is a COFDM wireless video transmitter specially designed for UAV applications. With advanced COFDM and H.264 technologies at its core, it enables to establish rugged wireless video link under all environments including high-speed mobile. The compact size makes it ideally for UAV installations.



Features


  • HDMI and CVBS dual video inputs
  • 60-80ms low system latency
  • Frequency 300MHz-2.7GHz customizable
  • Rugged aluminum alloy housing
  • Compact size and light weight
  • AES256 encryption


Specification


Transmission Characteristics
Modulation COFDM
Modulation Type QPSK(4QAM), 16QAM, 64QAM
Frequency 300MHz-2.7GHz (Default 700MHz)
RF Bandwidth 2-8MHz
FEC 1/2, 2/3, 3/4, 7/8
Guard Interval 1/4, 1/8, 1/16, 1/32
Data Characteristics
Video Input

HDMI: 1080p/1080i/720p/720i…(self-adaption)

AV: 720x480/60i (NTSC), 720x576/50i (PAL) (self-adaption)
Video Compression H.264
RF Interface SMA F head
Control Method Using the LED Control Box
Encryption AES256 (supports to set password)
Electrical Characteristics
Working Voltage DC12V
Working Current ≤1.2A (@12V)
Physical Characteristics
Weight 105g
Dimensions 77x54x23.5mm

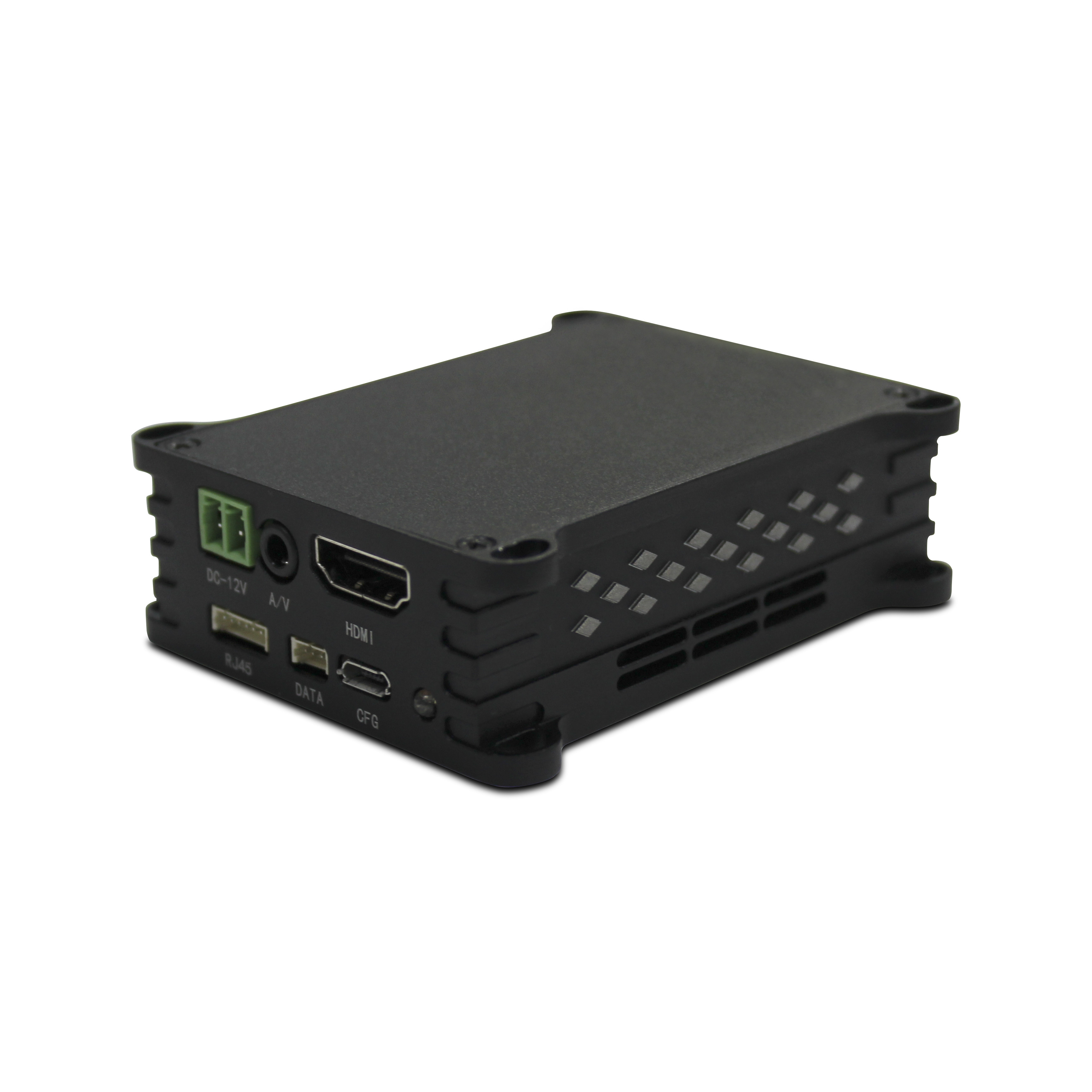

  1. Antenna interface – SMA F


  1. Power input – 2-pin, DC 12V
  2. AV video input – CVBS, analog SD
  3. HDMI video input – digital HD
  4. RJ45 port – reserved
  5. Data port – reserved
  6. CFG port – configuring port
  7. Power indicator – red light
