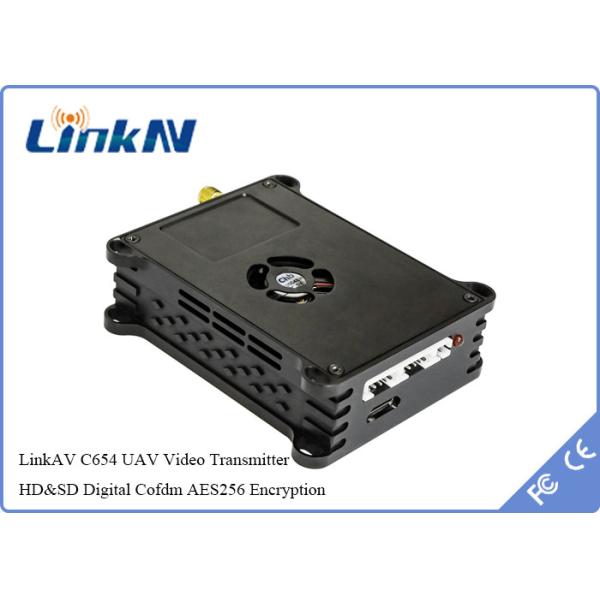

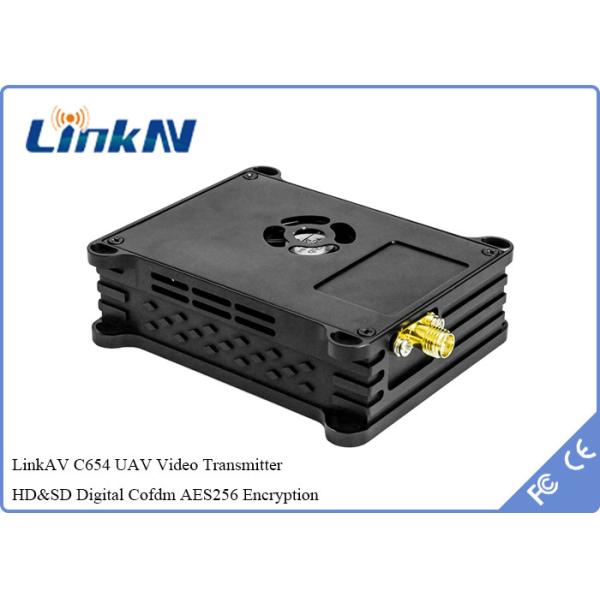

Drone Data Link UAV HD/CVBS Video Transmitter AES256
Drone Data Link UAV HD/CVBS Video Transmitter AES256
Drone Data Link UAV HD/CVBS Video Transmitter AES256
Drone Data Link UAV HD/CVBS Video Transmitter AES256
Specifications
Working Current :
1.5 A
Video Input :
CVBS/HDMI(1080P、1080i、720P、720i)
RF Interface :
SMA F interface
Application :
communicate
Working Frequency :
300-860 MHz adjustable
Modulation :
QPSK(4QAM), 16QAM,64QAM
Payment Terms :
T/T,PayPal,L/C,D/A,D/P,Western Union,
Encryption :
256 bit AES
Brand Name :
OEM / LinkAV
Certification :
CE
Place of Origin :
Shenzhen China
MOQ :
1
Price :
USD, RMB
Supply Ability :
1000pcs/Month
Delivery Time :
10 working days
Packaging Details :
Brown Carton
Model Number :
MANET1614-W
Working Voltage :
DC 12V
Description

Introduction


The MANET1614-W is a COFDM wireless video transmitter specially designed for UAV applications. With advanced COFDM and H.264 technologies at its core, it enables to establish rugged wireless video link under all environments including high-speed mobile. The compact size makes it ideally for UAV installations.


Features

  • HDMI and CVBS dual video inputs
  • 60-80ms low system latency
  • Frequency 300MHz-2.7GHz customizable
  • Rugged aluminum alloy housing
  • Compact size and light weight
  • AES256 encryption

Specification


Transmission Characteristics
Modulation COFDM
Modulation Type QPSK(4QAM), 16QAM, 64QAM
Frequency 300MHz-2.7GHz (Default 700MHz)
RF Bandwidth 2-8MHz
FEC 1/2, 2/3, 3/4, 7/8
Guard Interval 1/4, 1/8, 1/16, 1/32
Data Characteristics
Video Input

HDMI: 1080p/1080i/720p/720i…(self-adaption)

AV: 720x480/60i (NTSC), 720x576/50i (PAL) (self-adaption)
Video Compression H.264
RF Interface SMA F head
Control Method Using the LED Control Box
Encryption AES256 (supports to set password)
Electrical Characteristics
Working Voltage DC12V
Working Current ≤1.2A (@12V)
Physical Characteristics
Weight 105g
Dimensions 77x54x23.5mm



  1. Antenna interface – SMA F


  1. Power input – 2-pin, DC 12V
  2. AV video input – CVBS, analog SD
  3. HDMI video input – digital HD
  4. RJ45 port – reserved
  5. Data port – reserved
  6. CFG port – configuring port
  7. Power indicator – red light



Application


Drone Data Link UAV HD/CVBS Video Transmitter AES256



FAQ:

1. Are you a manufacturer or a trading company?
We're professional manufacturer specializing in wireless video transmission.
2. Why should I choose you?
You'll get competitive price, prime quality, satisfied service and long warranty.
3. What kind of product service can I have?
OEM & ODM service.
4. What kind of warranty do you offer?
One year warranty and lifelong maintenance on our products.
5. What're the payment terms?
We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
6. Packaging & Shipping?
Standard export packaging. Ship by express DHL, UPS, EMS, TNT, Fedex, or by air/sea.
7. How long for delivery?
1-3 weeks (regular model), 3-5 weeks (customized model).

Please feel free to contact us today about your needs. You'll soon find that any of your inquiry will be answered within a short time!
