Specifications
Brand Name :
LINK-MI
Model Number :
LM-TVM48
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, PayPal, Bank Transfer
Delivery Time :
5-7 work days
Packaging Details :
White/Brown/Color Box
Model No :
LM-TVM48
Bandwidth :
18Gbit/s
Video Format Supported :
4K@60Hz,YUV4:4:4 8bit 4k@30Hz/1080P/1080i/720P
Audio Formats Supported :
LPCM 2.0
Input ports :
4x HDMI Ports
Output ports :
4x RJ45 Ports and 4x HDMI Ports
Matrix mode :
4x4 seamless switching
Video wall mode :
Multiple video wall modes
Multi-viewer mode :
Multiple multi-viewer modes
Dimensions :
Matrix: L262 x W163 x H36 mm
Description

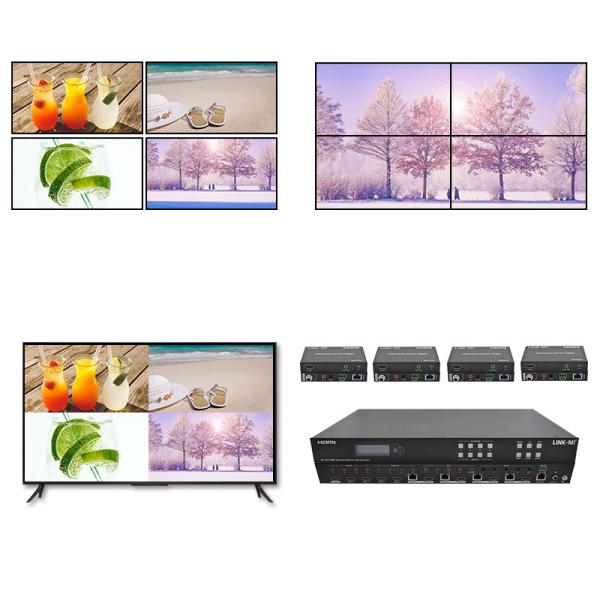

70m 4K60Hz HDMI 4x4 Seamless Matrix Video Wall Controller Multi-Viewer Audio Matrix with EDID

Introduction

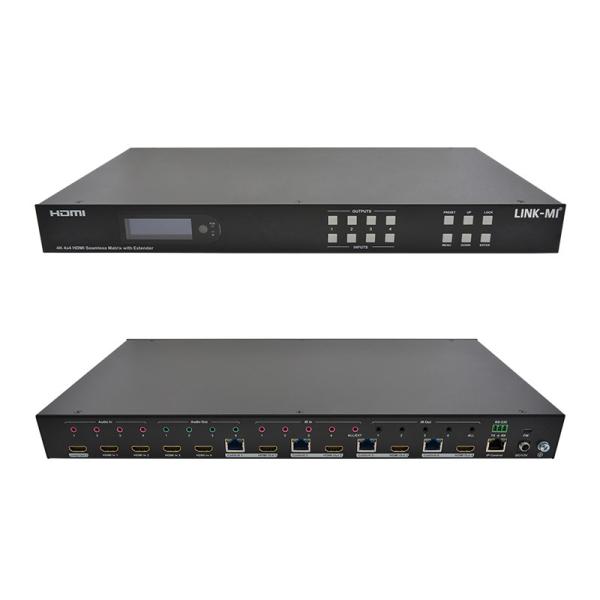

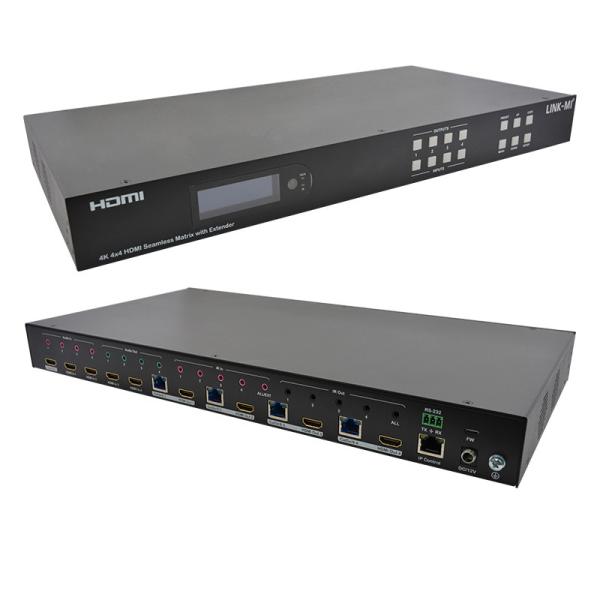

LINK-MI LM-TVM48 is a multifunctional 4 in 4 out Matrix with Extender up to 70m. It supports resolution up to 4K60Hz. It comes with 3 major functions: Matrix / Video Wall Controller / Multi-Viewer

Feature

1. 70m 4x4 HDMI 2.0 Seamless Matrix, 4 HDMI Inputs to 4 RJ45 Outputs with 4 HDMI Loops out

2. Support 4K@60Hz 4:4:4 8bit, HDCP 2.2

3. Seamless Matrix Mode: 4 in 4 out no switching delay and signal loss

4. Video Wall Mode: Up to 7 different modes built-in and supports cascading

5. Multi-Viewer Mode: Display 4 videos on the same screen and has multiple modes built-in

6. Audio Matrix: Analog audio embedded & extraction, the audio can be independently switching

7. With EDID management

8. Support LPCM 2.0 Audio format

9. Support PoC (Power over Cable): RX powered by TX

10. Control via Panel button, Remote, RS232, TCP/IP Control

Specification

Model No. LM-TVM48
Operating Temperature Range -5 to +40°C(23 to +104 °F)
Storage Temperature Range -10 to +60°C(-14 to +140 °F)
Operating Humidity Range 5 to 90 % RH (no condensation)
Video Input Connectors 4x HDMI Type A, 19-pin, female
Video Output Connectors 4x RJ45 female and 4x HDMI Type A, 19-pin, female
Bandwidth 18Gbit/s
Video Format Supported 4K@60Hz,YUV4:4:4 8bit
4k@30Hz/1080P/1080i/720P
Audio Formats Supported LPCM 2.0
HDCP Compliant HDCP 2.2 and HDCP 1.4
Input ports 4x HDMI Ports
Output ports 4x RJ45 Ports and 4x HDMI Ports
Matrix mode 4x4 seamless switching
Video wall mode Multiple video wall modes
Multi-viewer mode Multiple multi-viewer modes
Power Consumption 41 watts (Max.)
Dimensions Matrix: L262 x W163 x H36 mm
Mass (Main Unit) Matrix: 2710g
Note: Specifications are subject to change without notice.

Connection Diagram


70m 4x4 4K Video Wall Controller 4x4 4K60Hz Seamless Matrix Multi Viewer

70m 4x4 4K Video Wall Controller 4x4 4K60Hz Seamless Matrix Multi Viewer

70m 4x4 4K Video Wall Controller 4x4 4K60Hz Seamless Matrix Multi Viewer

FAQ

Q1: Are you a factory or trading company?

A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.

Q2: Why should we choose you?

A2: We can offer products with factory price, good quality, best service and long warranty.

Q3: How about your product service?

A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.

Q4: How about the payment terms?

A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.

Q5: How do you ship the package?

A5: DHL, Fedex, EMS, by air, by sea...etc.

Q6: What kinds of warranty do you offer?

A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.

Q7: How could I buy the products I need if there is no price on the website?

A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
