Specifications
Brand Name :
LINK-MI
Model Number :
LM-VW03
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, PayPal, Bank Transfer
Delivery Time :
5-7 work days
Packaging Details :
White/Brown/Color Box
Model No. :
LM-VW03
Input Ports :
1x USB TYPE-C, 1x DP, 1x VGA, 1x HDMI
Output Ports :
9x HDMI, 1x HDMI Loop out
Audio Output :
1x SPDIF, 1x Analog Stereo Audio
Control Ports :
1x RS232, 1x Ethernet
Resolution :
Max 4K@30Hz
Video Wall Preset :
1x1, 2x2, 4x1, 1x4, 3x2-2, 4x2-1, 4x2-2, 4x3-1, 4x3-2, 4x3-2
Cascade Video Wall :
3x3, 4x4, 4x6, 5x6, 6x6...max 10x10
Control Methods :
Panel buttons, IR remote, RS232, Web GUI, third-party platform control
Weight :
438mm(L)x274mm(W)x44mm(H)
Description

4K Ultra HD Video Wall Controller 3X3 HDMI/DP/VGA/USB Type-C Input 9-Channel Output 1U Rack Design

Introduction

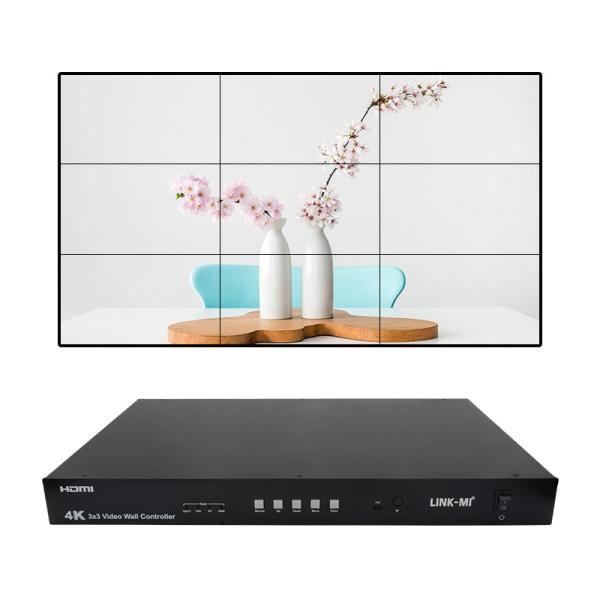

LINK-MI LM-VW03 is a professional 9-channel ultra HD 4K Video Wall Controller. It's used to distribute signals to multiple display units for splicing display. It comes with 4 input signals like 1 HDMI / 1 USB Type C / 1 DP / 1 VGA; with 9 channels HDMI outputs, and extra 1 HDMI Loop output for single display or cascading. User can switch any one of the 4 input signals to display on 9 TV monitors to make a large 3x3 video wall or 1x1, 1x3, 1x4, 2x2, 2x3, 2x4, 3x1, 3x2, 3x3, 4x1, 4x2...display modes, and cascade 3x4, 4x3, 4x4, 5x5, 6x6...max 10x10 video wall in cascading connection.

Meanwhile, it also supports 1x9 HDMI splitter mode, SPDIF and Analog audio extraction, highest UHD resolution up to 3840x2160@30Hz, 180° rotation, EDID management. User can control it easily via remote, panel buttons, RS232 command, Web GUI control and third-party platform control. It's in 1U rack design, easy to install.

Features

1. Support USB TYPE-C /VGA/DP / HDMI input.
2. Support 4K 3x3 video wall, cascading to create 3x4, 4x5, 5X6 and max 10x10 video wall.
3. Support output image 180° rotation.
4. Support highest resolution up to 4K30HZ 4:4:4.
5. Support EDID management: Two default EDID: 4K30HZ, 1080P.
6. Support HDCP2.2/1.4.
7. Support panel button; IR remote; RS232 command and Web GUI to control.
8. Support SPDIF andAnalog audio extraction
9. Support third-party platform control via RS232 port or Lan.
10. 1U rack design, easy installment.

Specification

Model No. LINK-MI LM-VW03
Input Ports

1x USB TYPE-C, 1x DP, 1x VGA, 1x HDMI

Output Ports

9x HDMI, 1x HDMI Loop out for single display or cascade connection)

1x SPDIF, 1x Analog Stereo Audio

Control Ports 1x RS232, 1x Ethernet
HDCP HDCP 2.2/1.4
Input Video Signal 0.5-1.0 volts p-p
Input DDC Signal 5 volts p-p (TTL)

Video Format

Ultra HD TV/FH DTV: 4K@30Hz/1080P

Audio Format

LPCM 16bit, 24bit, 44.1KHz/48KHz
Control Methods Panel buttons; IR remote; RS232 command, Web GUI, third-party platform control
Video Wall Modes

1x1, 1x3, 1x4, 2x2, 2x3, 2x4, 3x1, 3x2, 3x3, 4x1, 4x2...

Cascade to make 4x3-1; 4x3-2; 3x4-1; 3x4-2; 4x4-1; 4x4-2

Cascade: 4x3, 4x4, 5x5, 6x6...and so on, max 10x10 video wall

Other Functions 1x9 HDMI Splitter Mode, 180° rotation, EDID Management, Audio Extraction...
Power Supply DC 24V 2A
Power Consumption 33watts (Maximun)
Operating Temperature 0 to +40°C (32 to +104°F)
Operating Humidity 5 to 90 % RH (no condensation)
Material Metal Enclosure
Color Black
Dimension 438mm(L)x274mm(W)x44mm(H)
Weight 4KG
Note: Specifications are subject to change without notice
Connection Diagram

Ultra HD 4K Video Wall Controller HDMI DP 3x3 Video Wall Processor VGA USB Type-CUltra HD 4K Video Wall Controller HDMI DP 3x3 Video Wall Processor VGA USB Type-C

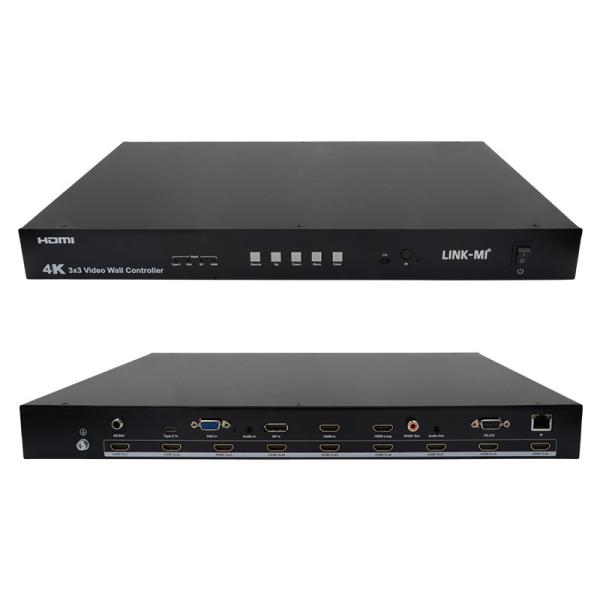

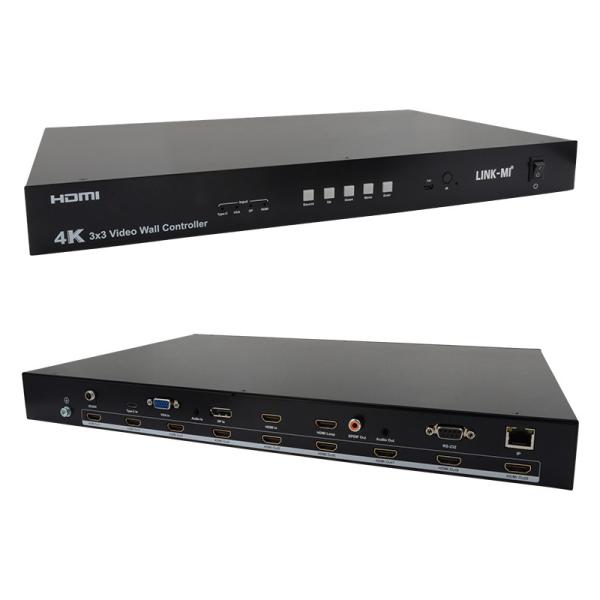

Panel Description

Ultra HD 4K Video Wall Controller HDMI DP 3x3 Video Wall Processor VGA USB Type-C

FAQ

Q1: Are you a factory or trading company?

A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.

Q2: Why should we choose you?

A2: We can offer products with factory price, good quality, best service and long warranty.

Q3: How about your product service?

A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.

Q4: How about the payment terms?

A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.

Q5: How do you ship the package?

A5: DHL, Fedex, EMS, by air, by sea...etc.

Q6: What kinds of warranty do you offer?

A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.

Q7: How could I buy the products I need if there is no price on the website?

A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.

User Manual:

LM-VW03 4K 3x3 Video Wall Controller.pdf
