BNC 1080p HDMI Converter HDMI To HD SDI Converter 2.5Watt
BNC 1080p HDMI Converter HDMI To HD SDI Converter 2.5Watt
BNC 1080p HDMI Converter HDMI To HD SDI Converter 2.5Watt
BNC 1080p HDMI Converter HDMI To HD SDI Converter 2.5Watt
BNC 1080p HDMI Converter HDMI To HD SDI Converter 2.5Watt
BNC 1080p HDMI Converter HDMI To HD SDI Converter 2.5Watt
BNC 1080p HDMI Converter HDMI To HD SDI Converter 2.5Watt
BNC 1080p HDMI Converter HDMI To HD SDI Converter 2.5Watt
Specifications
Brand Name :
LINK-MI
Model Number :
LM-HSD3
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, PayPal, Bank Transfer
Delivery Time :
5-7 work days
Packaging Details :
White/Brown/Color Box
Model No. :
LM-HSD3
Resolutions Support :
1080p (50/60/59.94/30/29.97/25/24/23.98Hz) 1080i (60/59.94/50Hz), 720p (60/59.94/50Hz) 480i (60/59.94Hz)
SDI Standard :
3G -SDI/HD-SDI/SDI
Input :
1x HDMI (Standard Type A connector)
Output :
2x SDI(BNC)
Power consumption :
2.5watts(Maximum)
Operating Temperature Range :
-5 to +35℃(+23 to +95℉)
Operating Humidity Range :
5 to 90%RH (No Condensation)
Description

HDMI to HD SDI Converter

Introduction

LINK-MI LM-HSD3 is a HDMI to SDI Converter. It can convert HDMI to SD/HD/3G-SDI. It distributes 1 HDMI source to 2 SDI output simultaneously.

Features

1. HDMI to SDI Analogue Conversion
2. Full HDMI support including embedded audio
3. Distributes 1 HDMI source to 2 SDI output simultaneously.
4. Support 1080p@25Hz,1080p@29.97Hz,1080p@30Hz,1080P@60Hz
5. Compliant HDCP
6. Uses 5V power

Specification

Operating Temperature Range

-5 to +35℃(+23 to +95℉)

Operating Humidity Range

5 to 90%RH (No Condensation)

Resolutions Support

1080p (50/60/59.94/30/29.97/25/24/23.98Hz)

1080i (60/59.94/50Hz), 720p (60/59.94/50Hz)

480i (60/59.94Hz)

SDI Standard

3G -SDI/HD-SDI/SDI

Input

1x HDMI (Standard Type A connector)

Output

2x SDI(BNC)

Power consumption

2.5watts(Maximum)

Dimension (L×W×H)

95x95x29mm

Net Weight

245g
Note: Specifications are subject to change without notice

Connection Diagram

BNC 1080p HDMI Converter HDMI To HD SDI Converter 2.5Watt

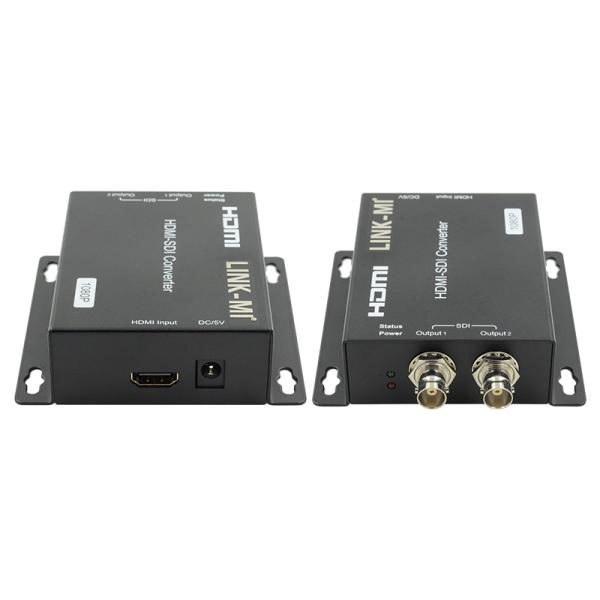

Panel Description

BNC 1080p HDMI Converter HDMI To HD SDI Converter 2.5Watt

FAQ

Q1: Are you a factory or trading company?

A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.

Q2: Why should we choose you?

A2: We can offer products with factory price, good quality, best service and long warranty.

Q3: How about your product service?

A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.

Q4: How about the payment terms?

A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.

Q5: How do you ship the package?

A5: DHL, Fedex, EMS, by air, by sea...etc.

Q6: What kinds of warranty do you offer?

A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.

Q7: How could I buy the products I need if there is no price on the website?

A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.

User Manual:

LM-HSD3 HDMI to SDI Converter with loop out.pdf
