4K HDMI To SDI Converter With Loop Out Support 12G 4K@60Hz EDID Max 120m
4K HDMI To SDI Converter With Loop Out Support 12G 4K@60Hz EDID Max 120m
4K HDMI To SDI Converter With Loop Out Support 12G 4K@60Hz EDID Max 120m
4K HDMI To SDI Converter With Loop Out Support 12G 4K@60Hz EDID Max 120m
4K HDMI To SDI Converter With Loop Out Support 12G 4K@60Hz EDID Max 120m
4K HDMI To SDI Converter With Loop Out Support 12G 4K@60Hz EDID Max 120m
4K HDMI To SDI Converter With Loop Out Support 12G 4K@60Hz EDID Max 120m
4K HDMI To SDI Converter With Loop Out Support 12G 4K@60Hz EDID Max 120m
Specifications
Brand Name :
LINK-MI
Model Number :
LM-HSD6
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, PayPal, Bank Transfer
Delivery Time :
5-7 work days
Packaging Details :
White/Brown/Color Box
Model No. :
LM-HSD6
Input :
1x HDMI input
Output :
1 x HDMI output 1x SDI output
Resolution supports :
4k@60hzYUV4:2:2/4k@30HZ/1080p/1080i/720p, etc..
Audio format supported :
PCM2.0 16-24bit 48KHz
Output Video Signal :
SDI & HDMI
Dimension (L×W×H) :
L94mm×W79mm×H20mm
Power supply :
DC 12V/1A
SDI cable distance :
80m for 12G 4k@60hz and 6G 4k@30hz , 120m for 3G 1080p
Net Weight :
182g
Description

4K HDMI to SDI Converter with loop out Support 12G, 4K@60Hz, EDID, Max. 120m

Introduction

LINK-MI LM-HSD6 is a 4K HDMI to SDI Converter with loop out which supports long SDI cable runs up to 120M. It supports EDID, HDCP2.2 and firmware upgrade.

Feature

1. Support HDMI resolution up to 4K@60Hz YUV4:2:2.

2. Bandwidth up to 12Gbps.

3. Support long SDI cable runs up to: 80m for 12G 4k@60hz and 6G 4k@30hz , 120m for 3G 1080p.

4. Support HDCP2.2/1.4.

5. 1x HDMI loop out.

6. Support EDID management: copy EDID or default EDID.

7. Support PCM2.0 16-24bit, 48KHz audio format.

8. Support Micro USB port for firmware upgrade.

Specification

Model No. LM-HSD6
Operating Temperature Range -5 to +40°C(+23 to +104°F)
Operating Humidity Range 5 to 90%RH (No Condensation)
Input 1x HDMI input
Output

1 x HDMI output

1x SDI output
Resolution supports 4k@60hzYUV4:2:2/4k@30HZ/1080p/1080i/720p, etc..
Audio format supported PCM2.0 16-24bit 48KHz
Output Video Signal SDI & HDMI
Dimension (L×W×H) L94mm×W79mm×H20mm
Power supply DC 12V/1A
Power consumption 12W(MAX)
SDI cable distance 80m for 12G 4k@60hz and 6G 4k@30hz , 120m for 3G 1080p
Net Weight 182g
Note: Specifications are subject to change without notice.

Connection Diagram
4K HDMI To SDI Converter With Loop Out Support 12G 4K@60Hz EDID Max 120m

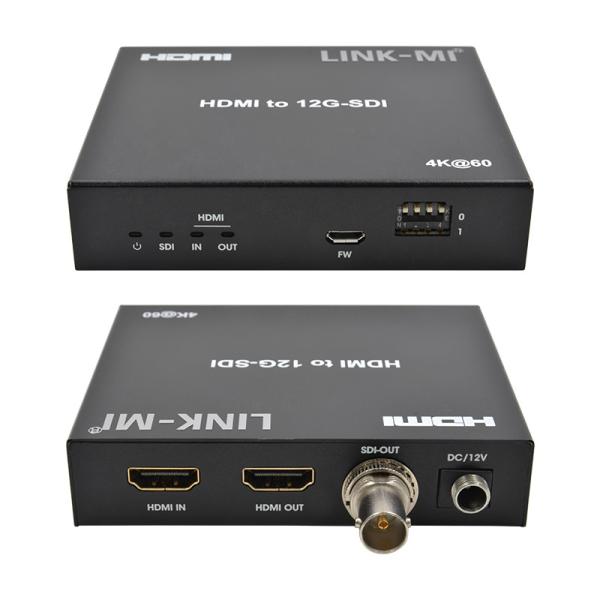

Panel Description

4K HDMI To SDI Converter With Loop Out Support 12G 4K@60Hz EDID Max 120m

FAQ

Q1: Are you a factory or trading company?

A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.

Q2: Why should we choose you?

A2: We can offer products with factory price, good quality, best service and long warranty.

Q3: How about your product service?

A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.

Q4: How about the payment terms?

A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.

Q5: How do you ship the package?

A5: DHL, Fedex, EMS, by air, by sea...etc.

Q6: What kinds of warranty do you offer?

A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.

Q7: How could I buy the products I need if there is no price on the website?

A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.

User Manual:
