Specifications
Brand Name :
LINK-MI
Model Number :
LM-HC04
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, PayPal, Bank Transfer
Delivery Time :
5-7 work days
Packaging Details :
White/Brown/Color Box
Model No. :
LM-HC04
Application :
Supports Apple TV and various Blu-ray player, satellite receivers
Support Video format :
4Kx2K/1080P/1080i/720P/576P/576i/480P/480i 3D video
Support Video Color Format :
xv-YCC/deep color 36bit
Support Audio Format :
PCM, DTS-HD Master Audio, Dolby true-HD etc
Data transfer speed rate :
18Gbps(Maximum)
Audio embedding :
AUTO, SPDIF5.1, Analog Audio PCM2.0 output
CEC :
Supported
Description

4K HDMI Audio Extractor Support Audio Embedding DIP Switch CEC

Introduction

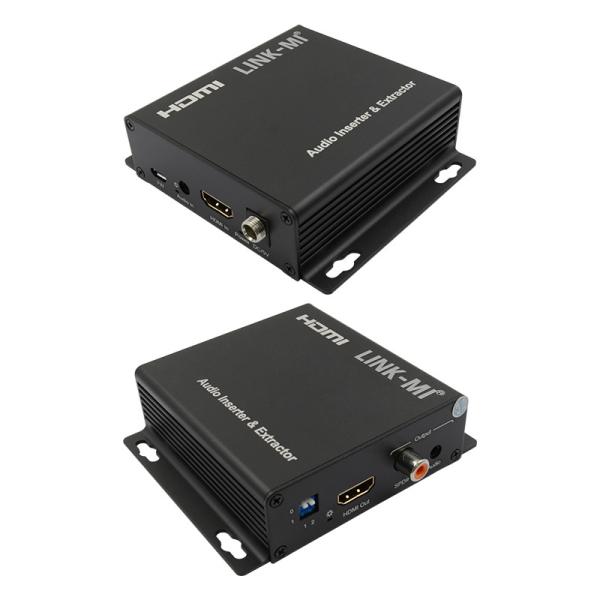

LINK-MI LM-HC04 is a 4K HDMI Audio Extractor. It is used to extract digital HDMI audio signal from HDMI input. It supports resolution up to 4K@60Hz. It supports audio embedding, CEC and firmware update.

Features

1. Support audio embedding, AUTO, SPDIF5.1, Analog Audio PCM2.0 output
2. Support 2 DIP switch to extract the digital HDMI audio signal from the HDMI input to 2 channel analog stereo output or 5.1 channel Audio output
3. Support audio uncompressed PCM, Dolby, DTS
4. Support resolution up to 4K2K60HZ, bandwidth 18Gbps
5. HDCP2.2/1.4 Compliant
6. Support CEC
7. Support firmware updating through USB port

Specification

Operating Temperature Range

-5 to +40℃(+23 to +104℉)

Operating Humidity Range

5 to 90%RH (No Condensation)

Input Video Signal

0.5-1.0 Volts P-P

Input DDC Signal

5 volts p-p(TTL)

Support Video format

4Kx2K/1080P/1080i/720P/576P/576i/480P/480i 3D video

Support Video Color Format

xv-YCC/deep color 36bit

Support Audio Format
PCM,DTS-HD Master Audio,Dolby true-HD etc.

Data transfer speed rate

18Gbps(Maximum)
HDCP
Compliant HDCP2.2/1.4

Power consumption

1.5watts(Maximum)

Dimension (L×W×H)
104.4x89x28.3mm

Net Weight

155g
Note: Specifications are subject to change without notice

Connection Diagram

4K 2K HDMI Audio Extractor Support Audio Embedding DIP Switch CEC

Panel Description

4K 2K HDMI Audio Extractor Support Audio Embedding DIP Switch CEC

FAQ

Q1: Are you a factory or trading company?

A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.

Q2: Why should we choose you?

A2: We can offer products with factory price, good quality, best service and long warranty.

Q3: How about your product service?

A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.

Q4: How about the payment terms?

A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.

Q5: How do you ship the package?

A5: DHL, Fedex, EMS, by air, by sea...etc.

Q6: What kinds of warranty do you offer?

A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.

Q7: How could I buy the products I need if there is no price on the website?

A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.

User Manual:

LM-HC04 HDMI2.0 Audio Extractor & Inserter 4K@60H...
