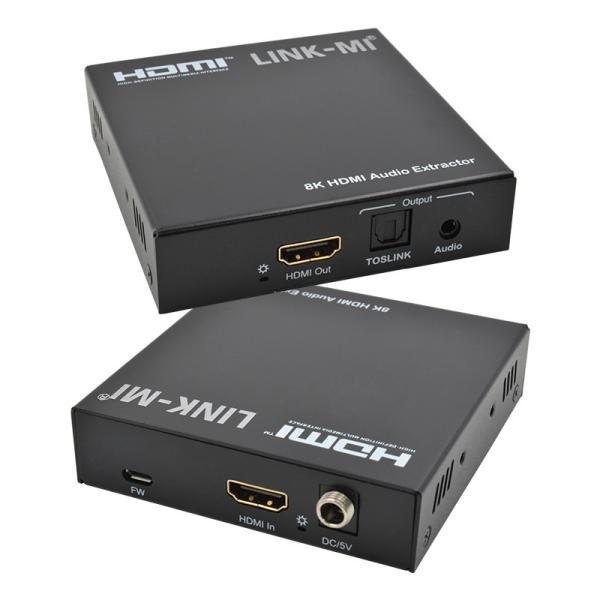

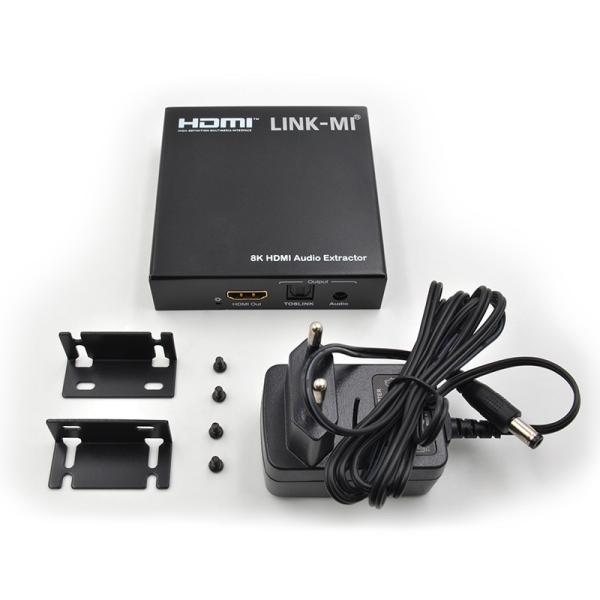

Audio Extractor HDMI 2.1 Audio Splitter 4k Support 8K 60Hz YUV4:2:0 CEC
Audio Extractor HDMI 2.1 Audio Splitter 4k Support 8K 60Hz YUV4:2:0 CEC
Audio Extractor HDMI 2.1 Audio Splitter 4k Support 8K 60Hz YUV4:2:0 CEC
Audio Extractor HDMI 2.1 Audio Splitter 4k Support 8K 60Hz YUV4:2:0 CEC
Audio Extractor HDMI 2.1 Audio Splitter 4k Support 8K 60Hz YUV4:2:0 CEC
Audio Extractor HDMI 2.1 Audio Splitter 4k Support 8K 60Hz YUV4:2:0 CEC
Audio Extractor HDMI 2.1 Audio Splitter 4k Support 8K 60Hz YUV4:2:0 CEC
Audio Extractor HDMI 2.1 Audio Splitter 4k Support 8K 60Hz YUV4:2:0 CEC
Specifications
Brand Name :
LINK-MI
Model Number :
LM-HC05
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, PayPal, Bank Transfer
Delivery Time :
5-7 work days
Packaging Details :
White/Brown/Color Box
Model No. :
LM-HC05
Input DDC Signal :
5 volts p-p(TTL)
Support Video format :
8Kx4K/4Kx2K/1080P/1080i/720P/576P/576i/480P/480i
Support Video Color Format :
deep color 10bit(8K60hz YUV4:2:0)
Support Audio Format :
LPCM, DTS, Dolby(CH7.1)
Data transfer speed rate :
40Gbps (Maximum)
HDCP :
Compliant HDCP2.2/1.4
Power consumption :
1.65watts(Maximum)
Dimension (L×W×H) :
104.4x86x28.3mm
Net Weight :
155g
Description

HDMI 2.1 Audio Extractor Support 8K@60Hz, YUV4:2:0, CEC

Introduction

LINK-MI LM-HC05 HDMI 2.1 Audio Extractor comes with 1 HDMI in, 1 HDMI out. It supports audio extraction and resolution up to 8K@60Hz. It also supports CEC and firmware upgrade.

Feature

1. Support one HDMI input, one HDMI output.

2. Support audio extraction, SPDIF(5.1CH) & Analog Audio PCM2.0 output.

3. Support audio format: LPCM, DTS, Dolby(CH7.1).

4. Support HDMI2.1 version.

5. Support resolution up to 8K60Hz YUV4:2:0 10bit, bandwidth 40Gbps.

6. HDCP2.2/1.4 Compliant.

7. Support CEC.

8. Support firmware updating through USB port.

Specification

Model No. LM-HC05
Operating Temperature Range -5 to +40℃(+23 to +104℉)
Operating Humidity Range 5 to 90%RH (No Condensation)
Input Video Signal 0.5-1.0 Volts P-P
Input DDC Signal 5 volts p-p(TTL)
Support Video format 8Kx4K/4Kx2K/1080P/1080i/720P/576P/576i/480P/480i
Support Video Color Format deep color 10bit(8K60hz YUV4:2:0)
Support Audio Format LPCM, DTS, Dolby(CH7.1)
Data transfer speed rate 40Gbps (Maximum)
HDCP Compliant HDCP2.2/1.4
Power consumption 1.65watts(Maximum)
Dimension (L×W×H) 104.4x86x28.3mm
Net Weight 155g
Note: Specifications are subject to change without notice

Connection Diagram

Audio Extractor HDMI 2.1 Audio Splitter 4k Support 8K 60Hz YUV4:2:0 CEC

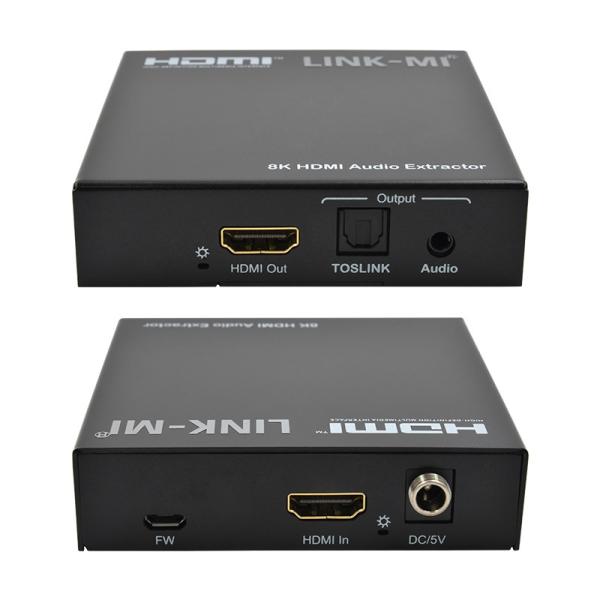

Panel Description

Audio Extractor HDMI 2.1 Audio Splitter 4k Support 8K 60Hz YUV4:2:0 CEC

FAQ

Q1: Are you a factory or trading company?

A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.

Q2: Why should we choose you?

A2: We can offer products with factory price, good quality, best service and long warranty.

Q3: How about your product service?

A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.

Q4: How about the payment terms?

A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.

Q5: How do you ship the package?

A5: DHL, Fedex, EMS, by air, by sea...etc.

Q6: What kinds of warranty do you offer?

A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.

Q7: How could I buy the products I need if there is no price on the website?

A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.

User Manual:

LM-HC05 HDMI2.1 Audio Extractor 8K@60Hz.pdf
