V Type Powder Mixer 50L-5000L Stainless Steel Electric Mixer Blender

Specifications

Brand Name :

EVERSUN

Model Number :

Certification :

ISO,CE

Place of Origin :

CHINA

MOQ :

1set

Price :

negotiable

Payment Terms :

L/C,D/A,D/P,T/T,MoneyGram,Western Union

Supply Ability :

5000set/year

Delivery Time :

within 7-15 work days

Packaging Details :

Standard export wooden cases

Volume :

50L-5000L

Function :

Mixer Blender

Weight :

120-2300kg

Application :

Mixing dry powder materials

Driving Type :

Electric

Features :

V-shaped container, double helix mixing blades, adjustable mixing speed

Noise :

≤80dB

Dynamic Type :

Electric

Product Type :

powder and granules

Dimension :

Customizable

Material :

Stainless Steel

Power Supply :

220V/380V

Model :

V Type Powder Mixer

Description

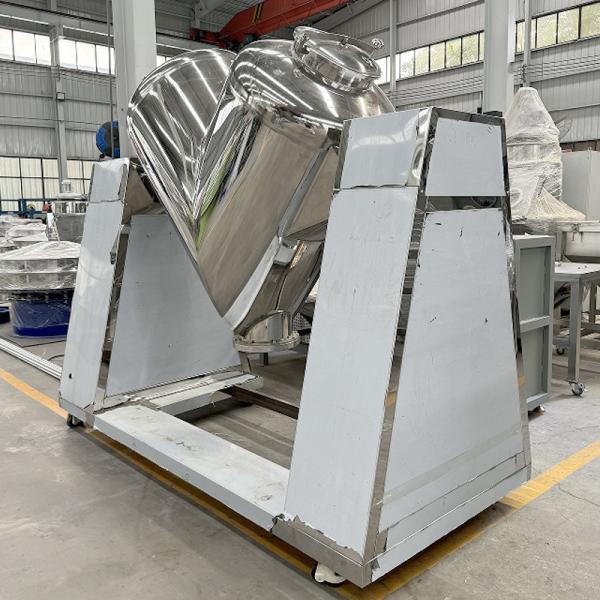

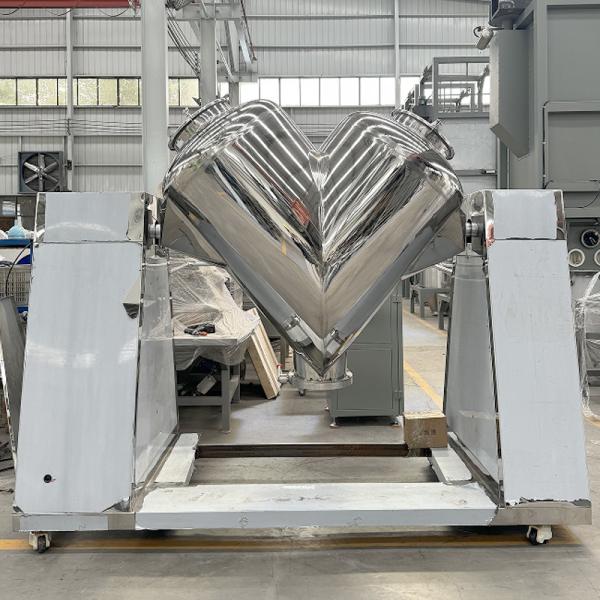

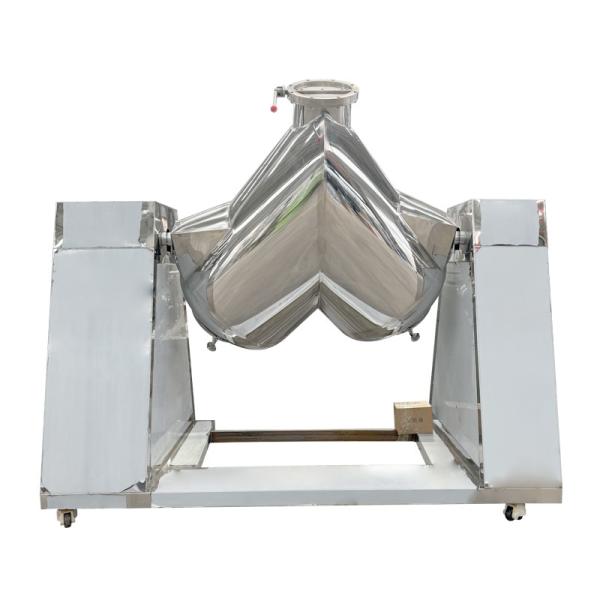

V-Type Mixer

Product Description

The V-shaped mixer is a commonly used powder mixing equipment in industries such as pharmaceuticals, food, and chemicals. It is composed of two V-shaped cylinders and can rotate around the axis. It has high mixing efficiency, few dead corners, and low residue. It is suitable for dry powders or granules with good fluidity and can be adapted to various scenarios ranging from small-scale trials to industrial production.

Working Principle

The working principle of the V-shaped mixer is based on the forced convection and diffusion movement of the materials within the V-shaped cylinder: When two circular cylinders arranged in a V shape rotate around the central axis, the materials inside the cylinder will be lifted to a certain height as the cylinder rotates, and then they will slide down towards the bottom V-shaped intersection point under the influence of gravity.
During this process, the materials continuously transfer from one side of the cylinder to the other, resulting in intense segregation, merging and interlaced flow, accompanied by slight shearing effects. Through the continuous rotation cycle, the powders or particles of different components gradually achieve uniform mixing through repeated dispersion and convergence, ultimately achieving the desired mixing effect. This structural design reduces the retention dead zones of the materials and improves the mixing efficiency.

Product features

- High mixing efficiency: With the V-shaped structure design, the materials can quickly achieve separation, combination and convection within the cylinder, and can achieve a uniform mixing effect in a relatively short time.
- Excellent mixing effect: It reduces the dead corners where materials are trapped, allowing all components of the materials to fully contact, resulting in a high degree of mixing uniformity, especially suitable for the mixing of multiple-component powders.
- Less material residue: The smooth structure of the V-shaped cylinder makes the discharging more thorough, reducing the amount of material residue in the equipment and minimizing waste and cross-contamination risks.
- Strong adaptability: It is suitable for various dry powders and granular materials with good fluidity, and can meet different requirements from laboratory small-scale tests to industrial large-scale production by adjusting the cylinder volume.
- Compact structure: The overall design of the equipment is simple, with a relatively small floor area, making it easy to install and maintain.

Product Parameters

Model	V-30	V-100	V-200	V-300	V-500	V-1000	V-1500	V-2000	V-3000
Total volume (L)	10-30	100	200	300	500	1000	1500	2000	3000

Effective volume (L)	5-15	50	100	150	250	500	750	1000	1500

Maximumloading weight (kg)	5-20	40	80	120	200	400	600	800	1200

Spindle speed (RPM)	29	1-12	1-12	1-12	1-12	1-12	1-9	1-9	1-9

Motor power (kw)	0.55	0.75	1.1	1.5	2.2	3	4	5.5	7.5

Input power	220V	380V	380V	380V	380V	380V	380V	380V	380V
Total turning height (mm)	1200	1500	1650	1800	2100	2400	2700	3000	3200

Weight (kg)	120	500	600	700	800	1000	1150	1400	2300
Overall dimension (mm) L / w / h	800* 400* 1200	1800* 600* 1500	2200* 650* 1700	2320* 720* 1800	2450* 720* 2000	3000* 900* 2300	3300* 1200* 2600	3800* 1200* 2900	4100* 1800* 3100


More sizes can be customized

Production line diagram

1. Vacuum feeding into the mixer, automated, dust-free

2. The mixed materials directly enter the sieve machine for screening
