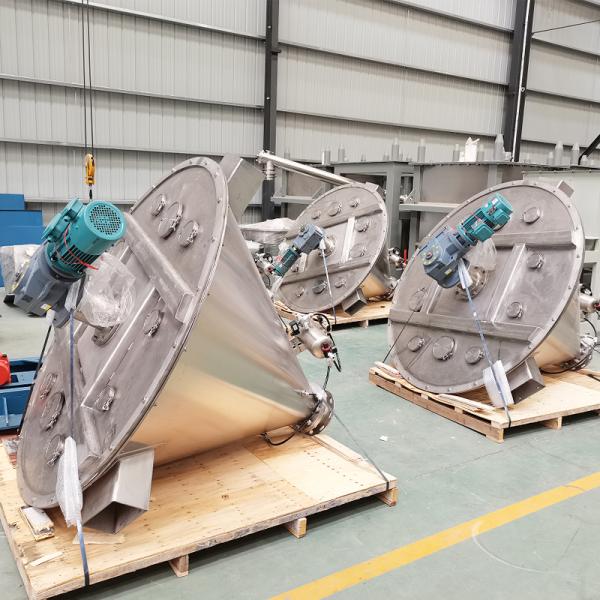

Conical mixer

Product Description
The conical mixer is a commonly used powder mixing equipment in the pharmaceutical, food, chemical and other industries, with a conical cylinder as the working space. Its core component is the helical agitator, whose blades perform both self-rotation and revolution, promoting the material to move up and down and diffuse radially, achieving efficient and uniform mixing. This equipment is highly adaptable to materials that are prone to agglomeration or have significant density differences, and it features high mixing efficiency, convenient unloading, and simple operation. It is an important device for material mixing in industrial production.

Working Principle
The core component of the equipment is the propeller placed inside the conical cylinder. During operation, the propeller performs two types of movements simultaneously: one is to rotate rapidly around its own axis, generating upward thrust and causing the material to rise along the spiral surface; the other is to move slowly in a circular motion along the inner wall of the conical cylinder, enabling the propeller to cover different areas of the material within the cylinder.
Under the combined effect of these two movements, the materials are continuously lifted to the upper part of the cone. Due to the force of gravity, they then spread out in all directions. They are then re-rolled and pushed upward by the lower propeller, forming a "lifting - dispersion - re-rolling" cyclic flow. Meanwhile, the revolution movement ensures that the propeller can act on the materials in all corners of the cylinder, effectively eliminating the mixing dead zones, and ultimately achieving the effect of uniform mixing of different types of materials within a short period of time.

Product features
- Excellent mixing effect: The combined motion of the propeller's rotation and revolution enables the material to form a complex flow with up-down circulation and radial dispersion. The mixing uniformity is high, and it is particularly suitable for materials with large differences in density and particle size or those prone to agglomeration.
- Higher efficiency: Compared to some traditional equipment, its cyclic mixing mode can shorten the mixing time, reduce material retention, and enhance the efficiency of batch production.
High adaptability: The conical cylinder design is suitable for various powders, granular materials, and even allows the addition of a small amount of liquid for mixing, meeting the needs of multiple industries such as medicine, food, and chemical engineering.
- No obvious dead corners: The circular motion ensures that the propeller covers the entire interior of the cylinder. Combined with the inclined design of the conical bottom, it can effectively eliminate the mixing blind zone and reduce material residue.
- Convenient operation: The structure is compact. During discharging, the inclined angle of the cone can be utilized in conjunction with the valve to complete the process quickly, and the operation is stable, maintenance is convenient, and it can reduce the need for manual intervention.
- Minimal damage to materials: The propeller operates at an appropriate speed, and the mixing process is gentle, which can reduce the fragmentation or wear of fragile materials, preserving the original properties of the materials.

Product Parameters

Production line schematic diagram
Configuration A: Manual feeding to the feeding station → Vacuum feeder suction feeding → mixing → mobile silo.
