Specifications
Brand Name :
EVERSUN
Model Number :
VBDS
Certification :
ISO,CE
Place of Origin :
CHINA
MOQ :
1set
Price :
negotiable
Payment Terms :
L/C,D/A,D/P,T/T,MoneyGram,Western Union
Supply Ability :
5000set/year
Delivery Time :
within 7-15 work days
Packaging Details :
Standard export wooden cases
Mixing Method :
Conical
Material :
Stainless Steel
Mixing Power :
1-50 kW
Type :
Industrial Mixing Equipment
Application :
Food, Chemical, Pharmaceutical Industries
Discharge Method :
Pneumatic Valve
Temperature Control :
Thermostat
Safety Features :
Emergency Stop Button
Control System :
PLC
Warranty :
1 year
Features :
Gentle Mixing, No Dead Zones, Easy to Clean
Certifications :
CE, ISO, GMP
Shape :
Conical
Usage :
Laboratory and Industrial
Description

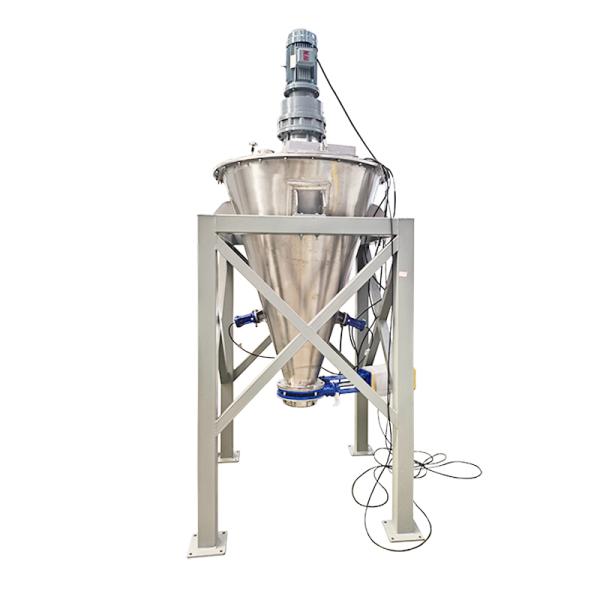

Conical mixer

Product Description
The conical mixer is a commonly used mixing equipment in industries such as chemical engineering, food, and medicine. Its main body is conical in structure, and it is generally equipped with a spiral stirring device inside. It has the advantages of high mixing efficiency, good uniformity, and small floor space. It can be used for mixing various materials such as granular and powdered substances. Moreover, it is convenient for unloading and has a small residual amount, which can meet the mixing requirements of different production scenarios.

Working Principle
The working principle of the conical mixer is as follows: By means of the rotation of the internal helical stirring device, the materials are lifted from the bottom of the cone to the top. Then, under the effect of gravity, the materials are scattered and fall from the top of the cone. This process repeats continuously, causing different materials to form convection and shearing within the cone, thereby achieving uniform mixing. During this process, the rotation of the helix continuously promotes the upward and downward circulation and tumbling of the materials, effectively shortening the mixing time and enhancing the mixing efficiency.

Product features
- Uniform and efficient mixing: The combination of three-dimensional circulation flow and shear action ensures a mixing uniformity of over 99% within a short period of time.
- Scientific and reasonable structure: The conical cylinder reduces material residue, and the discharge is fast with low residue.
- Wide application range: Suitable for powders and granular materials, especially providing excellent mixing effects for high-viscosity and materials with significant density differences.
- Low energy consumption and easy maintenance: The low stirring resistance and low energy consumption, simple structure with low wear, and convenient maintenance.
- Convenient and clean operation: The sealed design prevents dust, the cylinder is smooth and easy to clean, and it meets hygiene requirements.

Product Parameters

Model VBDS-180 VBDS-300 VBDS-500 VBDS-1000 VBDS-2000 VBDS-3000
Power(kw) 1.1 1.1 2.2 4 7.5 11
Capacity (kg/batch) 40 60 100 200 400 600
Total volume(m³) 0.18 0.3 0.5 1 2 3
Mixing time(min) 4~8 6~10 6~10 6~10 6~10 6~10
Speed(r/min) 12 12 12 10 10 8


Production line schematic diagram
Configuration A: Manual feeding to the feeding station → Vacuum feeder suction feeding → mixing → mobile silo.

Configuration B: Bucket lift feeding → Mixing → Transition silo → packaging machine.

Conical Mixer for Uniform Mixing of Powder and Granular Materials in Chemical Food and Building Materials Industries

Details Lmages
Conical Mixer for Uniform Mixing of Powder and Granular Materials in Chemical Food and Building Materials Industries
Conical Mixer for Uniform Mixing of Powder and Granular Materials in Chemical Food and Building Materials Industries

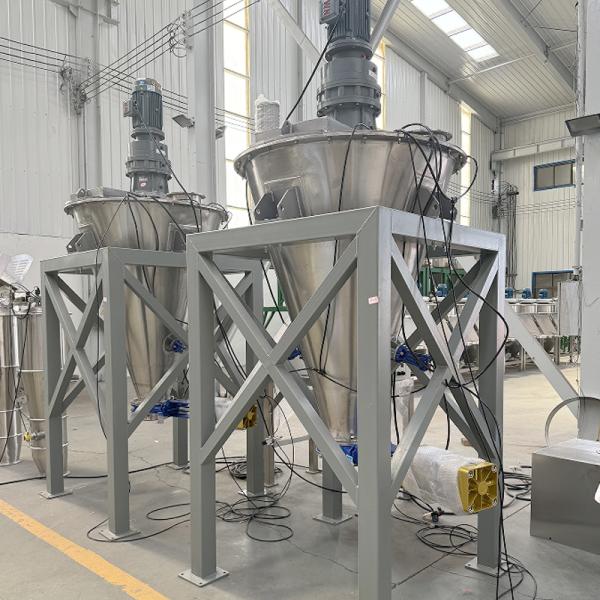

Product Shows
Conical Mixer for Uniform Mixing of Powder and Granular Materials in Chemical Food and Building Materials Industries

Packing & Delivery
Conical Mixer for Uniform Mixing of Powder and Granular Materials in Chemical Food and Building Materials Industries
Why Choose Us
Conical Mixer for Uniform Mixing of Powder and Granular Materials in Chemical Food and Building Materials Industries
Conical Mixer for Uniform Mixing of Powder and Granular Materials in Chemical Food and Building Materials Industries
Conical Mixer for Uniform Mixing of Powder and Granular Materials in Chemical Food and Building Materials Industries
Conical Mixer for Uniform Mixing of Powder and Granular Materials in Chemical Food and Building Materials Industries

About us



Company Profile

We have been specializing in the production of Screening and conveying equipment for 13 years. China's vibrating screen industry top three. And we have done matching and OEM for many large companies. Including the world's top vibrating screen manufacturer, Sweco, USA, we have OEM for his China region. And our products are often exported to Australia, Thailand, Indonesia, New Zealand and other countries.
