Environmental Temperature and humidity Test chamber 100L 225L 408L 800L 1000L for laborary test
Environmental Temperature and humidity Test chamber 100L 225L 408L 800L 1000L for laborary test
Specifications
Brand Name :
Jianqiao
Model Number :
JQTH-150
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
300 sets /year
Delivery Time :
20 days
Packaging Details :
Wooden case
Power Supply :
AC 220V or AC380V 50Hz 3 PHASE with ground wire
Working conditions :
RT to 35℃
Control method :
PWM control
Temp uniformity :
±2℃(No-load)
Temp fluctuation :
±0.5℃(No-load)
Temp range :
Model S:-70°C~+150°C , Model L: -40°C~+150°C or customized.
Description
Environmental Temperature and Humidity Test Chamber - 1000L Volume, 6KW Power
This environmental test chamber, also known as a climatic chamber or climate chamber, is specifically designed for the rail traffic industry. It serves as an enclosure for testing the effects of specified environmental conditions on biological items, industrial products, materials, and electronic devices and components.
Chamber Applications
  • Stand-alone testing for environmental effects on test specimens
  • Preparation of test specimens for further physical or chemical tests
  • Environmental conditioning for conducting specimen testing
Testing Capabilities
This chamber artificially replicates environmental conditions that machinery, materials, devices, or components might be exposed to, often accelerating environmental effects in controlled laboratory conditions.
Environmental Conditions Simulated
  • Extreme temperatures and sudden temperature variations (thermal shock)
  • Altitude simulation and humidity control (10-98% RH)
  • Electrodynamic vibrations and electromagnetic radiation
  • Cyclic corrosion testing and salt spray exposure
  • Rain, weathering, and UV degradation testing
  • Vacuum environment simulation
Standard Features
  • Extremely low noise level operation
  • Energy-efficient design with low consumption
  • Independent temperature measurement for specimen safety

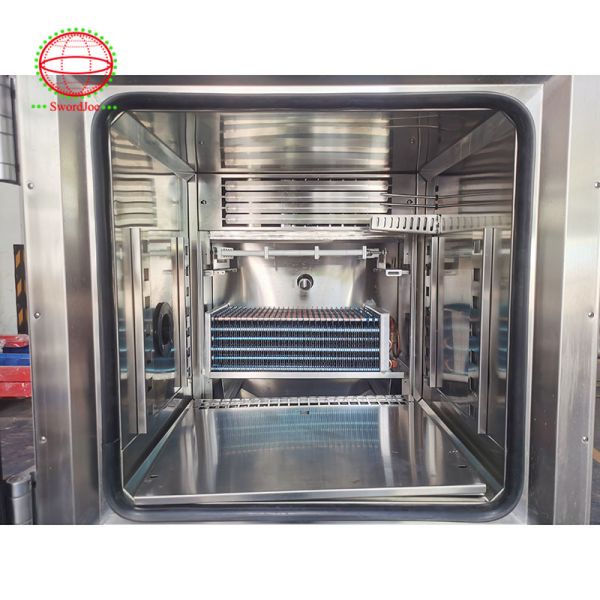

  • Easy-to-clean stainless steel test space (304# 1.2mm)
  • Wide humidity range for extreme climate simulation
  • Energy-efficient refrigeration with electronic expansion valve
  • Specialized humidity generation and control system
  • Thermal break construction for extreme testing
  • Includes 3" cable port, two shelves, and casters
  • USB port for program and data transfer
  • 7"/10" imported DELTA touch screen controller
  • Optional APP and WLAN connectivity for remote access
  • English interface standard
Technical Specifications
Model Volume (L) Inner Size (cm) Power
JQTH-100 100L 50×40×50 5.5KW
JQTH-150 150L 50×50×60 6KW
JQTH-225 225L 70×46×70 8.5KW
JQTH-408 408L 70×75×80 9KW
JQTH-800 800L 100×80×100 13.5KW
JQTH-1000 1000L 100×100×100 15KW
JQTH-1200 1200L 150×80×100 17KW
JQTH-1500 1500L 150×100×100 18KW
Temperature Range: Model S: -70°C to +150°C, Model L: -40°C to +150°C (customizable)
Compliance Standards
IEC 60068: Environmental tests for electrotechnical products including damp heat, low temperature, and vibration tests.
IEC 61215/61646/62108: Standards for photovoltaic solar panel testing including thermal cycles and moist heat.
ISO 10993: Guidelines for biological evaluation of medical devices.
MIL-STD-810: U.S. military standard for environmental testing procedures.
GLP/GMP: Good Laboratory/Manufacturing Practices for consistent testing and process control.
Product Images
Environmental Temperature and humidity Test chamber 100L 225L 408L 800L 1000L for laborary test Environmental Temperature and humidity Test chamber 100L 225L 408L 800L 1000L for laborary test Environmental Temperature and humidity Test chamber 100L 225L 408L 800L 1000L for laborary test Environmental Temperature and humidity Test chamber 100L 225L 408L 800L 1000L for laborary test Environmental Temperature and humidity Test chamber 100L 225L 408L 800L 1000L for laborary test Environmental Temperature and humidity Test chamber 100L 225L 408L 800L 1000L for laborary test
