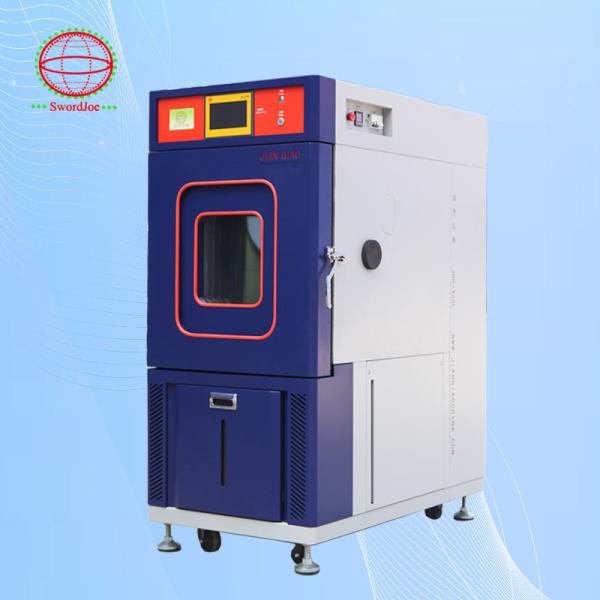

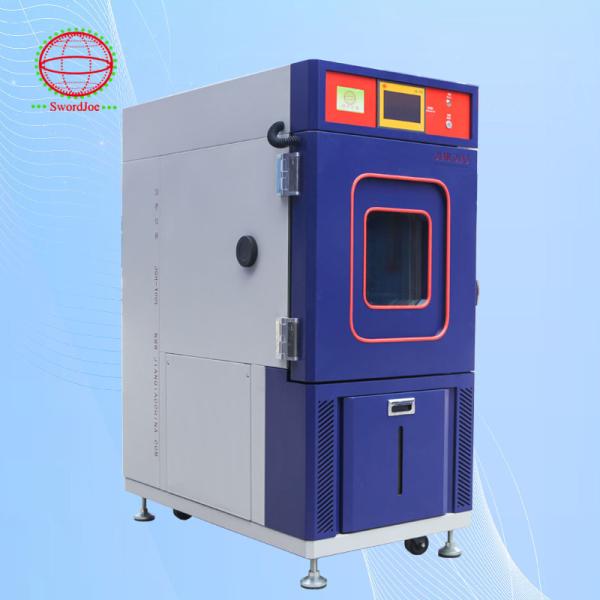

Environmental Constant Temperature And Humidity Test Chamber 5.5KW - 18KW
Environmental Constant Temperature And Humidity Test Chamber 5.5KW - 18KW
Environmental Constant Temperature And Humidity Test Chamber 5.5KW - 18KW
Environmental Constant Temperature And Humidity Test Chamber 5.5KW - 18KW
Environmental Constant Temperature And Humidity Test Chamber 5.5KW - 18KW
Environmental Constant Temperature And Humidity Test Chamber 5.5KW - 18KW
Environmental Constant Temperature And Humidity Test Chamber 5.5KW - 18KW
Environmental Constant Temperature And Humidity Test Chamber 5.5KW - 18KW
Specifications
Brand Name :
Jianqiao
Model Number :
JQTH-100L
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
1
Payment Terms :
,T/T
Packaging Details :
Wooden case
Power Supply :
AC 220V or AC380V 50Hz 3 PHASE with ground wire
Working conditions :
RT to 35℃
Control method :
PWM control
Temp uniformity :
±2℃(No-load)
Temp fluctuation :
±0.5℃(No-load)
Temp range :
Model S:-70°C~+150°C , Model L: -40°C~+150°C or customized.
Description

Climate chambers are also known as environmental chambers or climatic chambers. They are used to determine the effects of different environmental conditions on certain products or components, including industrial, biological, electronic, pharmaceutical, and other products.

Model

JQTH-100

JQTH-150

JQTH-225

JQTH-408

JQTH-800

JQTH-1000

JQTH-1200

JQTH-1500

Volume (L)

100L

150L

225L

408L

800L

1000L

1200L

1500L

Inner size (cm)

W

50

50

70

70

100

100

150

150

D

40

50

46

75

80

100

80

100

H

50

60

70

80

100

100

100

100

Outer size (cm)

W

70

70

90

90

120

120

200

200

D

125

135

157

188

185

205

135

155

H

157

167

185

195

215

215

215

215

Temp range

Model S:-70°C~+150°C , Model L: -40°C~+150°C or customized.

Exterior material

Standard 1.5mm Electrolytic plate with Electrostatic painting

Interior material

Matte Stainless steel plate SUS 304

Insulation material

Rigid Polyurethane Foam and Glass Fiber Wool

Refreigeration system

Hermetric Compressor ,Cascsde Refrigeration CFC free refrigeration system ,
HFC-R404A/HFC-23/HFC-R449 /HFC-507

Control method

PWM control

Working conditions

RT to 35℃

Humidity range

10 % to 98% RH 10 %~ 98% RH

Temp fluctuation

±0.5℃(No-load)

Temp uniformity

±2℃(No-load)

Temp cooling rate

+150°C ~-70°C ,0.8°C~ 1℃/min (Non-Linear)

Temp rising rate

-70°C~+150°C , 1°C~3℃/ min (Non-Linear)

Controller

TW DELTA PLC,7 "color touch screen control Chinese,English,Russian menu
Operation Model :Setting Fix /Program

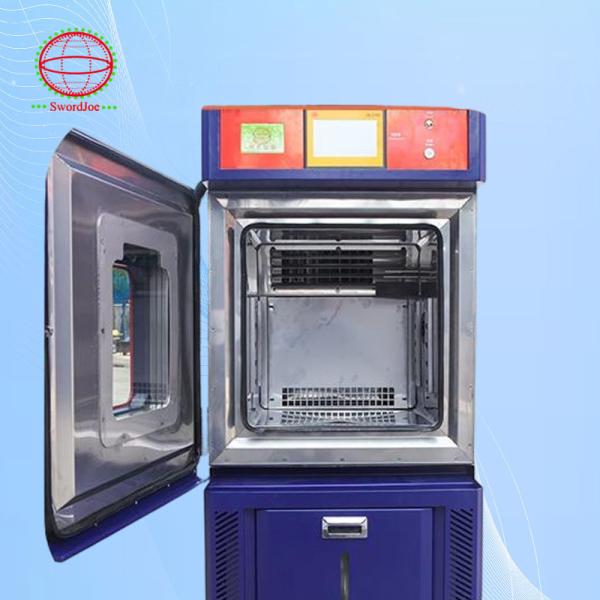

Standard Accessories

Observation Window *1,Cable Port (￠50mm*2),Shelves*2 ,Chamber lamp*1,Power cable 2m

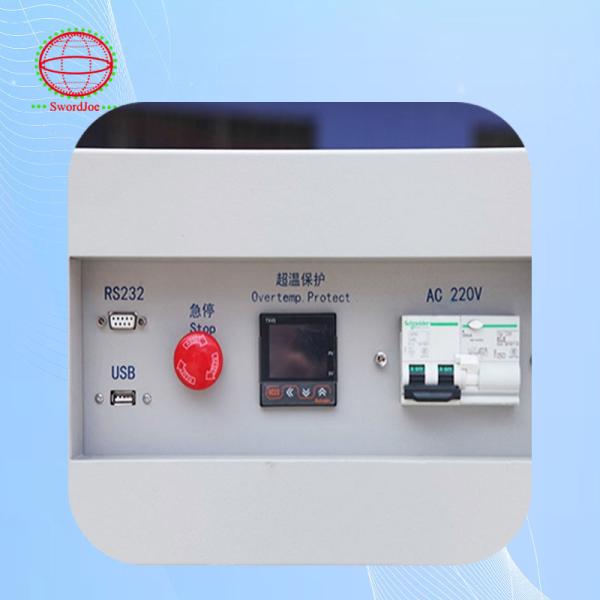

Safety device

No-Fuse Breaker,Over -pressure,Over-load and Over-current protector for compressor ,

Over-Temp,Protector Over-voltage coolant protector ,Overload protector for fan,

Dry heat protector and Fault warning system ,short of water protector

Configuration interface

With USB , WLAN, RS232 or R485 port , APP function is optional

Power

5.5KW

6KW

8.5KW

9KW

13.5KW

15KW

17KW

18KW

Weight (kg)

300

360

430

530

780

890

1100

1380

Power supply

AC 220V or AC380V 50Hz 3 PHASE ,Ground wire
