Accurate Environmental Test Chamber Temperature Humidity And Altitude Chamber
Accurate Environmental Test Chamber Temperature Humidity And Altitude Chamber
Specifications
Brand Name :
Jianqiao
Model Number :
JQTA-225
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
300/YEAR
Delivery Time :
5 WEEKS
Packaging Details :
Wooden case
Humidity range :
20% to 98% RH
Interior material :
Stainless steel plate SUS304
Power supply :
AC380V 50Hz
Temp Fluctuation :
±0.5℃
Air pressure range :
Normal pressure to ~1kPa
Configuration interface :
USB, WLAN, RS232 port (APP function optional)
Temp cooling rate :
0.7℃~1℃/min
Temp rising rate :
0.7℃~1℃/min
Description

  • Top-Rated Temperature , Humidity , & Altitude Chamber for Accurate Environmental Testing

    Climatic chamber 1m3 (35ft3) Hot Cold Vacuum Humidity -65°C / +200°C 10 mbar (approx. altitude 85 kft)
    Industries

    Electronics, defense and aeronautics

    Application
    Temperature, humidity and vacuum combined tests on electronics components powered with a voltage
    of less than 6000 volts

    Description of the equipment
    The test space with its conditioning unit at the back
    The machinery on the rear side with its electrical cabinet
    The control board in front of the electrical cabinet.

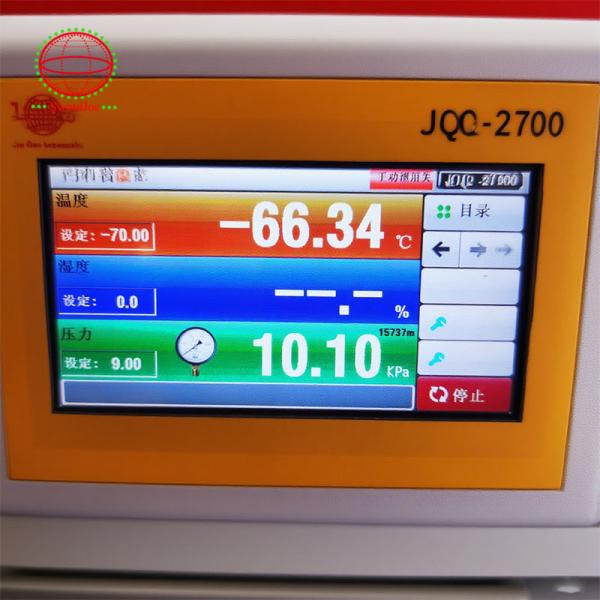

    Supervision and control software
    and command by touch screen


    Temperature Performance

    • Average cooling rate : 10°C/min from +175°C to -37°C (empty, down to 150 mbar [approx. altitude 44.3 kft])
    • Average heating rate : 10°C/min from -37°C to +175°C (empty, down to 150 mbar [approx. altitude 44.3 kft])
    • Temperature stability ≤ ± 0,5°C
    • Temperature homogeneity : ± 2°C at 10 cm of the walls
    • Temperature, humidity and vacuum combined tests on electronics components powered with a voltage of less than 6000 volts
    • DUT heat dissipation : 2 kW at -30°C


    Humidity Performance

    • Range of temperature : +10°C to +95°C
    • Range of humidity: 10 to 98% RH, without dissipation, empty (pressure down to 150 mbar [approx. altitude
    • 44.3 kft], during 4h max)
    • Uniformity: ± 3 %, at 10 cm of the walls


    Vacuum Performance

    From AP to 10 mbar, regulated down to 50 mbar (approx. altitude 63.5 kft)

    In the range from 100°C down to -65°C Regulating accuracy : ± 1 mbar


Model

JQTA-225

JQTA-504

JQTA-1000

JQTA-1700

JQTA-3400

Inner size (cm)

50*75*65

80*70*90

100*100*100

195*315*516

407*210*407

Outer size (cm)

Subject to the actual weight

Volume (L)

225L

504L

1000L

1700L

3400L

Temp.Range

L type:-40℃~150℃ S type:-70℃~150℃ customized

Humidity range

20 % to 98% RH

Temp Fluctuation

±0.5℃

Temp variation
 in space

No-load at atmospheric pressure ±3℃ ( ≥100℃ ),±2℃ (≤100℃)

Temp cooling rate

0.7℃~1℃/min

Temp rising rate

0.7℃~1℃/min

weight(kg)

Subject to the actual weight

Exterior material

Standard 1.5mm Electrolytic plate Electrostatic painting

Interior material

Stainless steel plate sus304

Air pressure range

normal pressure to ~1kPa

Pressure error

PWM control technology cold-end

Depressurization rate

≧40kPa,±2kPa,4kPa~40kPa,±0.5kPa,≦4kPa,±0.1kPa

Pressure recovery

Normal pressure to 1kPa≦30min

Controller

TW DELTA PLC,7 " or 10" color touch screen control

Configuration interface

With USB , WLAN, RS232 port , APP function is optional

Compressor

French Tecumseh or Germany Bitzer brand or Bock

Power supply

AC380V @50Hz


-Append request: Low GWP refrigerants of R449a, R448a, and R508B are available.

-The performance data refer to an operating room (ambient) temperature of +26°C, 415 V/50 Hz nominal voltage, without test specimen and without accessories.

-Sound Pressure Level: Using a calibrated instrument, the weighted sound pressure level was measured in free-field environments at a height of 1 meter from the floor and a distance of 1 meter from the equipment surface.
