AC380V 50Hz Temperature Humidity Altitude Chamber environmental testing chamber
AC380V 50Hz Temperature Humidity Altitude Chamber environmental testing chamber
AC380V 50Hz Temperature Humidity Altitude Chamber environmental testing chamber
AC380V 50Hz Temperature Humidity Altitude Chamber environmental testing chamber
Specifications
Brand Name :
Jianqiao
Model Number :
JQTA-225
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
300/YEAR
Delivery Time :
5 WEEKS
Packaging Details :
Wooden case
Humidity range :
20% to 98% RH
Interior material :
Stainless steel plate SUS304
Power supply :
AC380V 50Hz
Temp Fluctuation :
±0.5℃
Air pressure range :
Normal pressure to ~1kPa
Configuration interface :
USB, WLAN, RS232 port (APP function optional)
Temp cooling rate :
0.7℃~1℃/min
Temp rising rate :
0.7℃~1℃/min
Description

Reliable Temperature, Humidity, & Altitude Chamber for Quality Testing


The Temperature, Humidity, and Altitude Chamber is a state-of-the-art testing solution designed to simulate a variety of environmental conditions for research, product testing, and quality control. These chambers offer precise control over temperature, humidity, and altitude levels, making them ideal for industries such as aerospace, automotive, electronics, and pharmaceuticals. Whether for testing the durability of materials or conducting rigorous environmental simulations, this chamber provides accurate and reliable results.


With advanced features such as programmable climate control, real-time monitoring, and customizable settings, our environmental chambers ensure that your products are tested under the most demanding conditions. From extreme heat and cold to varying levels of humidity and pressure, the temperature, humidity, and altitude chamber helps assess the performance and reliability of your products, ensuring they meet global standards.


Explore the benefits of using our temperature, humidity, and altitude chamber for your product testing needs, and enhance the accuracy of your research while ensuring compliance with industry regulations.




Model

JQTA-225

JQTA-504

JQTA-1000

JQTA-1700

JQTA-3400

Inner size (cm)

50*75*65

80*70*90

100*100*100

195*315*516

407*210*407

Outer size (cm)

Subject to the actual weight

Volume (L)

225L

504L

1000L

1700L

3400L

Temp.Range

L type:-40℃~150℃ S type:-70℃~150℃ customized

Humidity range

20 % to 98% RH

Temp Fluctuation

±0.5℃

Temp variation
 in space

No-load at atmospheric pressure ±3℃ ( ≥100℃ ),±2℃ (≤100℃)

Temp cooling rate

0.7℃~1℃/min

Temp rising rate

0.7℃~1℃/min

weight(kg)

Subject to the actual weight

Exterior material

Standard 1.5mm Electrolytic plate Electrostatic painting

Interior material

Stainless steel plate sus304

Air pressure range

normal pressure to ~1kPa

Pressure error

PWM control technology cold-end

Depressurization rate

≧40kPa,±2kPa,4kPa~40kPa,±0.5kPa,≦4kPa,±0.1kPa

Pressure recovery

Normal pressure to 1kPa≦30min

Controller

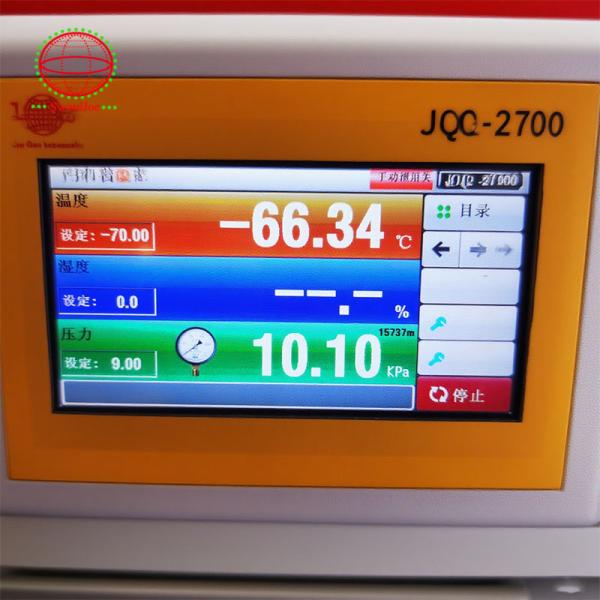

TW DELTA PLC,7 " or 10" color touch screen control

Configuration interface

With USB , WLAN, RS232 port , APP function is optional

Compressor

French Tecumseh or Germany Bitzer brand or Bock

Power supply

AC380V @50Hz


-Append request: Low GWP refrigerants of R449a, R448a, and R508B are available.

-The performance data refer to an operating room (ambient) temperature of +26°C, 415 V/50 Hz nominal voltage, without test specimen and without accessories.

-Sound Pressure Level: Using a calibrated instrument, the weighted sound pressure level was measured in free-field environments at a height of 1 meter from the floor and a distance of 1 meter from the equipment surface.
