Viano Piped Drinking Water Dispenser 2.0
Viano Piped Drinking Water Dispenser 2.0
Viano Piped Drinking Water Dispenser 2.0
Viano Piped Drinking Water Dispenser 2.0
Viano Piped Drinking Water Dispenser 2.0
Viano Piped Drinking Water Dispenser 2.0
Specifications
Brand Name :
Viano
Model Number :

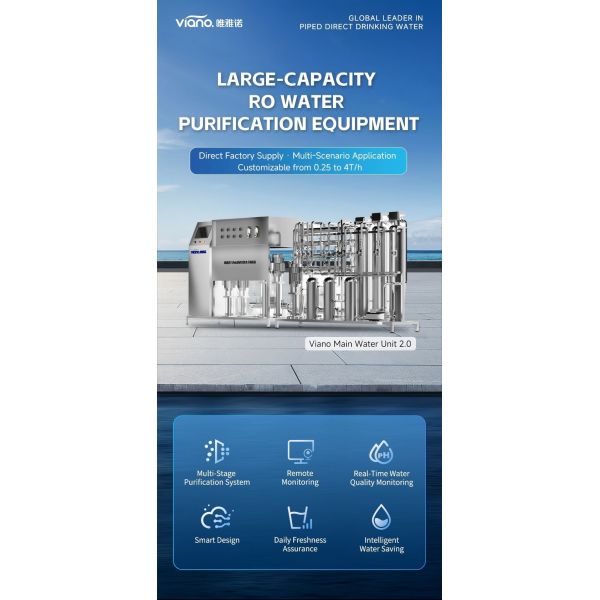

Viano Main Water Unit 2.0
Certification :
FCC.CE.UL.NSF,FDA
Place of Origin :
Anhui,China
MOQ :
5
Delivery Time :
Based on the number of orders
Price :
Depending on the specific configuration and order quantity
Description
Viano Piped Drinking Water Dispenser 2.0
Product Description

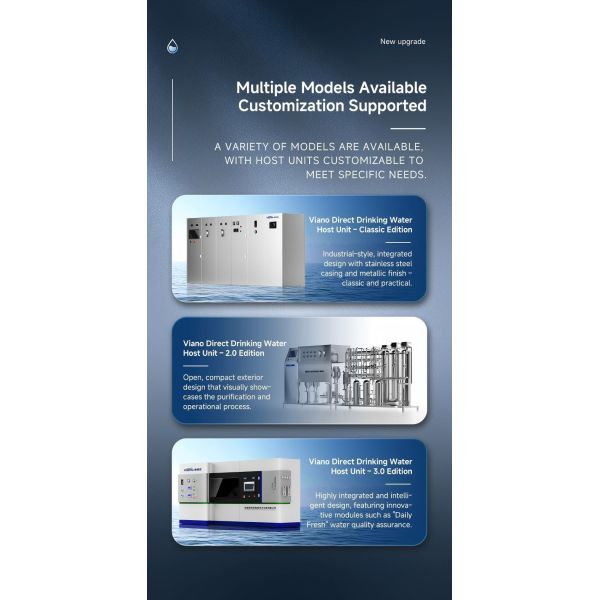

The Viano 2.0 Pipeline Direct Drinking Water Unit features an open and compact design, clearly showing the purification and operational process. It is equipped with innovative modules including remote monitoring, real-time water quality detection, and intelligent water saving. The unit is highly integrated, scientifically laid out, and designed for easy installation and low-maintenance operation.

Product Specifications
ModelWater Production CapacityRecommended Household Capacity (Residential)Stable Salt Rejection Rate (RO) / Monovalent Ion Rejection Rate (NF)Recovery RateProduct Water ConductivityRated PowerHigh-Pressure Pump PressureOperating TemperatureUnit DimensionsSystem Configuration
WYT-RO-0.25T0.25m³/h<400More than 98%Configured Based on Equipment ParametersSpecific Data Varies with Local Raw Water Conditions2KWInlet (Low Pressure): >0.15 MPa
NF-Outlet (High Pressure): 0.4–1.2 MPa

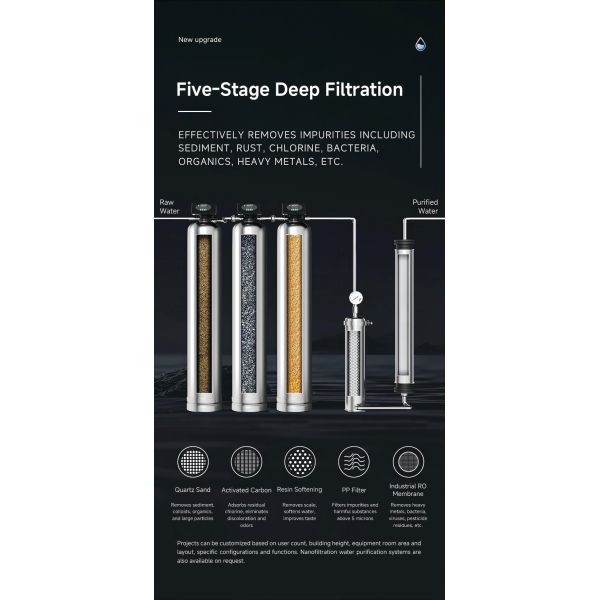

RO-Outlet (High Pressure): 0.6–1.5 MPa		4~40°CCustomizable1. Raw Water Storage & Supply System
2. Mechanical Filtration Module
3. Advanced Carbon Filtration Module
4. Ion Exchange Module
5. Security Filter
6. Membrane Pressurization System
7. Single‑Stage Deep Purification Unit
8. Product Water Storage System
9. Automation Control & Data Remote Transmission System
10. Water Quality Sensor System

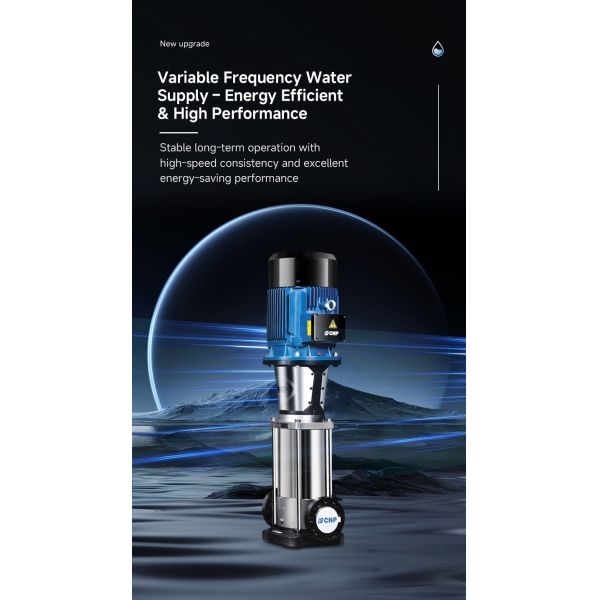

11. Variable Frequency Constant Pressure Water Supply System
12. Water Quality Monitoring Module
13. Real‑Time Pressure & Flow Monitoring System
14. Circulation Return Water System
15. Sterilization & Bacteriostatic System
16. Direct Drinking Water Rack + Components
WYT-NF-0.25T0.25m³/h<40085%±5Configured Based on Equipment ParametersSpecific Data Varies with Local Raw Water Conditions2KW4~40°C
WYT-RO-0.5T0.5m³/h400-800More than 98%Configured Based on Equipment ParametersSpecific Data Varies with Local Raw Water Conditions3KW4~40°C
WYT-NF-0.5T0.5m³/h400-80085%±5Configured Based on Equipment ParametersSpecific Data Varies with Local Raw Water Conditions3KW4~40°C
WYT-RO-1T1m³/h800-1300More than 98%Configured Based on Equipment ParametersSpecific Data Varies with Local Raw Water Conditions4KW4~40°C
WYT-NF-1T1m³/h800-130085%±5Configured Based on Equipment ParametersSpecific Data Varies with Local Raw Water Conditions4KW4~40°C
WYT-RO-1.5T1.5m³/h1300-2000More than 98%Configured Based on Equipment ParametersSpecific Data Varies with Local Raw Water Conditions4KW4~40°C
WYT-NF-1.5T1.5m³/h1300-200085%±5Configured Based on Equipment ParametersSpecific Data Varies with Local Raw Water Conditions4KW4~40°C
WYT-RO-2T2m³/h2000-2700More than 98%Configured Based on Equipment ParametersSpecific Data Varies with Local Raw Water Conditions5KW4~40°C
WYT-NF-2T2m³/h2000-270085%±5Configured Based on Equipment ParametersSpecific Data Varies with Local Raw Water Conditions5KW4~40°C
WYT-RO-3T3m³/h2700-4000More than 98%Configured Based on Equipment ParametersSpecific Data Varies with Local Raw Water Conditions6KW4~40°C
WYT-NF-3T3m³/h2700-400085%±5Configured Based on Equipment ParametersSpecific Data Varies with Local Raw Water Conditions6KW4~40°C
WYT-RO-4T4m³/h4000-5500More than 98%Configured Based on Equipment ParametersSpecific Data Varies with Local Raw Water Conditions8KW4~40°C
WYT-NF-4T4m³/h4000-550085%±5Configured Based on Equipment ParametersSpecific Data Varies with Local Raw Water Conditions8KW4~40°C

Notes:

For professional model selection advice from Viano, please provide in advance: raw water type, raw water quality, number of water points, number of users, application scenario, and building height.

Equipment configuration can be adjusted according to actual conditions and budget.

Recovery Rate Note: For a single membrane (or parallel water circuit before the membrane), the recommended recovery rate is 25–30%. If a series configuration is used, the recovery rate can generally be set between 30–75%, with a maximum not exceeding 75%. Typically, the recovery rate for NF is about 5% higher than that of RO.

For a detailed equipment list and quotation proposal, please contact our official customer service.
