Commercial Vertical RO Water Dispenser With 12L Tank, 90℃ Heating And 10.1" Smart Display

Product Description:

This commercial vertical water dispenser features a large 12L stainless steel tank, fast 90℃ heating, and a 10.1" smart touch screen. With optional UV sterilization, RO filtration, compressor cooling, and rental management function, it is ideal for offices, schools, and commercial spaces serving up to 50 users.

Key Features:

• Large 12L stainless steel tank with dual float safety

• 10.1" TFT touch screen with temperature display and control

• Optional UV sterilization and RO filtration system

• Rental mode with countdown and lock function

• Leakage protection and child safety lock

• Energy-saving sleep mode (0-5 hours adjustable)

• Supports compressor cooling for higher cold water output

Product Specifications

Product Details

4-Stage Deep Filtration – Multi-Layer Purification Process

This system employs a four-stage filtration sequence, starting with a PP sediment filter, followed by a UDF pre-carbon filter, then a precision RO membrane, and finishing with a UDF post-carbon filter, ensuring comprehensive removal of impurities for clean and safe water.

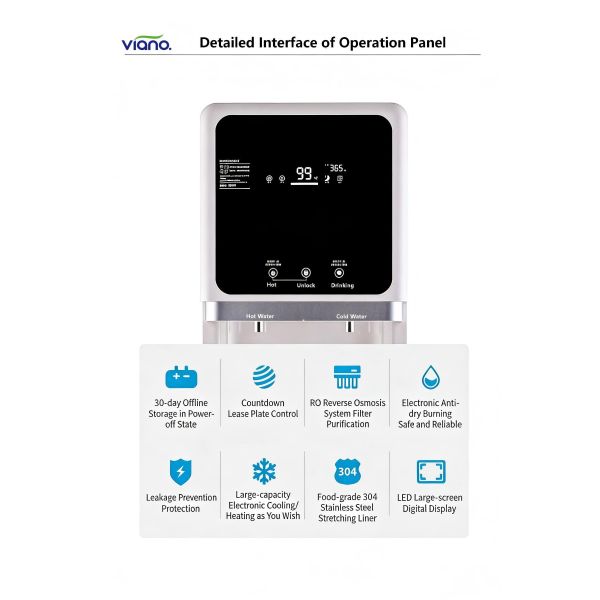

Multi-Function Display with Smart Features

This system features an LED digital display and integrates multiple smart functions, including 30-day offline storage, lease countdown control, RO filtration monitoring, electronic anti-dry burn protection, leak prevention, large-capacity cooling/heating, and a food-grade 304 stainless steel liner for safe and reliable operation.

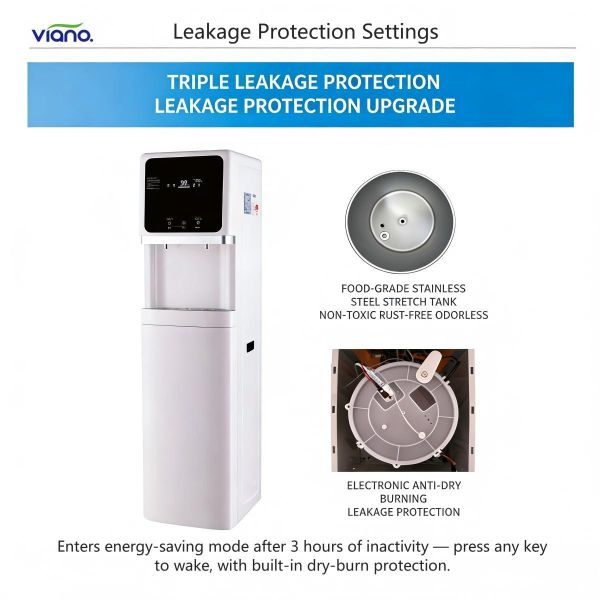

Triple Leakage Protection with Energy-Saving Mode

This system features triple-layer leakage protection, including an upgraded safety design and electronic anti-dry burn protection. It uses a food-grade stainless steel stretch tank that is non-toxic, rust-free, and odorless. After 3 hours of inactivity, it automatically enters energy-saving mode and can be woken with any key.

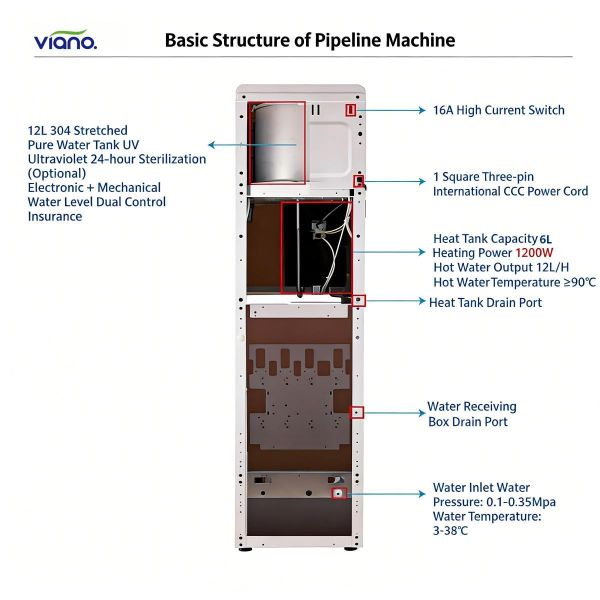

Basic Pipeline Machine Structure with High-Capacity Tanks

This unit features a 12L 304 stainless steel pure water tank with optional 24-hour UV sterilization, dual electronic and mechanical water level control, a 6L heat tank with 1200W heating power delivering ≥90°C hot water at 12L/H, and standard ports for drainage and inlet connections.

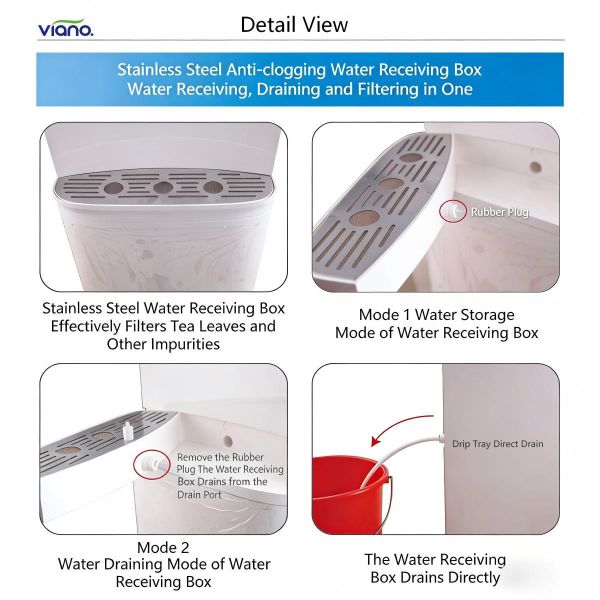

Stainless Steel Anti-Clog Water Receiving Box with Dual Modes

This stainless steel water receiving box integrates water collection, drainage, and filtration in one unit. It effectively filters impurities like tea leaves and offers two operational modes: a water storage mode and a direct drainage mode, with easy access via a removable rubber plug for versatile and hygienic maintenance.

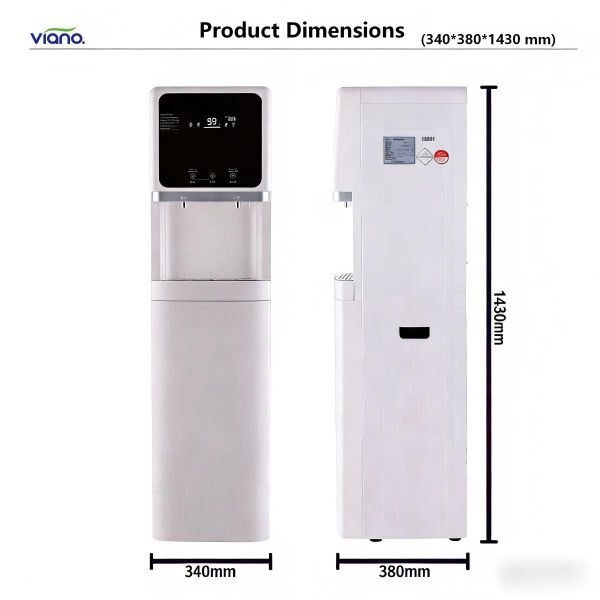

Product Dimensions – Compact 340×380×1430mm Design

This product features a compact vertical design measuring 340mm in width, 380mm in depth, and 1430mm in height, making it ideal for space-efficient installation in homes, offices, or commercial environments while maintaining full functionality.

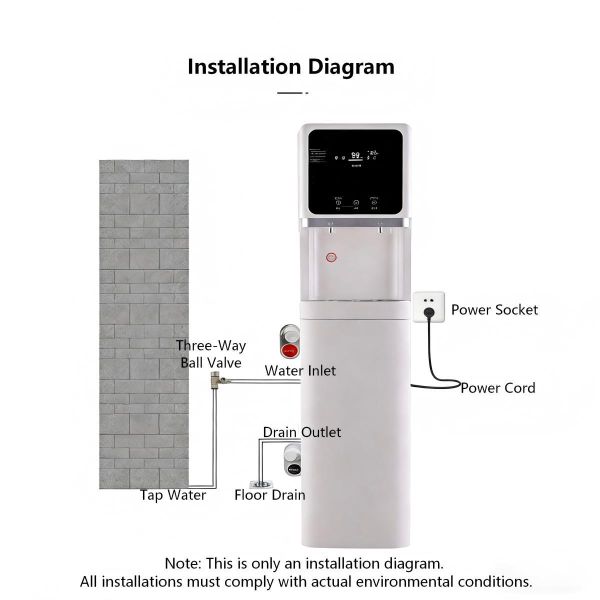

Installation Diagram – Key Connection Points

This diagram outlines the main installation components, including the three-way ball valve, water inlet, power socket and cord, drain outlet, and connections to tap water and floor drain. Note: This is a reference diagram; all installations must be adapted to actual environmental conditions.
