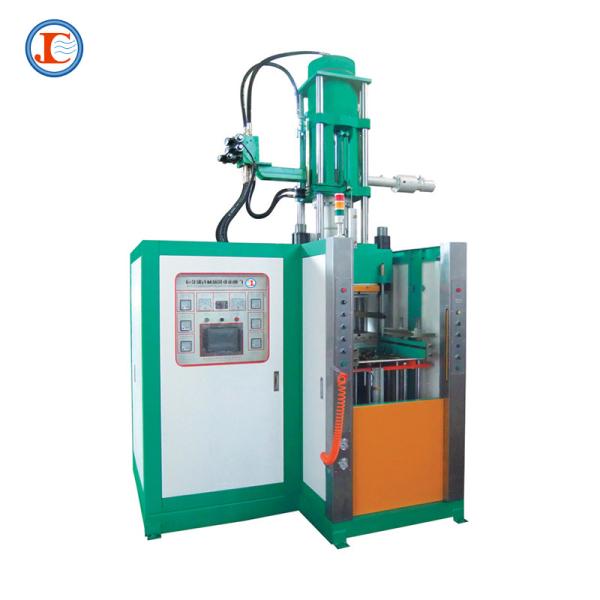

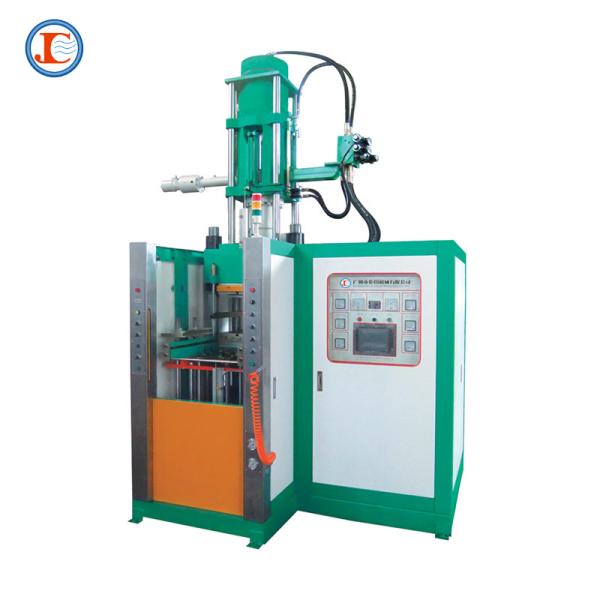

100-1000T Energy-Saving Mini Reaction Injection Molding Machine
100-1000T Energy-Saving Mini Reaction Injection Molding Machine
100-1000T Energy-Saving Mini Reaction Injection Molding Machine
100-1000T Energy-Saving Mini Reaction Injection Molding Machine
Specifications
Plastic Processed :
RUBBER/SILICONE
Condition :
New
Style :
VERTICAL
Injection Rate (g/s) :
100
Machine Type :
Hydraulic
Injection Weight (g) :
200
Screw diameter (mm) :
30
Distance between Tie Bars :
TBD
Weight (KG) :
6000
Type :
Injection molding machine
Place of Origin :
Guangdong, China
Model Number :
VI-FL
Brand Name :
JuChuan
Power (kW) :
15
Warranty :
1 Year
Key Selling Points :
Competitive Price
Applicable Industries :
Manufacturing Plant
Plastic Type :
Thermoplastic
Automatic :
Yes
After-sales Service Provided :
Video technical support, Online support, Engineers available to service machinery overseas
Opening Stroke :
According to model
Certification :
CE ISO9001
Clamping Force (kN) :
200
Clamp Force(Ton) :
50~600
Injection Volume(cc) :
500~6000
Injection Pressure(kgf/xm2) :
2000
Platen Size(mm) :
300*300~850*850
Plunge Stroke(mm) :
300~500
Heater Capacity(kw) :
8.4~29.75
Gross Weight(Ton) :
5~14.2
Packaging Details :
Guaranteed transportation
Port :
Guangzhou
Supply Ability :
1000 Set/Sets per Month
Price :
$20,000.00 - $40,000.00/sets
Description

100-1000T Energy-Saving Mini Reaction Injection Molding Machine

VI-FL Series Vertical Silicone/Synthetic Rubber Injection Machine

Feature:

• Adjustable curing & extrusion speed with multiple injection capability

• Three different pressure & speed for opening/closing mold

• Anti-collision Molding System prevent mold damage occurring from misalignment (Patented)

• Suitable for all type of general rubber parts

ModelUnit50VI-FL100VI-FL200VI-FL300VI-FL400VI-FL600VI-FL
Clamping ForceTon50100200300400600
Injection Capacitycc50010002000300040006000
Injection pressurekgf/cm²200200200200200200
Operate table sizemm300*300400*400550*560700*700700*700850*850
Min. Mold Thicknessmm5050100100100100
Plunger stroke mm300350400400400500
Distance of Thermo-plate mm350~450400~500500~600500~600500~600600~700
Distance of Tie bar mm400*140515*230640*310820*395820*395970*500
Die sinking type2RT-3RT-4RT-Upper ejector-Bottom ejector
Max. Operating PressureMpa202020202020
Motor Powerhp7.5(5.5kw)10(7.5kw)15(11kw)15(11kw)15(11kw)20(15kw)
Heater PowerKw8.41015.3242429.75
Total PowerKw16.920.530.3393948.75
Gross weightTon56.47.89.61014.2
Dimension(L*W*H)mm

2000*1500

*2800

2400*1650

*3200

2600*2000

*4000

2750*2265

*4200

2750*2265

*4200

3200*2500

*4350

100-1000T Energy-Saving Mini Reaction Injection Molding Machine100-1000T Energy-Saving Mini Reaction Injection Molding Machine100-1000T Energy-Saving Mini Reaction Injection Molding Machine

Product Features

100-1000T Energy-Saving Mini Reaction Injection Molding Machine100-1000T Energy-Saving Mini Reaction Injection Molding Machine

Application

100-1000T Energy-Saving Mini Reaction Injection Molding Machine

100-1000T Energy-Saving Mini Reaction Injection Molding Machine100-1000T Energy-Saving Mini Reaction Injection Molding Machine100-1000T Energy-Saving Mini Reaction Injection Molding Machine
Company Information

100-1000T Energy-Saving Mini Reaction Injection Molding Machine100-1000T Energy-Saving Mini Reaction Injection Molding Machine

FAQ

100-1000T Energy-Saving Mini Reaction Injection Molding Machine

If you have any queries and suggestions, please feel free to let us know:

Tel/Watapp:0086-020-34812609
