Specifications
Brand Name :
JUCHUAN
Model Number :
JC-VI-AO
Certification :
CE ISO9001:2015
Place of Origin :
Guangdong, China
MOQ :
1set
Price :
$20,000.00 - $40,000.00/sets
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 Set/Sets per Month
Delivery Time :
45 days
Packaging Details :
Fixed with hard straps
Condition :
New
Style :
VERTICAL
Injection Rate (g/s) :
100
Machine Type :
Hydraulic
Injection Weight (g) :
200
Screw diameter (mm) :
30
Distance between Tie Bars :
TBD
Weight (KG) :
6000
Type :
Silicone/Rubber Injection Machine
Power (kW) :
15
Warranty :
1 Year
Key Selling Points :
Competitive Price
Applicable Industries :
Manufacturing Plant
Automatic :
Yes
After-sales Service Provided :
Video technical support, Online support, Engineers available to service machinery overseas
Clamping Force (kN) :
200
Clamp Force(Ton) :
50~1000
Injection Volume(cc) :
500~10000
Injection Pressure(kgf/xm2) :
1800
Platen Size(mm) :
300*300~1200*1200
Plunge Stroke(mm) :
300~500
Heater Capacity(kw) :
8.4~42
Gross Weight(Ton) :
5.5~21
Port :
Guangzhou
Description

China Factory Price Rubber Injection Molding Machine for making phone Case

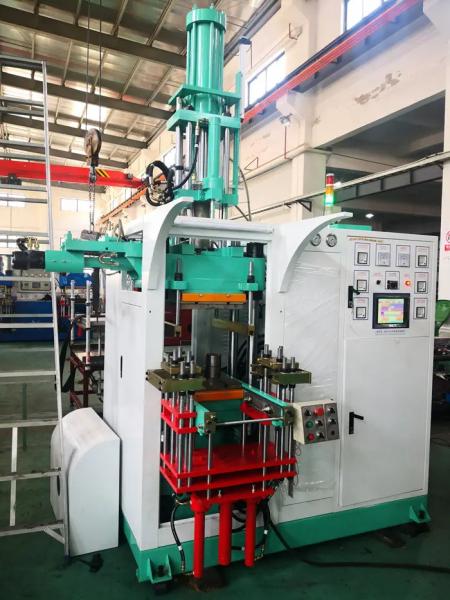

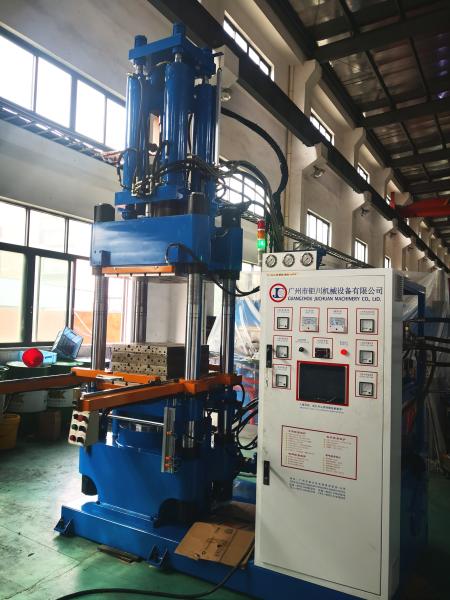

VI-AO Series Vertical "all-in-out" Silicone/Synthetic Rubber Injection Machine

Machine Features:

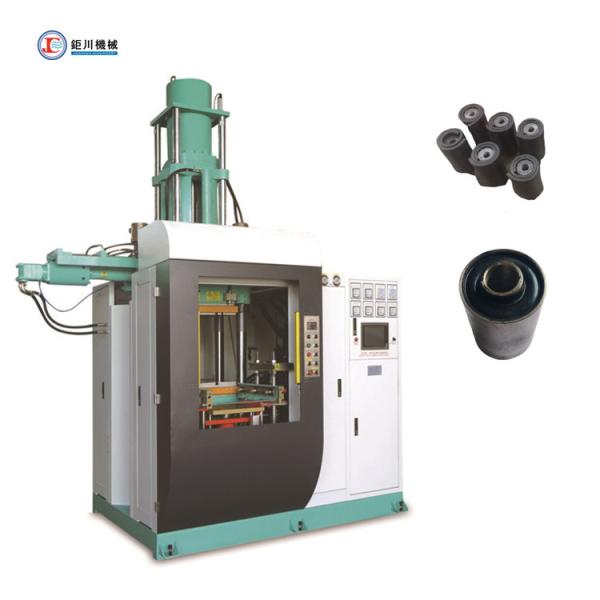

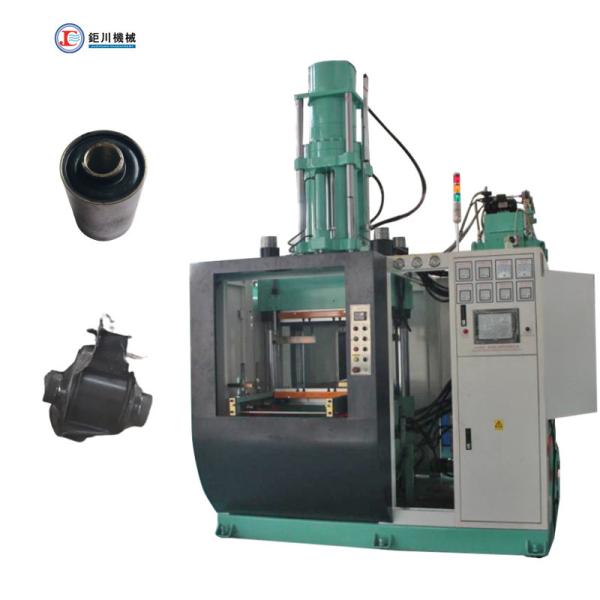

• Suitable for automotive and electronic rubber parts, high/cold temp precision rubber parts, especially NBR products

• All-in-out structure, sprueless injection without material loss controllable injecting material temperature

• Excellent for high precision molding part

• 5-10 times better accuracy than conventional injection machine the measuring precision of 1000cc injection volume is up to ±0.1 g

• Anti-collision Molding System prevent mold damage occurring from misalignment (Patented)

• Servo-Controlled system -Up to 40% energy saving

• Proportional backpressure controlling characteristic

Model Unit 50VI-AO 100VI-AO 200VI-AO 300VI-AO 400VI-AO 600VI-AO 800VI-AO 1000VI-AO
Clamping Force Ton 50 100 200 300 400 600 800 1000
Injection Capacity cc 500 500 2000 3000 4000 6000 8000 10000
Injection pressure kgf/cm² 1800 1800 1800 1800 1800 1800 1800 1800
Operation table size mm 300*300 400*400 550*560 700*700 700*700 850*850 1000*1000 1200*1200
Min. Mold Thickness mm 50 50 100 100 100 100 150 150
Plunger stroke mm 300 350 400 400 400 500 500 500
Distance of Thermo-plate mm 350~450 400~500 500~600 500~600 500~600 600~700 650~800 650~800
Distance of Tie bar mm 400*140 515*230 640*310 820*395 820*395 970*500 1140*600 1340*800
Die sinking type 2RT-3RT-4RT-Upper Mold-Lower Mold

Max. Operating

Pressure

 Mpa 20 20 20 20 20 20 20 20
Motor Power hp 7.5 10 15 15 15 20 20 25

Electric Heating Power

 Kw 8.4 10 15.3 24 24 29.75 35 42
Total Power Kw 16.9 20.5 30.3 39 39 48.75 54 64.5
Gross weight Ton 5.5 6 7.5 9 10 14.2 17.5 21

Dimension

(L*W*H)

 mm

2000*1500

*H2800

2400*1650

*3200

2600*2000

*4000

2750*2265

*4200

2750*2265

*4200

3200*2500

*4350

L3450*W2750

*H4500

3750*3050

*5000
