Specifications
Plastic Processed :
rubber
Condition :
New
Style :
VERTICAL
Injection Rate (g/s) :
100
Machine Type :
Hydraulic
Injection Weight (g) :
200
Screw diameter (mm) :
30
Distance between Tie Bars :
tbd
Weight (KG) :
6000
Type :
Injection molding machine
Place of Origin :
Guangdong, China
Model Number :
VI-AO
Brand Name :
JuChuan
Power (kW) :
15
Warranty :
1 Year
Key Selling Points :
Competitive Price
Applicable Industries :
Manufacturing Plant
Plastic Type :
Thermoplastic
Automatic :
Yes
After-sales Service Provided :
Video technical support, Online support, Engineers available to service machinery overseas
Certification :
CE ISO9001
Clamping Force (kN) :
200
Clamp Force(Ton) :
50~1000
Injection Volume(cc) :
500~10000
Injection Pressure(kgf/xm2) :
1800
Platen Size(mm) :
300*300~1200*1200
Plunge Stroke(mm) :
300~500
Heater Capacity(kw) :
8.4~42
Gross Weight(Ton) :
5.5~21
Port :
Guangzhou
Supply Ability :
100 Unit/Units per Month
Price :
$20,000.00 - $40,000.00/acres
Description

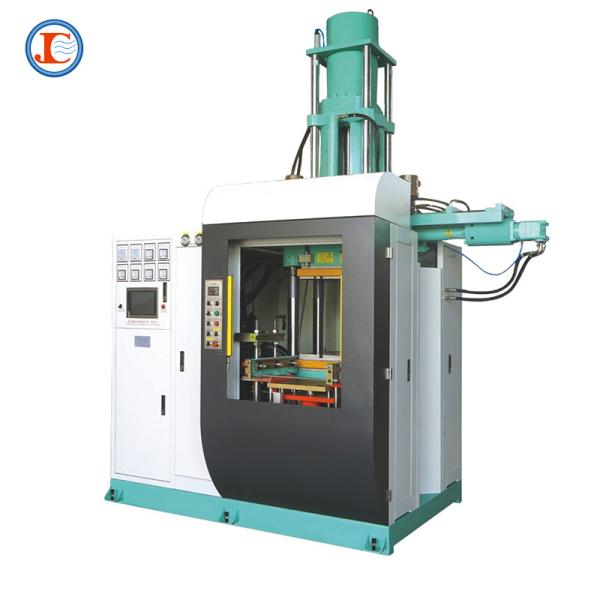

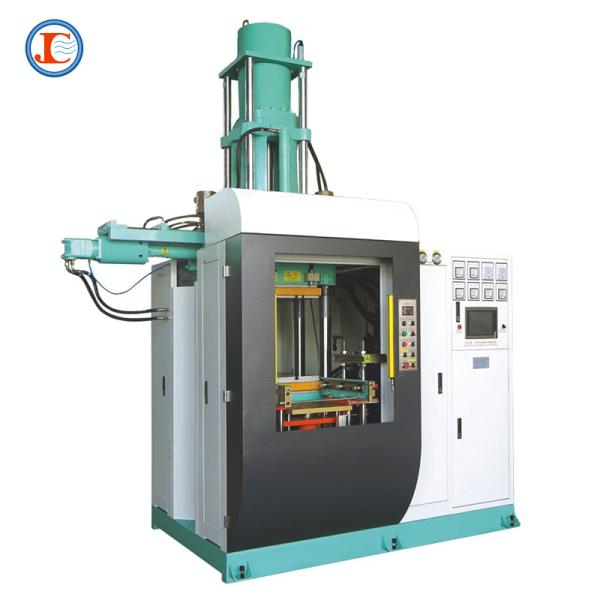

Full Automatic Energy-Saving Taiwan Rubber Injection Moulding Machine

VI-AO Series Vertical "all-in-out" Silicone/Synthetic Rubber Injection Machine

Feature:

• Suitable for automotive and electronic rubber parts, high/cold temp precision rubber parts, especially NBR products

• All-in-out structure, sprueless injection without material loss controllable injecting material temperature

• Excellent for high precision molding part

• 5-10 times better accuracy than conventional injection machine the measuring precision of 1000cc injection volume is up to ±0.1 g

• Anti-collision Molding System prevent mold damage occurring from misalignment (Patented)

• Servo-Controlled system -Up to 40% energy saving

• Proportional backpressure controlling characteristic

ModelUnit50VI-AO100VI-AO200VI-AO300VI-AO400VI-AO600VI-AO800VI-AO1000VI-AO
Clamping ForceTon501002003004006008001000
Injection Capacitycc5005002000300040006000800010000
Injection pressurekgf/cm²18001800180018001800180018001800
Operation table sizemm300*300400*400550*560700*700700*700850*8501000*10001200*1200
Min. Mold Thicknessmm5050100100100100150150
Plunger stroke mm300350400400400500500500
Distance of Thermo-plate mm350~450400~500500~600500~600500~600600~700650~800650~800
Distance of Tie bar mm400*140515*230640*310820*395820*395970*5001140*6001340*800
Die sinking type2RT-3RT-4RT-Upper Mold-Lower Mold

Max. Operating

Pressure

Mpa2020202020202020
Motor Powerhp7.510151515202025

Electric Heating Power

Kw8.41015.3242429.753542
Total PowerKw16.920.530.3393948.755464.5
Gross weightTon5.567.591014.217.521

Dimension

(L*W*H)

mm

2000*1500

*H2800

2400*1650

*3200

2600*2000

*4000

2750*2265

*4200

2750*2265

*4200

3200*2500

*4350

L3450*W2750

*H4500

3750*3050

*5000

Full Automatic Energy-Saving Taiwan Rubber Injection Moulding MachineFull Automatic Energy-Saving Taiwan Rubber Injection Moulding MachineFull Automatic Energy-Saving Taiwan Rubber Injection Moulding Machine

Product Features

Full Automatic Energy-Saving Taiwan Rubber Injection Moulding MachineFull Automatic Energy-Saving Taiwan Rubber Injection Moulding Machine

Application

Full Automatic Energy-Saving Taiwan Rubber Injection Moulding Machine

Full Automatic Energy-Saving Taiwan Rubber Injection Moulding MachineFull Automatic Energy-Saving Taiwan Rubber Injection Moulding MachineFull Automatic Energy-Saving Taiwan Rubber Injection Moulding Machine
Company Information

Full Automatic Energy-Saving Taiwan Rubber Injection Moulding MachineFull Automatic Energy-Saving Taiwan Rubber Injection Moulding Machine

FAQ

Full Automatic Energy-Saving Taiwan Rubber Injection Moulding Machine

If you have any queries and suggestions, please feel free to let us know:

Tel/Watapp:0086-020-34812609
