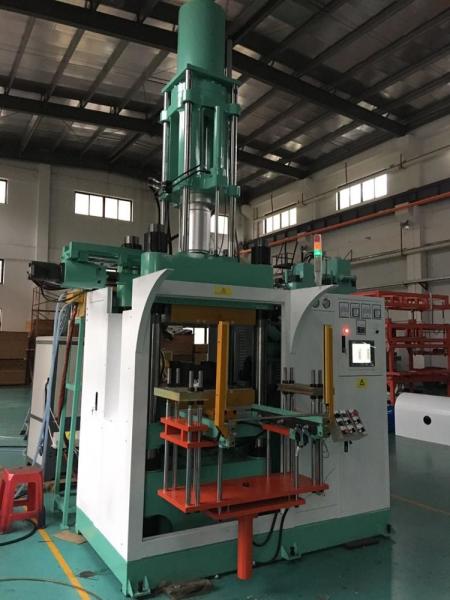

Rubber Bushing Bellows Molding Machine 400 Ton Injection Rubber
Rubber Bushing Bellows Molding Machine 400 Ton Injection Rubber
Rubber Bushing Bellows Molding Machine 400 Ton Injection Rubber
Rubber Bushing Bellows Molding Machine 400 Ton Injection Rubber
Rubber Bushing Bellows Molding Machine 400 Ton Injection Rubber
Rubber Bushing Bellows Molding Machine 400 Ton Injection Rubber
Rubber Bushing Bellows Molding Machine 400 Ton Injection Rubber
Rubber Bushing Bellows Molding Machine 400 Ton Injection Rubber
Rubber Bushing Bellows Molding Machine 400 Ton Injection Rubber
Rubber Bushing Bellows Molding Machine 400 Ton Injection Rubber
Rubber Bushing Bellows Molding Machine 400 Ton Injection Rubber
Rubber Bushing Bellows Molding Machine 400 Ton Injection Rubber
Specifications
Place of Origin :
Guangdong, China
Brand Name :
JUCHUAN
Certification :
ISO9001:2015
Packaging Details :
shrink film packing
Supply Ability :
100 Unit/Units per Month
Price :
$20,000.00 - $46,800.00/acres
Model Number :
JC-VI-AO
MOQ :
1set
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
45 days
Condition :
New
Voltage :
380v
Dimension(L*W*H) :
2600*2000*4000mm
Weight :
7.5ton
Warranty :
1 Year
After-sales Service Provided :
Online support, Video technical support, Engineers available to service machinery overseas
Power :
30.3kw
Clamp Force(Ton) :
50~1000
Injection Volume(cc) :
500~10000
Injection Pressure(kgf/xm2) :
1800
Platen Size(mm) :
300*300~1200*1200
Plunge Stroke(mm) :
300~500
Heater Capacity(kw) :
8.4~42
Gross Weight(Ton) :
5.5~21
Port :
Guangzhou
Description

Rubber Bushing Bellows Molding Machine 400 Ton Injection Rubber

Rubber Bushing Bellows Molding Machine 400 Ton Injection Rubber

New Arrival "all-in-all-out" Injection Molding Technology:

  1. Visible Feeding System:
  2. Excellent Plasticizing Effects:
  3. High Temperature Ranges:
  4. Save Raw Rubber Material:

Machine Technical Charateristics:

  1. Suitable for automotive and electronic rubber parts, high / cold temprature precision rubber parts, especially NBR products.

  2. All-in-out structure, sprueless injection without material loss controlable injecting material temperature.

  3. Excellent for high precision molding part

  4. 5-10 times better accuracy than conventional injection machine the measuring precision of 1000cc injection volume is up to ±0.1g

  5. Anti-collision molding system prevent mold damage occurring from misalignment(patented)

  6. Servo-controlled system up to 40% energy saving

  7. Proportional backpressure controlling characteristic

Technical parameter

Technical Parameters:

Model Unit 200VI-AO 300VI-AO 400VI-AO 600VI-AO
Clamping Force Ton 200 300 400 600
Injection Capacity cc 2000 3000 4000 6000
Injection pressure kgf/cm² 1800 1800 1800 1800
Operation table size mm 550*560 700*700 700*700 850*850
Min. Mold Thickness mm 100 100 100 100
Plunger stroke mm 400 400 400 500
Distance of Thermo-plate mm 500~600 500~600 500~600 600~700
Distance of Tie bar mm 640*310 820*395 820*395 970*500
Die sinking type 2RT/ 3RT/ 4RT-Upper Ejector-Bottom Ejector
Max. Operating Pressure Mpa 20 20 20 20
Motor Power hp 15 15 15 20
Electric Heating Power Kw 15.3 24 24 29.75
Total Power Kw 30.3 39 39 48.75
Gross weight Ton 7.5 9 10 14.2
Dimension mm L2600*W2000*H4000 L2750*W2265*H4200 L2750*W2265*H4200 L3200*W2500*H4350

Shipping and packing

Rubber Bushing Bellows Molding Machine 400 Ton Injection Rubber

Company information

* Guangzhou JuChuan Machinery Co. Ltd. has been established in 1997 with a covering area of 20,000 square meters and over 20 sets of processing equipment. Our major products are including silicone rubber injection molding machine, vacuum compression molding machine, hydraulic hot press machine, injection molds, customized equipment and auxiliary equipment like robot arms.

* Our products have gained the national patents with efforts of the esteemed engineers, the advanced R&D ability, and the long-term technical cooperation with German company. We have a completed quality management system and excellent after-sale service system based on the standard GB/T19001-2016/ISO9001-2015. With the idea of "Quality is the BASIC to create value", we commit to provide the best technical support and sales services for all our customers.

* Nowadays, our products export to Germany, Russia, Ukraine, Turkey, Thailand, Vietnam, Malaysia, Indonesia, India, Cambodia, Saudi Arabia, Sudan, South Africa, Nigeria, Kenya, Morocco, Pakistan, Iran, Tunisia, Egypt, Israel, Afghanistan, Kazakhstan, Guatemala and Mexico.

Our Main Products

Vertical Solid Silicone Injection Molding machine

Vertical Rubber Injection Molding machine

Horizontal Silicone Injection Molding machine

Horizontal Rubber Injection Molding machine

Liquid Silicone Injection Molding machine

Vacuum compression Molding machine

Hydraulic Vulcanizing Hot Press machine

Brake Pads Brake Lining Hot Press Machine

Rubber Bushing Bellows Molding Machine 400 Ton Injection Rubber

Trade Show

Rubber Bushing Bellows Molding Machine 400 Ton Injection Rubber

Our service:

1. Free technology training: you can come for inspection and training for free.

2. Free Installation and debugging: Our engineers will teach you about the installation and debugging for free.

3. After-sales service: We will supply the free repairmen on this machine for one year, but will supply the maintenance lifetime. (The service is only for natural damage)

4. Online remote control for software problems, whatspp or wechat for video checking.

Rubber Bushing Bellows Molding Machine 400 Ton Injection Rubber
