Specifications
Place of Origin :
Guangdong, China
Model Number :
JC-VI-AO
Brand Name :
JuChuan
Certification :
ISO9001:2015
Supply Ability :
100 Sets per Month
Price :
$16800 - $30000/set
MOQ :
1set
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
45 days
Packaging Details :
container
Color :
Blue or as your choice
Clamp Force(Ton) :
50~1000
Plunger Stroke :
200 - 350
Heating Plates Distance(mm) :
200 - 350
Tie Bar Distance(mm) :
490*230 - 1840*570
Mold Opening Type :
2RT-3RT-4RT-Track-Suspension
Total Power(KW) :
25.4 - 144.5
Gross Weight(Ton) :
5.5~21
Automatic :
Yes
Injection Weight :
500~10000cc
Injection Volume(cc) :
500~10000
Injection Pressure(kgf/xm2) :
1800
Platen Size(mm) :
300*300~1200*1200
Plunge Stroke(mm) :
300~500
Heater Capacity(kw) :
8.4~42
clamp force :
50-1000
injection volume :
500-4000
injection pressure :
1800
plunger stroke :
300-500
opening mold :
2RT3RT4RT
Gross weight :
5.5-10ton
Description

Silicone Injection Molding Machine for making auto parts kitchen products medical products

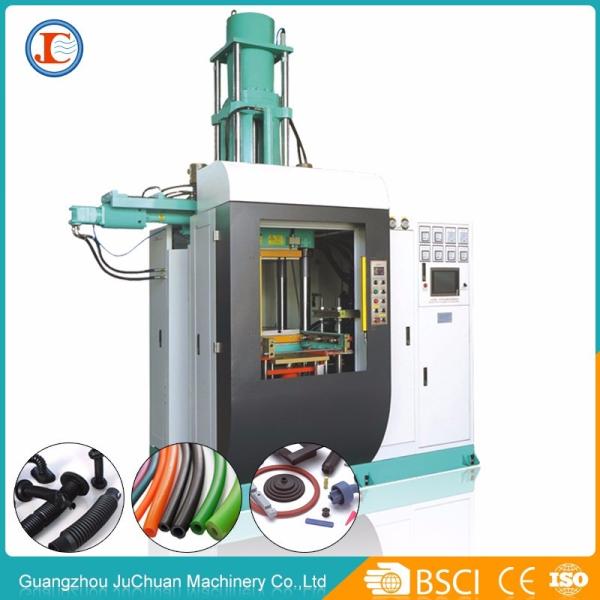

VI-AO Series Vertical "all-in-out" Silicone/Ssynthetic Rubber Injeciton Molding Machine

Feature:

• Suitable for automotive and electronic rubber parts, high/cold temp precision rubber parts, especially NBR products

• All-in-out structure, sprueless injection without material loss controllable injecting material temperature

• Excellent for high precision molding part

• 5-10 times better accuracy than conventional injection machine the measuring precision of 1000cc injection volume is up to ±0.1 g

• Anti-collision Molding System prevent mold damage occurring from misalignment (Patented)

• Servo-Controlled system -Up to 40% energy saving

• Proportional backpressure controlling characteristic

Model Unit 50VI-AO 100VI-AO 200VI-AO 300VI-AO 400VI-AO 600VI-AO 800VI-AO 1000VI-AO
Clamping Force Ton 50 100 200 300 400 600 800 1000
Injection Capacity cc 500 500 2000 3000 4000 6000 8000 10000
Injection pressure kgf/cm² 1800 1800 1800 1800 1800 1800 1800 1800
Operation table size mm 300*300 400*400 550*560 700*700 700*700 850*850 1000*1000 1200*1200
Min. Mold Thickness mm 50 50 100 100 100 100 150 150
Plunger stroke mm 300 350 400 400 400 500 500 500
Distance of Thermo-plate mm 350~450 400~500 500~600 500~600 500~600 600~700 650~800 650~800
Distance of Tie bar mm 400*140 515*230 640*310 820*395 820*395 970*500 1140*600 1340*800
Die sinking type 2RT-3RT-4RT-Upper Mold-Lower Mold

Max. Operating

Pressure

 Mpa 20 20 20 20 20 20 20 20
Motor Power hp 7.5 10 15 15 15 20 20 25

Electric Heating Power

 Kw 8.4 10 15.3 24 24 29.75 35 42
Total Power Kw 16.9 20.5 30.3 39 39 48.75 54 64.5
Gross weight Ton 5.5 6 7.5 9 10 14.2 17.5 21

Dimension

(L*W*H)

 mm

2000*1500

*H2800

2400*1650

*3200

2600*2000

*4000

2750*2265

*4200

2750*2265

*4200

3200*2500

*4350

L3450*W2750

*H4500

3750*3050

*5000
