Specifications
Brand Name :
Juchuan
Model Number :
JC-VI-AO
Place of Origin :
China Guangzhou
Certification :
ISO9001:2015
MOQ :
1set
Price :
USD15000-25000/set
Packaging Details :
Fixed with hard straps
Delivery Time :
45 days
Payment Terms :
T/T. 30% of deposit, 70% before shipment
Supply Ability :
100 Unit/Units per Month
Operation Language :
English/Chinese
Clamping Force :
100-300T
Clamping Stroke :
200-500mm
Injection Rate :
20-500g/s
Type :
Vertical
Screw Diameter :
20-60mm
Heating Power :
6-30KW
Injection Pressure :
100-300MPa
Description

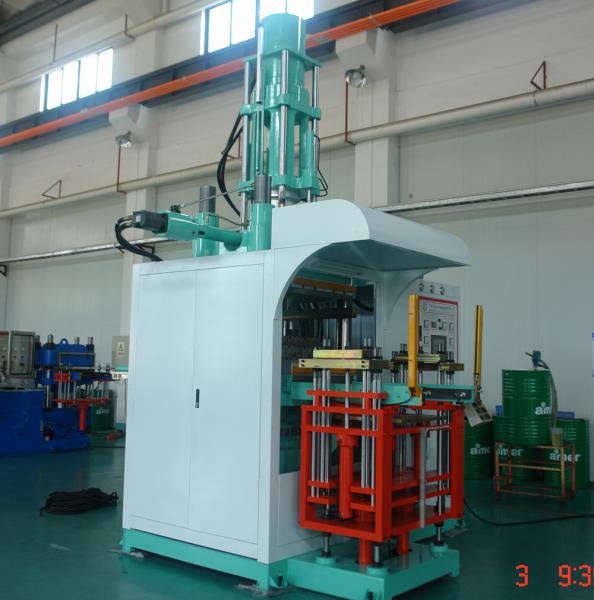

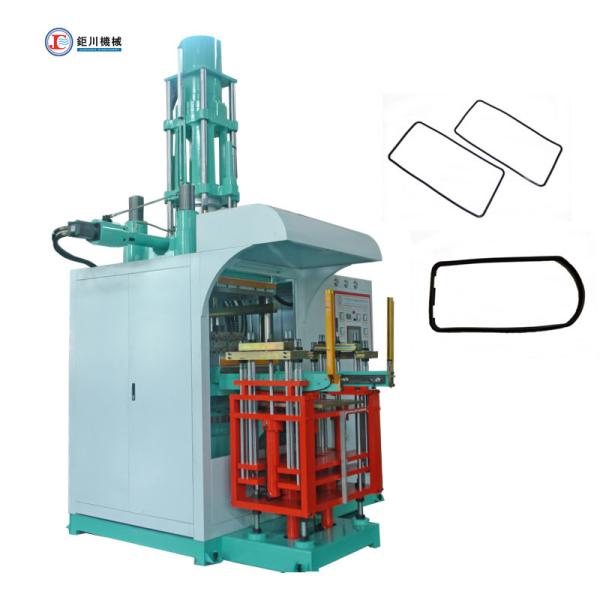

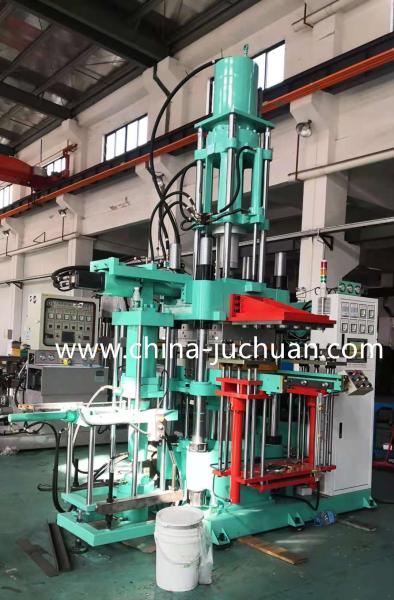

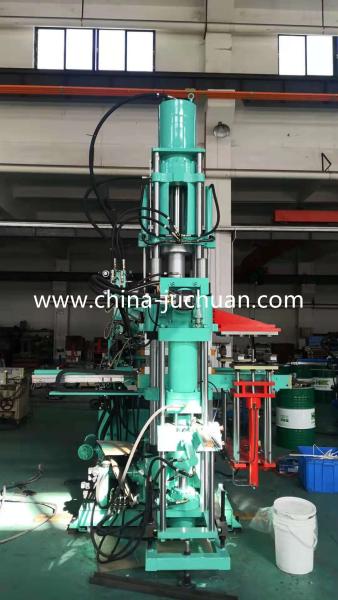

Robust Silicone Injection Machine For Maternal And Infant Products

Feature:

• Suitable for automotive and electronic rubber parts, high/cold temp precision rubber parts, especially NBR products

• All-in-out structure, sprueless injection without material loss controllable injecting material temperature

• Excellent for high precision molding part

• 5-10 times better accuracy than conventional injection machine the measuring precision of 1000cc injection volume is up to ±0.1 g

• Anti-collision Molding System prevent mold damage occurring from misalignment (Patented)

• Servo-Controlled system -Up to 40% energy saving

• Proportional backpressure controlling characteristic

Model Unit 50VI-AO 100VI-AO 200VI-AO 300VI-AO 400VI-AO 600VI-AO 800VI-AO 1000VI-AO
Clamping Force Ton 50 100 200 300 400 600 800 1000
Injection Capacity cc 500 500 2000 3000 4000 6000 8000 10000
Injection pressure kgf/cm² 1800 1800 1800 1800 1800 1800 1800 1800
Operation table size mm 300*300 400*400 550*560 700*700 700*700 850*850 1000*1000 1200*1200
Min. Mold Thickness mm 50 50 100 100 100 100 150 150
Plunger stroke mm 300 350 400 400 400 500 500 500
Distance of Thermo-plate mm 350~450 400~500 500~600 500~600 500~600 600~700 650~800 650~800
Distance of Tie bar mm 400*140 515*230 640*310 820*395 820*395 970*500 1140*600 1340*800
Die sinking type 2RT-3RT-4RT-Upper Mold-Lower Mold

Max. Operating

Pressure

 Mpa 20 20 20 20 20 20 20 20
Motor Power hp 7.5 10 15 15 15 20 20 25
Electric Heating Power Kw 8.4 10 15.3 24 24 29.75 35 42
Total Power Kw 16.9 20.5 30.3 39 39 48.75 54 64.5
Gross weight Ton 5.5 6 7.5 9 10 14.2 17.5 21

Dimension

(L*W*H)

 mm

2000*1500

*H2800

2400*1650

*3200

2600*2000

*4000

2750*2265

*4200

2750*2265

*4200

3200*2500

*4350

L3450*W2750

*H4500

3750*3050

*5000

Robust Silicone Injection Machine For Maternal And Infant ProductsRobust Silicone Injection Machine For Maternal And Infant ProductsRobust Silicone Injection Machine For Maternal And Infant Products

Product Features

Robust Silicone Injection Machine For Maternal And Infant ProductsRobust Silicone Injection Machine For Maternal And Infant Products

Application

Robust Silicone Injection Machine For Maternal And Infant Products
