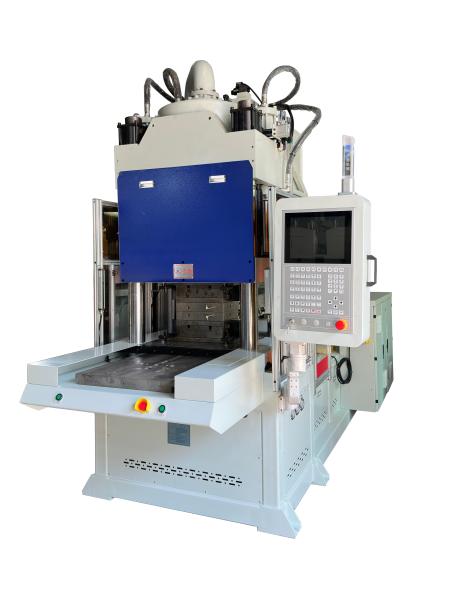

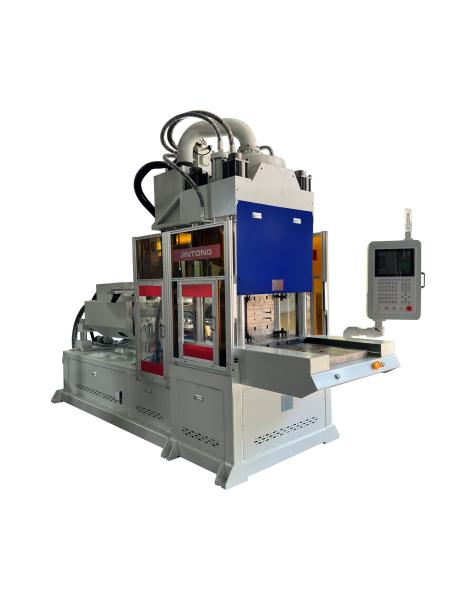

Golf Ball Vertical Injection Molding machine JTKR-2100D
Golf Ball Vertical Injection Molding machine JTKR-2100D
Golf Ball Vertical Injection Molding machine JTKR-2100D
Golf Ball Vertical Injection Molding machine JTKR-2100D
Specifications
Brand Name :
JINTONG
Model Number :
JTKR-2100D
Certification :
ISO9001 CE
Place of Origin :
Guangdong, China
MOQ :
1PC
Price :
$65000.00 - $70000.00/pieces
Supply Ability :
60 Piece/Pieces per Month
Delivery Time :
55 days
Packaging Details :
plastic film
Condition :
New
Style :
VERTICAL
Machine Type :
Hydraulic
Power (kW) :
36.3 kW
Warranty :
1 Year
Key Selling Points :
High-accuracy
Applicable Industries :
Manufacturing Plant
Showroom Location :
None
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Bearing, Motor, Pump, PLC, Pressure vessel, Engine
After-sales Service Provided :
Engineers available to service machinery overseas, Free spare parts, Online support
clamping force :
220T
After Warranty Service :
Video technical support, Online support, Spare parts
Local Service Location :
United States, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, India, Mexico, Russia, Thailand, Malaysia, Australia, Colombia, Bangladesh, South Africa, Ukraine
Port :
SHENZHEN
Description

210T Golf Vertical Clamping Horizontal Injection Molding Machine JTKR-2100D



Clamping Force: 210T


Vertical clamping, horizontal injection

Easy to set torque , speed, deceleration distance and stand number segmentation

Energy-saving system

Single slide table

Main Features

1) vertical clamping, horizontal injection,

2) clamping force, injection weight and shot speed can be changed according to actual demand.

UNIT JTKR-2200
INJECTION SYSTEM screw diameter mm 65
injection pressure kg/cm2 1416
theoretical shot volume cm3 1061
injection rate cm3/sec 71
screw stroke mm 180
screw speed rpm 0-160
nozzle contact force tons 6
temprature control number - 6
CLAMPING SYSTEM clamping force tons 220
opening force tons 18
distance between tie bar mm 1500*1300
min mould height mm 1200*1000
opening stroke mm 550
max open daylight mm 550
ejector force tons 1100
ejector stroke mm 7
OIL PRESSURE SYSTEM max hydraulic pressure kg/cm2 150
pump output L/min 140
oil reservoir capacity L 800
cooling water consumption /hr 1500-2000
SERVO motor power KW 40
heating power kw 25
total power kw 65
OTHER machine weight tons 17
machine dimension m 4.4*1.75*3.5

Certifications
Golf Ball Vertical Injection Molding machine JTKR-2100D
Golf Ball Vertical Injection Molding machine JTKR-2100D
Golf Ball Vertical Injection Molding machine JTKR-2100D
Golf Ball Vertical Injection Molding machine JTKR-2100D
Detailed Images
Golf Ball Vertical Injection Molding machine JTKR-2100D
Golf Ball Vertical Injection Molding machine JTKR-2100D
Golf Ball Vertical Injection Molding machine JTKR-2100D
Our Service
Golf Ball Vertical Injection Molding machine JTKR-2100D

PRODUCT ADVANTAGE

Energy-saving: save 30% energy compared to similar products by using SIFU pump system

High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed

Low heating: save 55% cooling water quantity at least compared to similar products

Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise

Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency

Golf Ball Vertical Injection Molding machine JTKR-2100D

SERVICE ADVANTAGE

17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.

Packing & Delivery
Golf Ball Vertical Injection Molding machine JTKR-2100D
Golf Ball Vertical Injection Molding machine JTKR-2100D
Golf Ball Vertical Injection Molding machine JTKR-2100D
Golf Ball Vertical Injection Molding machine JTKR-2100D
