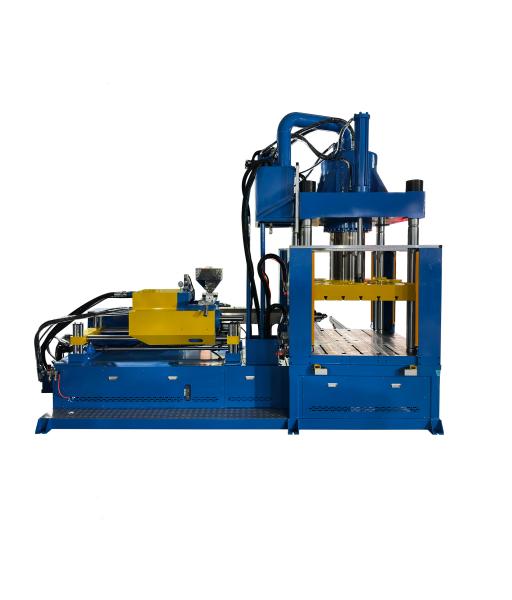

220T Vertical Clamping Horizontal Injection Molding Machine
220T Vertical Clamping Horizontal Injection Molding Machine
220T Vertical Clamping Horizontal Injection Molding Machine
220T Vertical Clamping Horizontal Injection Molding Machine
Specifications
Brand Name :
JINTONG
Model Number :
JTKR-2200
Certification :
ISO9001 CE
Place of Origin :
Guangdong, China
MOQ :
1PC
Price :
$65000.00 - $70000.00/pieces
Supply Ability :
60 Piece/Pieces per Month
Delivery Time :
55 days
Packaging Details :
plastic film
Condition :
New
Style :
VERTICAL
Machine Type :
Hydraulic
Power (kW) :
36.3 kW
Warranty :
1 Year
Key Selling Points :
High-accuracy
Applicable Industries :
Manufacturing Plant
Showroom Location :
None
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Bearing, Motor, Pump, PLC, Pressure vessel, Engine
After-sales Service Provided :
Engineers available to service machinery overseas, Free spare parts, Online support
clamping force :
220T
After Warranty Service :
Video technical support, Online support, Spare parts
Local Service Location :
United States, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, India, Mexico, Russia, Thailand, Malaysia, Australia, Colombia, Bangladesh, South Africa, Ukraine
Port :
SHENZHEN
Description

220T Vertical Clamping Horizontal Injection Molding Machine

Product Description

220T vertical clamping horizontal Injection Molding Machine

Clamping Force: 220T


Vertical clamping, horizontal injection

Easy to set torque , speed, deceleration distance and stand number segmentation

Energy-saving system

Main Features

1) vertical clamping, horizontal injection,

2) clamping force, injection weight and shot speed can be changed according to actual demand.

UNIT JTKR-2200
INJECTION SYSTEM screw diameter mm 65
injection pressure kg/cm2 1416
theoretical shot volume cm3 1061
injection rate cm3/sec 71
screw stroke mm 180
screw speed rpm 0-160
nozzle contact force tons 6
temprature control number - 6
CLAMPING SYSTEM clamping force tons 220
opening force tons 18
distance between tie bar mm 1500*1300
min mould height mm 1200*1000
opening stroke mm 550
max open daylight mm 550
ejector force tons 1100
ejector stroke mm 7
OIL PRESSURE SYSTEM max hydraulic pressure kg/cm2 150
pump output L/min 140
oil reservoir capacity L 800
cooling water consumption /hr 1500-2000
SERVO motor power KW 40
heating power kw 25
total power kw 65
OTHER machine weight tons 17
machine dimension m 4.4*1.75*3.5

Certifications
220T Vertical Clamping Horizontal Injection Molding Machine
220T Vertical Clamping Horizontal Injection Molding Machine
220T Vertical Clamping Horizontal Injection Molding Machine
220T Vertical Clamping Horizontal Injection Molding Machine
Detailed Images
220T Vertical Clamping Horizontal Injection Molding Machine
220T Vertical Clamping Horizontal Injection Molding Machine
220T Vertical Clamping Horizontal Injection Molding Machine
Our Service
220T Vertical Clamping Horizontal Injection Molding Machine

PRODUCT ADVANTAGE

Energy-saving: save 30% energy compared to similar products by using SIFU pump system

High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed

Low heating: save 55% cooling water quantity at least compared to similar products

Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise

Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency

220T Vertical Clamping Horizontal Injection Molding Machine

SERVICE ADVANTAGE

17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.
