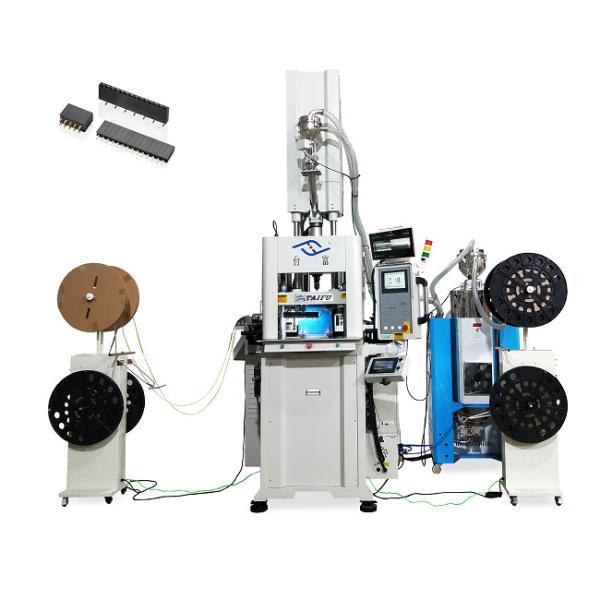

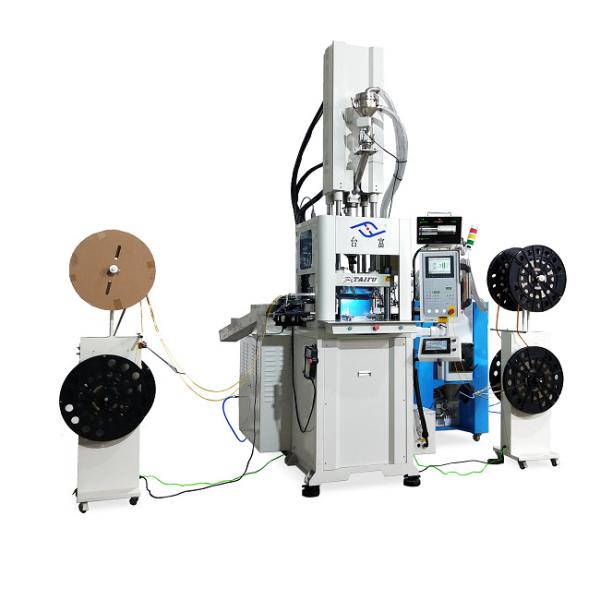

High Precision High Speed Vertical Injection Molding Machine For Making Connector
High Precision High Speed Vertical Injection Molding Machine For Making Connector
High Precision High Speed Vertical Injection Molding Machine For Making Connector
High Precision High Speed Vertical Injection Molding Machine For Making Connector
High Precision High Speed Vertical Injection Molding Machine For Making Connector
High Precision High Speed Vertical Injection Molding Machine For Making Connector
High Precision High Speed Vertical Injection Molding Machine For Making Connector
High Precision High Speed Vertical Injection Molding Machine For Making Connector
High Precision High Speed Vertical Injection Molding Machine For Making Connector
High Precision High Speed Vertical Injection Molding Machine For Making Connector
Specifications
Brand Name :
TAIFU
Model Number :
TFV4-55SP
Certification :
CE, ISO9001
Place of Origin :
Dongguan, China
MOQ :
1 set
Price :
Negotiable
Supply Ability :
240 sets/month
Delivery Time :
Negotiable
Packaging Details :
All the machines are fixed and well packaged in the plywood cases.
Name :
High Precision High Speed Vertical Injection Molding Machine For Making Connector
Model :
TFV4-55SP
Function :
Making plastic product
Usage :
Disposable tableware
Key selling points :
High precision
Machine dimensions :
1.9*1.3 m
Color :
White
Warranty :
1 year
Description

High Precision High Speed Vertical Injection Molding Machine For Making Connector

Dongguan Taifu Machinery Co., Ltd. was established in 2009 and is located in Dongguan, Guangdong Province. With a global perspective, we specialize in the manufacturing of injection molding equipment and are a vertical injection molding machine supplier that integrates design, research and development, production, sales, and service. High speed vertical injection molding machine is one of our company's main products. Using an energy storage device, the maximum firing rate can reach 600mm/sec. The best and most stable choice for ultra-thin molded products with a meat thickness of over 0.1mm, adopting imported hydraulic components and electronic control, it has fast response, high accuracy, stability, and durability.

We can customize and develop according to the actual needs of customers and provide the most precise, efficient and economical personalized combination solution.

High Precision High Speed Vertical Injection Molding Machine For Making Connector
Specification Model Unit Parameter
Injection Unit Screw Diameter mm Ф22 Ф26
Theoretical Injection Volume cm3 38 53
Injection Weight(PS) g(oz) 35(1.23) 49(1.72)
Max.Injection Pressure Mpa(kgf/cm2) 181(1851) 130(1325)
Injection Rate cm3/s 119 167
Injection Speed mm/s 315
Screw Speed Rotation r.p.m 0-350
Nozzle Out From Platens mm ≥45
Clamping Unit Clamping Force KN(tf) 539(55)
Clamping Stroke mm 250
Min.Mold Thickness mm 180(240)
Max.Opening mm 380(440)
(L*W)Distance Between Tie Bars mm 445*255
(L*W)Max. Mould Size mm 425*380
(L*W)尺寸Platen Size mm 580*400
Ejector Distance mm 40
Others Ejector Force KN(tf) 17.2(1.75)
System Pressure Mpa(kgf/cm2) 13.7(140)
Oil Tank Capacity L 140
Electric Power KW(HP) 15(20)
Heater Power KW 2.2
Machine Size L*W*H m 1.9*1.3*3.1
Machine Weight tf 1.7

High Precision High Speed Vertical Injection Molding Machine For Making Connector

High Precision High Speed Vertical Injection Molding Machine For Making Connector

High Precision High Speed Vertical Injection Molding Machine For Making ConnectorHigh Precision High Speed Vertical Injection Molding Machine For Making Connector

High Precision High Speed Vertical Injection Molding Machine For Making Connector

High Precision High Speed Vertical Injection Molding Machine For Making ConnectorHigh Precision High Speed Vertical Injection Molding Machine For Making Connector

High Precision High Speed Vertical Injection Molding Machine For Making Connector

High Precision High Speed Vertical Injection Molding Machine For Making Connector

High Precision High Speed Vertical Injection Molding Machine For Making Connector

· WHO WE ARE

TAIFU Machinery is a professional manufacturer of vertical injection molding machines integrated with strong capabilities of R&D, manufacturing and services, with more than 15 years manufacturing experience; 100 employees; 15,000 square feet of manufacturing floor spaces and with facility in the Dongguan city, Guangdong province, China. We are certified by ISO9001, CE and patents 20 inventions.


We aims to supply quality products and excellent services to create value for customers on the basis of integrity, innovation, and win-win cooperation. TAIFU Machinery will be your most valuable and reliable partner in business.

High Precision High Speed Vertical Injection Molding Machine For Making Connector

· OFFICE AREA

High Precision High Speed Vertical Injection Molding Machine For Making Connector

High Precision High Speed Vertical Injection Molding Machine For Making Connector

We have 15,000 square feet of manufacturing floor space and with facilities in China. All the machines are manufactured by our own employees in our own factory.

  • FACTORY AREA ​​​
· Parts processing center

High Precision High Speed Vertical Injection Molding Machine For Making Connector

  • Machine assembly workshop

High Precision High Speed Vertical Injection Molding Machine For Making Connector

  • Warehouse

High Precision High Speed Vertical Injection Molding Machine For Making Connector

  • Finished product machine shop

High Precision High Speed Vertical Injection Molding Machine For Making Connector

  • PHOTOS OF DIFFERENT EXHIBITIONS

High Precision High Speed Vertical Injection Molding Machine For Making Connector

  • DELIVERY

We products and delivers more than 2,000 sets of vertical injection molding machines annually. All the machines will be packed well before shipment.

High Precision High Speed Vertical Injection Molding Machine For Making Connector

  • CUSTOMER SITES

We provide one-stop solutions of plastic injection molding from raw material to automation, trying to create more values for our customers.

High Precision High Speed Vertical Injection Molding Machine For Making Connector

For more than 15 years, we have recognized our customers as long-term partners, growing together. Take advantage of this global strength, and grow with us as we grow with you.

  • COOPERATIVE CLIENTS

High Precision High Speed Vertical Injection Molding Machine For Making Connector

There are wide range of vertical plastic injection molding machines (thermoplastic, rubber) we provide, including Rotary table vertical injection molding machine, Bakelite machine, BMC Machine, LSR silicone injection molding machine, C-type vertical injection molding machine, etc. Not only can we provide standard machines, but we are able to also customize machines to meet your unique needs.

  • WHAT WE DO

There are wide range of vertical plastic injection molding machines (thermoplastic, rubber) we provide, including Rotary table vertical injection molding machine, Bakelite machine, BMC Machine, LSR silicone injection molding machine, C-type vertical injection molding machine, etc. Not only can we provide standard machines, but we are able to also customize machines to meet your unique needs.

  • GROUP PHOTO OF EMPLOYEES

High Precision High Speed Vertical Injection Molding Machine For Making Connector

Your Professional Vertical Injection Molding Machine Manufacturer-TAIFU

We are ready to provide a well-built, high-performance products. Contact Us Now!

High Precision High Speed Vertical Injection Molding Machine For Making Connector

High Precision High Speed Vertical Injection Molding Machine For Making Connector

Q1: Are you a trading company or manufacturer?

A: We are a factory located in Dongguan city-the largest industrial manufacturing area in China. All the machines are manufactured by our own employees in our own factory.

Q2: What are the advantages of the high speed vertical injection molding machine?

A: Adopting imported hydraulic components and electronic control, it has fast response, high accuracy, stability, and durability.

Q3: What are your payment terms?
A:T/T 50% in deposite,50% before departure.


Q4: How about your delivery time?
A:Generally speaking, it will take 20 to 45 days after receiving the advance payment. The specific delivery time depends on
Regarding your order and quantity.

Q5:How do you handle packaging and shipping?

A: Our spool are plastic-lined inside and packaged in cartons for safe transportation.However,we can also customize the packaging according to your specific requirements.
