Specifications
Brand Name :
TAIFU
Model Number :
TFV4-85-SP
Certification :
CE, ISO9001
Place of Origin :
Dongguan, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
250 sets/month
Delivery Time :
Negotiable
Packaging Details :
All the machines are fixed and well packaged in the plywood cases.
Name :
85Ton High Production Vertical High Speed Injection Molding Machine
Usage :
Crochet Hooks
Model :
TFV4-85-SP
Advantage :
High Production
Appliciation :
Plastic products
Oil Tank Capacity :
280L
After-sales Service Provided :
1 Year
Color :
White
Description

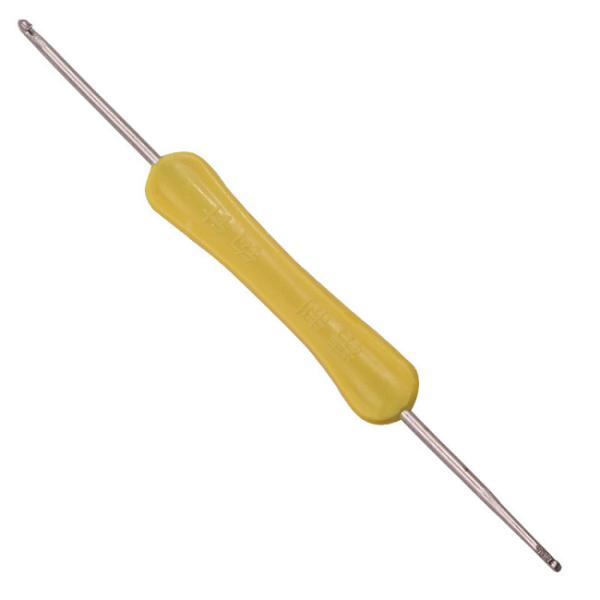

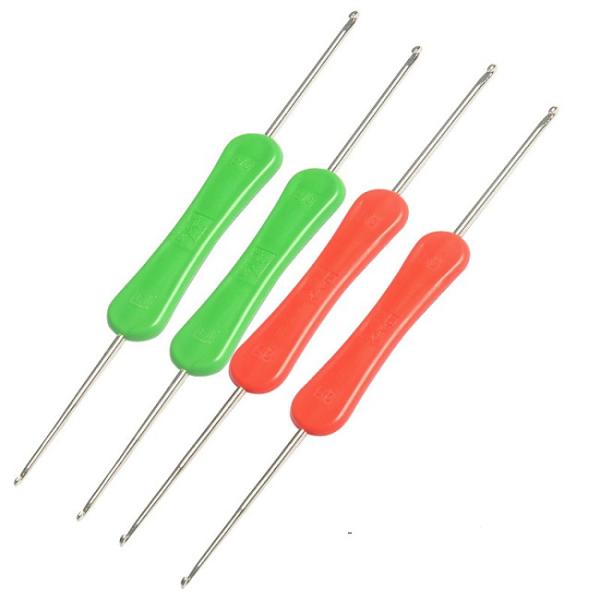

High Production Vertical High Speed Injection Molding Machine For Crochet Hooks

It is available to customize machines to meet your...

We are a professional manufacturer of vertical injection molding machines with 17 years of manufacturing experience.

The main products produced by our factory include:Vertical plastic injection molding machine, Single slide machine,Double slide machine, Bakelite machine,High speed machine,C-type vertical molding machine,etc.

The high speed of the machine is mainly reflected in the ability to choose high speed and high pressure for injection when injecting glue. Using an energy storage device, the maximum firing rate can reach 600mm/sec. Rapid injection, precise molding, and short production cycle.

85Ton High Production Vertical High Speed Injection Molding Machine For Crochet  Hooks

DONGGUAN TAIFU MACHINEY CO.,LTD
High Speed Machine Technical Parameters
ITEMS UNIT twin cylinder injection
A B C
Screw stroke mm 120 140 140
Screw Diameter mm 18 20 22 22 24 26 26 28 30
Theoretical Injection Volume cm3 31 38 46 53 63 74 74 86 99
Injection Weight(PS) g 28 35 42 49 59 69 69 80 92
oz 1.0 1.24 1.50 1.75 2.08 2.44 2.44 2.83 3.25
Max.Injection Pressure Mpa 279 226 187 248 208 178 247 213 185
kgf/cm2 2852 2310 1909 2531 2127 1812 2516 2170 1890
Injection Rate (Standard) cm3/s 51 63 76 676 90 106 96 111 127
Injection Speed (Standard) mm/s 200 200 200
Injection Rate (High Speed) cm3/s 89 110 113 152 181 212 186 216 147
Injection Speed (High Speed) mm/s 350 400 350
Screw Speed Rotation r.p.m 10~300 10~300 10~300
Nozzle Out From Platens mm ≥45 ≥45 ≥45
Heater Power KW 5.5 6.4 7.2

85Ton High Production Vertical High Speed Injection Molding Machine For Crochet  Hooks

85Ton High Production Vertical High Speed Injection Molding Machine For Crochet  Hooks

85Ton High Production Vertical High Speed Injection Molding Machine For Crochet  Hooks

85Ton High Production Vertical High Speed Injection Molding Machine For Crochet  Hooks85Ton High Production Vertical High Speed Injection Molding Machine For Crochet  Hooks85Ton High Production Vertical High Speed Injection Molding Machine For Crochet  Hooks85Ton High Production Vertical High Speed Injection Molding Machine For Crochet  Hooks

85Ton High Production Vertical High Speed Injection Molding Machine For Crochet  Hooks

85Ton High Production Vertical High Speed Injection Molding Machine For Crochet  Hooks

85Ton High Production Vertical High Speed Injection Molding Machine For Crochet  Hooks

  • WHO WE ARE

TAIFU Machinery is a professional manufacturer of vertical injection molding machines integrated with strong capabilities of R&D, manufacturing and services, with more than 15 years manufacturing experience; 100 employees; 15,000 square feet of manufacturing floor spaces and with facility in the Dongguan city, Guangdong province, China. We are certified by ISO9001, CE and patents 20 inventions.

We aims to supply quality products and excellent services to create value for customers on the basis of integrity, innovation, and win-win cooperation. TAIFU Machinery will be your most valuable and reliable partner in business.

85Ton High Production Vertical High Speed Injection Molding Machine For Crochet  Hooks

  • OFFIC AREA

85Ton High Production Vertical High Speed Injection Molding Machine For Crochet  Hooks

85Ton High Production Vertical High Speed Injection Molding Machine For Crochet  Hooks

  • FACTORY AREA

We have 15,000 square feet of manufacturing floor space and with facilities in China. All the machines are manufactured by our own employees in our own factory.

  • Parts peosessing center

85Ton High Production Vertical High Speed Injection Molding Machine For Crochet  Hooks

  • Machine assembly wproshop

85Ton High Production Vertical High Speed Injection Molding Machine For Crochet  Hooks

  • Warehouse

85Ton High Production Vertical High Speed Injection Molding Machine For Crochet  Hooks

  • Finished product machine shop

85Ton High Production Vertical High Speed Injection Molding Machine For Crochet  Hooks

  • PHOTOS OF DIFFERENT EXHIBITIONS

85Ton High Production Vertical High Speed Injection Molding Machine For Crochet  Hooks

  • DELIVERY

We products and delivers more than 2,000 sets of vertical injection molding machines annually. All the machines will be packed well before shipment.

85Ton High Production Vertical High Speed Injection Molding Machine For Crochet  Hooks

  • CUSTOMER SITES

We provide one-stop solutions of plastic injection molding from raw material to automation, trying to create more values for our customers.

85Ton High Production Vertical High Speed Injection Molding Machine For Crochet  Hooks

  • COOPERATIVE CLIENTS

For more than 15 years, we have recognized our customers as long-term partners, growing together. Take advantage of this global strength, and grow with us as we grow with you.

85Ton High Production Vertical High Speed Injection Molding Machine For Crochet  Hooks

  • WHAT WE DO

There are wide range of vertical plastic injection molding machines (thermoplastic, rubber) we provide, including Rotary table vertical injection molding machine, Bakelite machine, BMC Machine, LSR silicone injection molding machine, C-type vertical injection molding machine, etc. Not only can we provide standard machines, but we are able to also customize machines to meet your unique needs.

  • GROUP PHOTO OF EMPLOYEES

85Ton High Production Vertical High Speed Injection Molding Machine For Crochet  Hooks

Your Professional Vertical Injection Molding Machine Manufacturer-TAIFU

We are ready to provide a well-built, high-performance products. Contact Us Now!

85Ton High Production Vertical High Speed Injection Molding Machine For Crochet  Hooks

85Ton High Production Vertical High Speed Injection Molding Machine For Crochet  Hooks

Q1:Are you a trading company or manufacturer?
A:We are a factorylocated in Dongguan city-thelargest industrial manufacturing area in China. Althe machines are manufactured by our ownemployees in our own factory.


Q2: How is the product quality?
A:Unique precision sealing needle design, the nozzle hole and sealing needle seam can achieve no flash and no dead glue, ensuring the high quality of the product.


Q3: What are your payment terms?
A:T/T 50% in deposite,50% before departure.


Q3: Packaging and shipping?
A:The spool is plastic-covered inside and cartoned outside. Or according to your request.

Q4: What fields are silicone injection molding machines suitable for?
LSR silicone injection molding machines are widely used in many fields such as baby products, medical equipment, electronics, and automobiles.


Q5: How about your delivery time?
A:Generally speaking, it will take 20 to 45 days after receiving the advance payment. The specific delivery time depends on
Regarding your order and quantity.

If you are interested in it, please contact me without hesitation!
