Inner Grooved Copper Tube Aluminum Fin Evaporator Vehicle Refrigeration Unit for ≤14m³ Cold Chain Storage Truck
Inner Grooved Copper Tube Aluminum Fin Evaporator Vehicle Refrigeration Unit for ≤14m³ Cold Chain Storage Truck
Inner Grooved Copper Tube Aluminum Fin Evaporator Vehicle Refrigeration Unit for ≤14m³ Cold Chain Storage Truck
Inner Grooved Copper Tube Aluminum Fin Evaporator Vehicle Refrigeration Unit for ≤14m³ Cold Chain Storage Truck
Specifications
Temperature Range :
-25°C To +25°C
Evaporator Dimensions :
910*570*210
Cooling Capacity :
1830W (-18℃), 3250W (0℃)
Model :
X-58
Refrigerant Charge :
1.2KG
Compressor Displacement :
138 CC
Brand Name :
Yinhuasheng/OEM
Model Number :
X-58
Certification :
CE
Place of Origin :
China
MOQ :
1SET
Price :
Negotiable
Payment Terms :
TT/LC
Supply Ability :
1000 sets per month
Delivery Time :
Negotiable
Packaging Details :
Negotiable
Description
Inner Grooved Copper Tube Aluminum Fin Evaporator Vehicle Refrigeration Unit for Cold Chain Storage Truck ≤14m³

X-58 Top mounted Vehicle Refrigeration System Truck designed for reliable cold chain transportation.

  • Top mounted installation on refrigeration van or truck
  • Direct drive by vehicle engine, designed for 14m³ refrigerated trucks
  • Ideal for transporting chilled & frozen foods, medical supplies, fruits, vegetables, ice cubes, and seafood
  • OEM customized services available
  • Low operational cost and service cost
  • Easy installation process
  • Suitable for long distance transportation

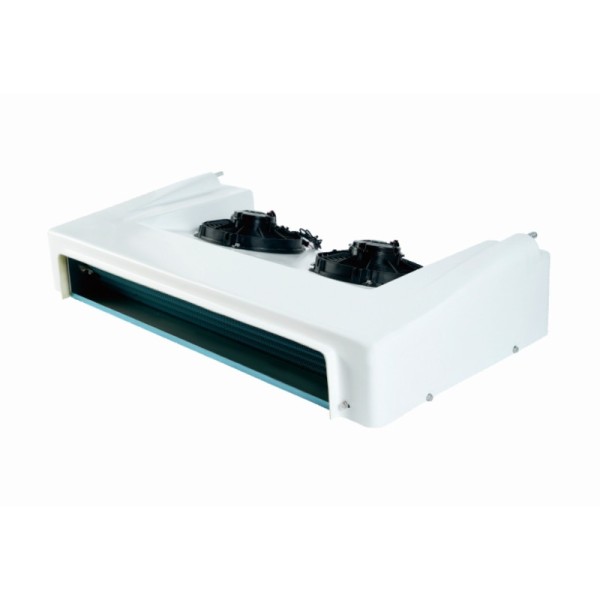

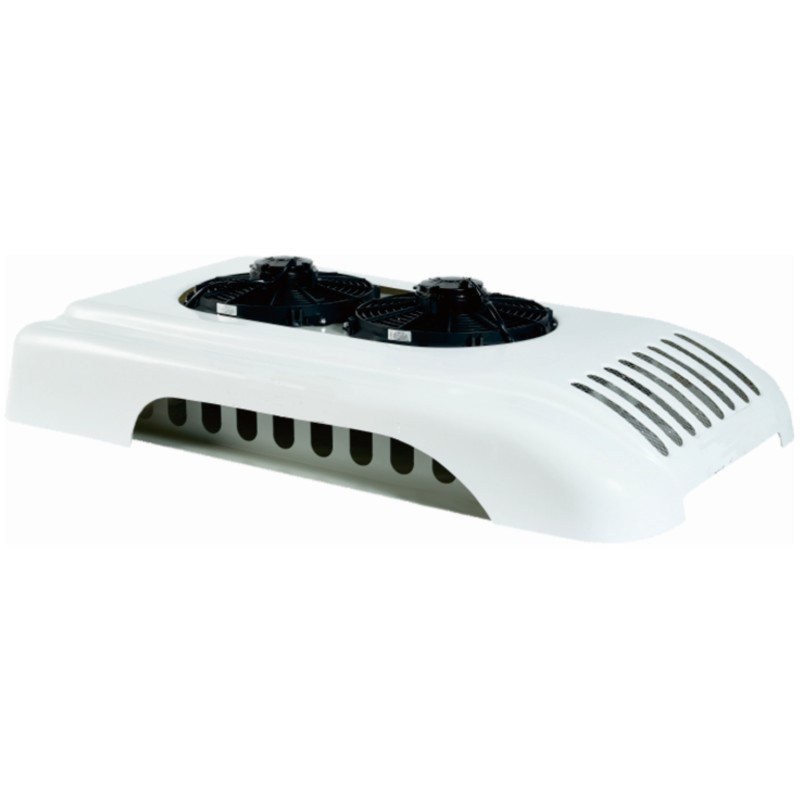

Product Images
Inner Grooved Copper Tube Aluminum Fin Evaporator Vehicle Refrigeration Unit for ≤14m³ Cold Chain Storage Truck Inner Grooved Copper Tube Aluminum Fin Evaporator Vehicle Refrigeration Unit for ≤14m³ Cold Chain Storage Truck
Key Features
  • Eco-friendly refrigerant R404A (R134a system also available)
  • Corrosion resistant and high strength FRP canning material
  • Aluminium fin parallel flow condenser, lightweight and compact with excellent heat exchange
  • Inner grooved copper tube evaporator with strong construction, large airflow and superior coil protection
  • Strong, reliable and stable compressor specifically designed for R404a systems
  • Digital display control panel for minimal operation
  • HP and LP switch safety protection
  • Large cooling capacity with reliable performance
Technical Parameters
Parameter Specification
Unit Model X-58
Applicable Temperature -25℃ ~ +25℃
Box Volume ≤14m³
Cooling Capacity (0℃) 3250 W
Cooling Capacity (-18℃) 1830 W
Compressor Model 5H14
Compressor CC 138 CC
Lubricating Oil PAG 68
Evaporator Material Inner grooved copper tube
Evaporator Fans 2 PCS
Condenser Material Parallel flow condenser
Condenser Fans 2 PCS
Refrigerant R404a
Refrigerant Charge 1.2KG
Temperature Control Electronic digital display
Safety Protection High and low pressure switch
Defrosting System Hot gas defrost automatically
Evaporator Weight 15 KG
Condenser Weight 27 KG
Evaporator Dimensions 910×570×210 mm
Condenser Dimensions 1150×690×250 mm
Drive Model Non-independent engine driven
