Van Refrigeration Unit -25°C to +25°C for Cold Chain
Van Refrigeration Unit -25°C to +25°C for Cold Chain
Van Refrigeration Unit -25°C to +25°C for Cold Chain
Van Refrigeration Unit -25°C to +25°C for Cold Chain
Specifications
Condenser :
Parallel Flow Condenser
Application Box Volume :
≤8 m3
Compressor Brand :
Dayin
Evaporator :
Inner grooved copper tube&aluminum Fin
Temperature Range :
-25°C To +25°C
Outside Temperature :
30°C To 50 °C
Cooling Capacity(-18℃) :
1530W
Compressor Mode :
5H14
Cooling Capacity(0℃) :
2530W
Compressor Displacement :
138 CC
Brand Name :
Yinhuasheng/OEM
Model Number :
X-38
Certification :
CE/ISO9001
Place of Origin :
China
MOQ :
1SET
Price :
Negotiable
Payment Terms :
TT/LC
Supply Ability :
1000 sets per month
Delivery Time :
Negotiable
Packaging Details :
Negotiable
Model :
X-38
Description
Transport Refrigeration Unit For Cold Chain X38
Product Specifications
Attribute Value
Model X-38
Condenser Parallel Flow Condenser
Temperature Range -25°C To +25°C
Cooling Capacity (0℃) 2530W
Cooling Capacity (-18℃) 1530W
Application Box Volume ≤8 m³
Outside Temperature 30°C To 50°C
Compressor Brand Dayin
Compressor Mode 5H14
Compressor Displacement 138 CC
Evaporator Inner grooved copper tube & aluminum Fin
Key Features
  • Eco-friendly refrigerant R404A (R134a system is also available)
  • Corrosion resistant and high strength FRP canning material
  • Aluminium fin parallel flow condenser, light and compact, with good heat exchanging
  • Inner grooved copper tube, with strong evaporator, with large airflow and good protection to the evaporator coils
  • Strong reliable and stable compressor for R404a systems specially
  • Digital display control panel, minimal operation
  • HP and LP switch safety protection
  • Large cooling capacity, reliable performance

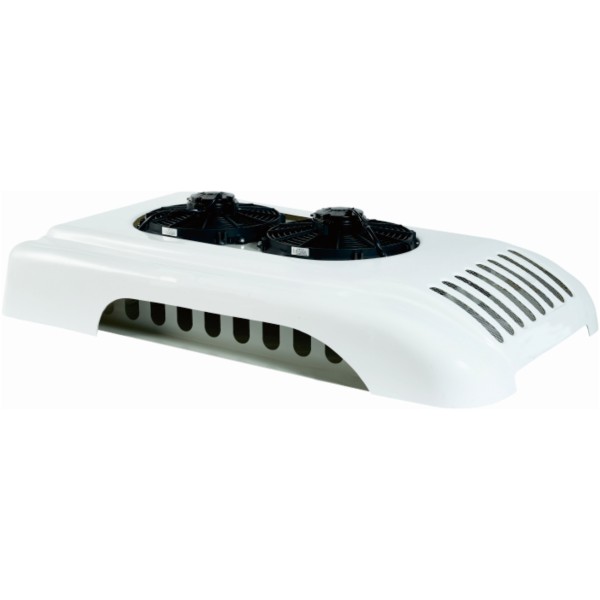

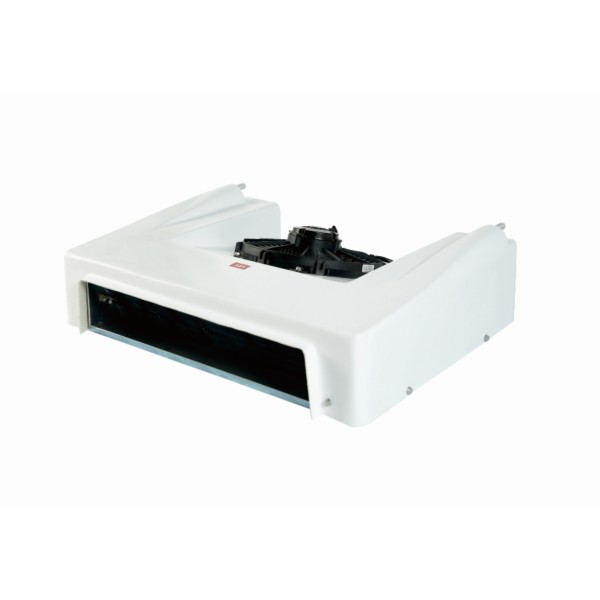

Product Images
Van Refrigeration Unit -25°C to +25°C for Cold Chain Van Refrigeration Unit -25°C to +25°C for Cold Chain
Technical Parameters
Parameter Value
Unit Model X-38
Applicable Temperature -25℃ ~ +25℃
Box Volume ≤8m³
Cooling Capacity (0℃) 2530 W
Cooling Capacity (-18℃) 1530 W
Compressor Model 5H14
Compressor Displacement 138 CC
Lubricating Oil PAG 68
Evaporator Material Inner grooved copper tube
Evaporator Fans 1 PCS
Condenser Material Parallel flow condenser
Condenser Fans 2 PCS
Refrigerant R404a
Refrigerant Charge 1.0KG
Box Temperature Adjustment Electronic digital display
Safety Protection High and low pressure switch
Defrosting Hot gas defrost automatically
Evaporator Weight 13 KG
Condenser Weight 27 KG
Evaporator Dimensions 780*580*210
Condenser Dimensions 1150*690*250
Drive Model Non-independent engine driven
