Top-mounted Van Refrigeration System with Direct Engine Drive Eco-friendly R404A and Large 21500W Cooling Capacity
Top-mounted Van Refrigeration System with Direct Engine Drive Eco-friendly R404A and Large 21500W Cooling Capacity
Top-mounted Van Refrigeration System with Direct Engine Drive Eco-friendly R404A and Large 21500W Cooling Capacity
Top-mounted Van Refrigeration System with Direct Engine Drive Eco-friendly R404A and Large 21500W Cooling Capacity
Specifications
Cooling Capacity :
1130W (-18℃), 21500W (0℃)
Temperature Range :
-25°C To +25°C
Compressor Mode :
5H14
Evaporator :
Inner grooved copper tube&aluminum Fin
Application Box Volume :
≤6 m3
Outside Temperature :
30°C To 50°C
Brand Name :
Yinhuasheng/OEM
Model Number :
X-28
Certification :
CE
Place of Origin :
China
MOQ :
1SET
Price :
Negotiable
Payment Terms :
TT/LC
Supply Ability :
1000 sets per month
Delivery Time :
Negotiable
Packaging Details :
Negotiable
Description
Van Refrigeration System Top-mounted
Product Overview

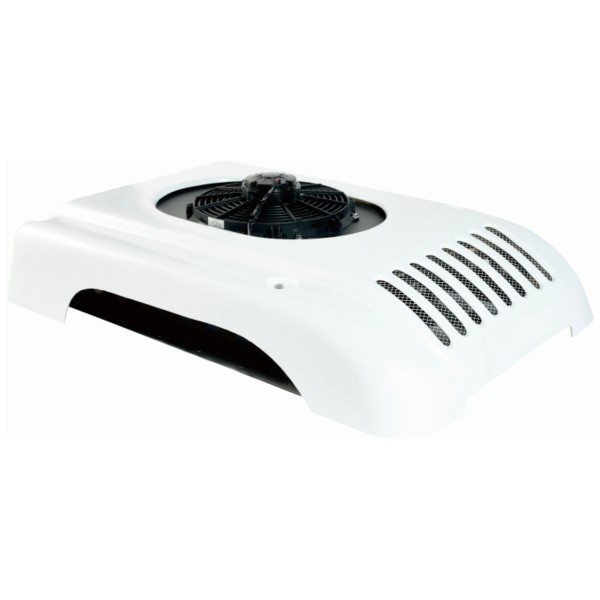

X-28 Van Refrigeration System top-mounted unit designed for reliable temperature control in refrigerated transport applications.

Key Features
  • Direct engine drive system
  • Specifically designed for 40m³ refrigerated trucks
  • Ideal for transporting chilled & frozen foods, medical supplies, fruits, vegetables, ice cubes, and seafood
  • OEM customization services available
  • Low operational and service costs
  • Easy installation process
  • Suitable for long-distance transportation
Technical Specifications
Parameter Specification
Unit Model X28
Applicable Temperature -25℃ ~ +25℃
Box Volume ≤6m³
Cooling Capacity (0℃) 2150 W
Cooling Capacity (-18℃) 1130 W
Compressor Model 5H14
Compressor CC 138 CC
Lubricating Oil PAG 68
Evaporator Material Inner grooved copper tube
Evaporator Fans 1 PCS
Condenser Material Parallel flow condenser
Condenser Fans 1 PCS
Refrigerant R404a
Refrigerant Charge 0.8KG
Temperature Control Electronic digital display
Safety Protection High and low pressure switch
Defrosting System Hot gas defrost automatically
Evaporator Weight 13 KG
Condenser Weight 21 KG
Evaporator Dimensions 780×580×210 mm
Condenser Dimensions 960×690×250 mm
Drive Model Non-independent engine driven
System Features
  • Eco-friendly refrigerant R404A (R134a system also available)
  • Corrosion resistant and high strength FRP canning material
  • Aluminium fin parallel flow condenser - lightweight, compact design with excellent heat exchange
  • Inner grooved copper tube evaporator with strong construction, large airflow, and superior coil protection
  • Strong, reliable, and stable compressor specifically designed for R404a systems
  • Digital display control panel for minimal operation
  • HP and LP switch safety protection
  • Large cooling capacity with reliable performance
