Direct Engine Drive Transport Refrigeration System for ≤18m³ Box Volume with Parallel Flow Condenser
Direct Engine Drive Transport Refrigeration System for ≤18m³ Box Volume with Parallel Flow Condenser
Direct Engine Drive Transport Refrigeration System for ≤18m³ Box Volume with Parallel Flow Condenser
Direct Engine Drive Transport Refrigeration System for ≤18m³ Box Volume with Parallel Flow Condenser
Specifications
Evaporator :
Inner grooved copper tube&aluminum Fin
Outside Temperature :
30°C To 50 °C
Refrigerant :
R404a
Application Box Volume :
≤18 m3
Evaporator Dimensions :
1010*640*250
Compressor Brand :
Dayin
Cooling Capacity :
4750W (0℃), 2130W (-18℃)
Condenser Dimensions :
1170*520*415
Cooling Capacity(-18℃) :
2130W
Compressor Mode :
5H14
Cooling Capacity(0℃) :
4750W
Compressor Displacement :
135 CC
Model :
HT-480
Temperature Range :
-25°C To +25°C
Brand Name :
Yinhuasheng/OEM
Model Number :
HT-480
Certification :
CE
Place of Origin :
China
MOQ :
1SET
Payment Terms :
TT/LC
Supply Ability :
1000 sets per month
Description
Transport Refrigeration System For Seafood Van With Box Volume ≤18m³
  • Direct engine drive
  • Driven by vehicle engine, designed for refrigerated trucks to deliver chill & frozen foods, medicals, fruits, vegetables, ice cube, seafood, etc.
  • OEM customized service available
  • Low operational cost and service cost
  • Easy installation
  • Suitable for long distance transportation
HT480 Transport Refrigeration System Features
  • Eco-friendly refrigerant R404A (R134a system also available)
  • Corrosion resistant and high strength FRP canning material
  • Aluminium fin parallel flow condenser, light and compact, with good heat exchanging
  • Inner grooved copper tube with strong evaporator, large airflow and good protection to evaporator coils
  • Strong reliable and stable compressor for R404a systems
  • Digital display control panel, minimal operation
  • HP and LP switch safety protection
  • Large cooling capacity, reliable performance

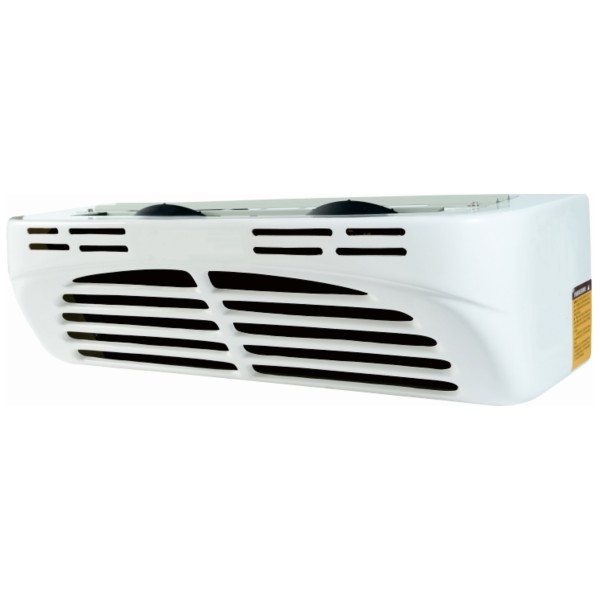

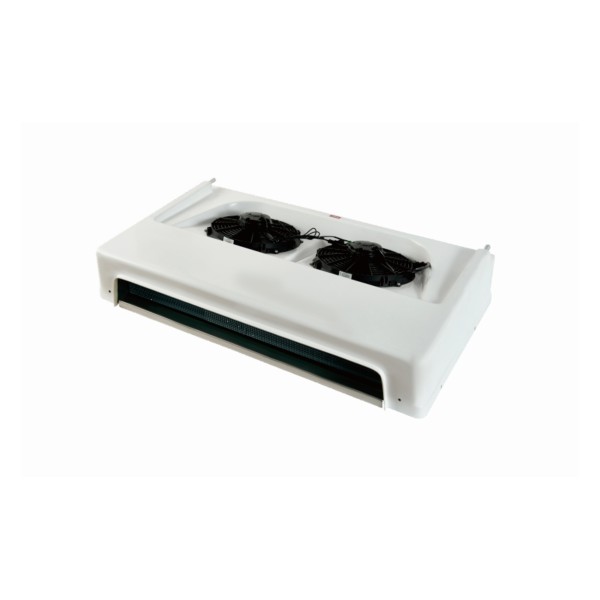

Product Images
Direct Engine Drive Transport Refrigeration System for ≤18m³ Box Volume with Parallel Flow Condenser Direct Engine Drive Transport Refrigeration System for ≤18m³ Box Volume with Parallel Flow Condenser Direct Engine Drive Transport Refrigeration System for ≤18m³ Box Volume with Parallel Flow Condenser
Technical Specifications
Unit Model HT-480
Applicable Temperature -25℃ ~ +25℃
Box Volume ≤18m³
Cooling Capacity 0℃: 4750 W
-18℃: 2130 W
Compressor Model: 5H14
CC: 135 CC
Lubricating Oil: PAG 68
Evaporator Material: Inner grooved copper tube
Number of Fans: 2 PCS
Condenser Material: Parallel flow condenser
Number of Fans: 2 PCS
Refrigerant R404a
Refrigerant Charge 1.4KG
Box Temperature Adjustment Electronic digital display
Safety Protection High and low pressure switch
Defrosting Hot gas defrost automatically
Weight/Dimensions Evaporator: 26 KG
Condenser: 35 KG
Evaporator: 1010*640*250 mm
Condenser: 1170*520*415 mm
Drive Model Non-independent engine driven
Note: 1. The applicable compartment volume is for reference only, and in actual application, it is related to the compartment volume, insulation performance, environmental temperature, and transported goods. 2. The compressor speed is 2000 rpm, and 12V/24V voltage can be selected according to requirements.
