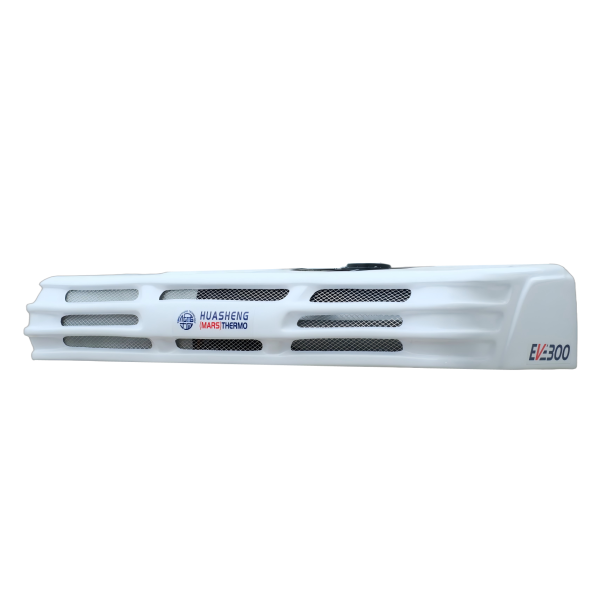

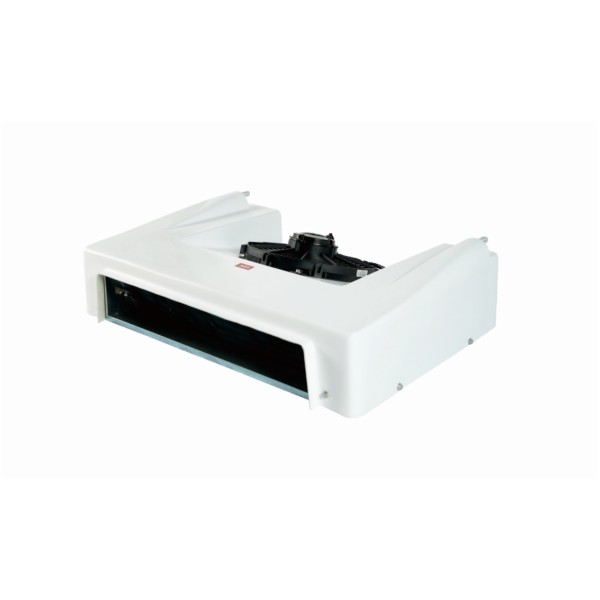

EV300 Vehicle Refrigeration Unit for Electric Trucks with ≤10 m³ Box Volume -25°C To +25°C Range and 2350W Cooling Capacity
EV300 Vehicle Refrigeration Unit for Electric Trucks with ≤10 m³ Box Volume -25°C To +25°C Range and 2350W Cooling Capacity
EV300 Vehicle Refrigeration Unit for Electric Trucks with ≤10 m³ Box Volume -25°C To +25°C Range and 2350W Cooling Capacity
EV300 Vehicle Refrigeration Unit for Electric Trucks with ≤10 m³ Box Volume -25°C To +25°C Range and 2350W Cooling Capacity
Specifications
Cooling Capacity(-18℃) :
1250W
Condenser Material :
Parallel Flow Condenser
Cooling Capacity(0℃) :
2350W
Condenser Fans :
1
Application Box Volume :
≤10 m³
Evaporator Material :
Inner grooved copper tube&aluminum Fin
Low Voltage Power :
DC-DC
Lubricating Oil :
PAG68
Evaporator Fans :
1
High Voltage :
DC250V-DC450V
Temperature Range :
-25°C To +25°C
Unit Model :
EV300
Brand Name :
Yinhuasheng/OEM
Model Number :
EV300
Certification :
CE
Place of Origin :
China
MOQ :
1SET
Price :
Negotiable
Payment Terms :
TT
Supply Ability :
50 sets per month
Delivery Time :
Negotiable
Packaging Details :
Negotiable
Description
EV300 Vehicle Refrigeration Unit for Full Electric Truck Box Volume ≤10 m³
Product Description
Powered by the vehicle battery, our EV-300 unit is specially designed for NEV full electric trucks. This refrigeration unit is widely used for reefer truck boxes up to 10m³ in size.
Yinhuasheng units are the preferred choice for customers seeking durability and reliability combined with low operational costs and handling charges.
Standard Features
  • Applicable for small and medium sized new energy vehicles
  • High grade (IP67) water-proof and insulation design, AC-DC interlock and four in one design
  • Ultra-slim fiberglass evaporator or Al-alloy evaporator, with big air flow
  • Fully enclosed electric compressor: high efficiency, eco-friendly, not affected by vehicle speed
  • The compressor is inbuilt inside the condenser unit, compact design
  • Multi-functional LCD controller, precise temperature control, full display and easy operation, with fault codes and alarms
  • No interference between charging and unit running, saving charging time and extending battery service life
  • HP and LP switch safety protection
  • Standard AC220V standby for parking cooling
Technical Parameters
Unit Model EV-300
Applicable Temperature -25℃ ~ +25℃
Box Volume ≤10m³
Cooling Capacity at 0℃ 2350 W
Cooling Capacity at -18℃ 1250 W
Compressor Model DDH356
Lubricating Oil PAG 68
Evaporator Material Inner grooved copper tube
Evaporator Fans 1 PCS
Condenser Material Parallel flow condenser
Condenser Fans 1 PCS
High Voltage DC250V-DC450V
Low Voltage Power DC-DC
Control Voltage DC12V(9-16V)
Refrigerant R404a
Refrigerant Charge 0.8 KG
Box Temperature Adjustment Electronic digital display
Safety Protection High and low pressure switch
Defrosting Hot gas defrost automatically
Evaporator Weight 13 KG
Condenser Weight <63 KG
Evaporator Dimensions 780*580*210
Condenser Dimensions 1280*510*300
Drive Model Full electric driven
Support and Services
We provide comprehensive technical support and service for all our Vehicle Refrigeration Unit products. Our experts are available to assist with installation, operation, and maintenance questions, as well as troubleshooting any issues you may encounter.
We offer multiple support options including online support, phone support, email support, and live chat support. Our knowledgeable staff provides quick answers and helpful advice.
All products come with a comprehensive warranty. We guarantee expected performance and will repair or replace any defective parts free of charge.
For any questions or assistance with our Vehicle Refrigeration Unit products, please contact us.
