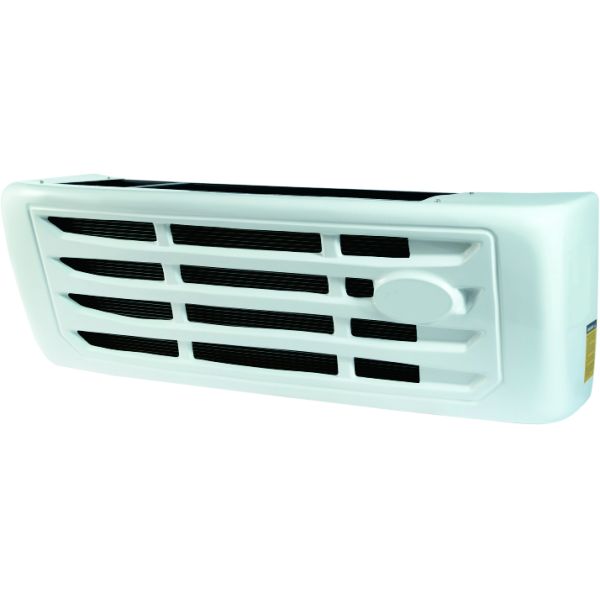

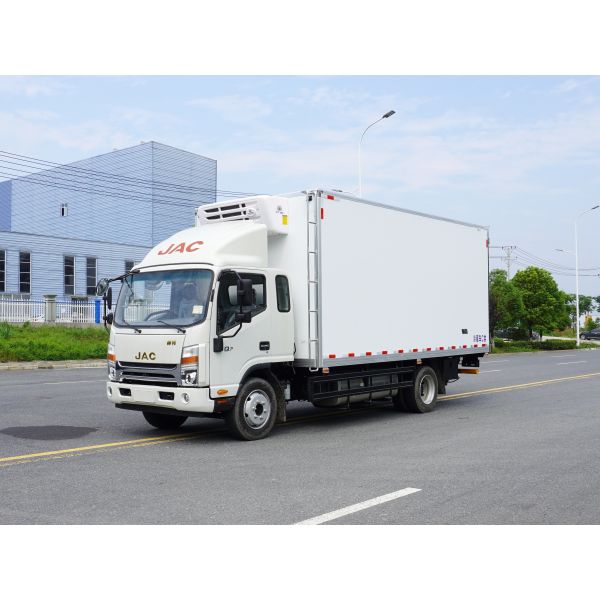

HT-680 Drive Refrigeration Unit for Trucks and Vans
HT-680 Drive Refrigeration Unit for Trucks and Vans
HT-680 Drive Refrigeration Unit for Trucks and Vans
HT-680 Drive Refrigeration Unit for Trucks and Vans
HT-680 Drive Refrigeration Unit for Trucks and Vans
HT-680 Drive Refrigeration Unit for Trucks and Vans
Specifications
Brand Name :
Yinhuasheng/OEM
Model Number :
HT-680
Certification :
CE
Place of Origin :
China
MOQ :
1SET
Price :
Negotiable
Payment Terms :
TT/LC
Supply Ability :
1000 sets per month
Delivery Time :
Negotiable
Packaging Details :
Negotiable
Temperature Range :
-25°C To +25°C
Cooling Capacity(0℃) :
6100W
Cooling Capacity(-18℃) :
3130W
Application Box Volume :
≤27 m3
Outside Temperature :
30°C To 50 °C
Compressor Brand :
Guangyu
Compressor Mode :
GY17
Compressor Displacement :
163 CC
Condenser :
Parallel Flow Condenser
Evaporator :
Inner grooved copper tube&aluminum Fin
Description

HT680 Direct Drive Refrigeration Unit Truck
The HT680 Direct Drive Refrigeration Unit is a highly efficient and reliable refrigeration system designed for use in trucks and vans. It features a direct drive motor and external rotor, providing a low noise level of ≤55dB(A) and operates on 220V/50Hz power supply.
Key Features:
  • Direct drive motor with external rotor design
  • Low noise operation ≤55dB(A)
  • Comprehensive protection systems (high/low pressure, overload, overheat)
  • Electronic digital display for temperature adjustment
  • Hot gas automatic defrost system
  • CE certified with 1-year warranty
Technical Specifications
Unit Model HT-680
Applicable Temperature -25℃ ~ +25℃
Box Volume ≤27m³
Cooling Capacity (0℃) 6100 W
Cooling Capacity (-18℃) 3130 W
Compressor Model GY21
Compressor CC 209 CC
Lubricating Oil PAG 68
Evaporator Material Inner grooved copper tube
Evaporator Fans 3 PCS
Condenser Material Parallel flow condenser
Condenser Fans 2 PCS
Refrigerant R404a
Refrigerant Charge 2.7KG
Drive Model Non-independent engine driven
Evaporator Weight 31 KG
Condenser Weight 49 KG
Evaporator Dimensions 1240*610*270
Condenser Dimensions 1480*500*510
HT-680 Drive Refrigeration Unit for Trucks and VansHT-680 Drive Refrigeration Unit for Trucks and Vans
Frequently Asked Questions
What is the brand name of the Direct Drive Refrigeration Unit?
The brand name of the Direct Drive Refrigeration Unit is YINHUASHENG.
Where is the Direct Drive Refrigeration Unit manufactured?
The Direct Drive Refrigeration Unit is manufactured in CHINA.
Does the Direct Drive Refrigeration Unit have a CE certification?
Yes, the Direct Drive Refrigeration Unit has a CE certification.
What is the minimum order quantity for the Direct Drive Refrigeration Unit?
The minimum order quantity for the Direct Drive Refrigeration Unit is 1 piece.
Is the price of the Direct Drive Refrigeration Unit negotiable?
Yes, the price of the Direct Drive Refrigeration Unit is negotiable.
